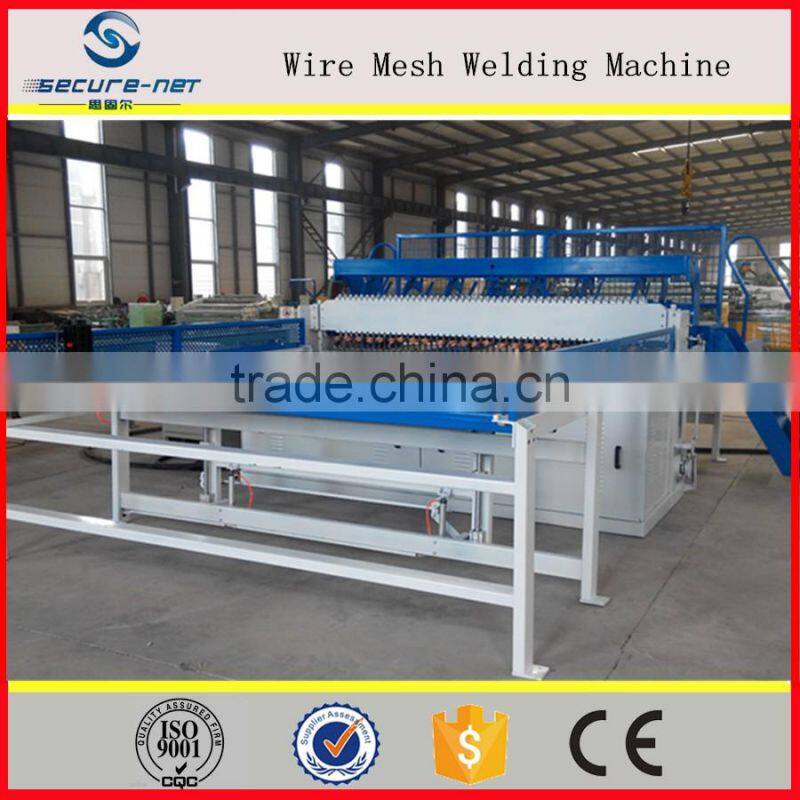

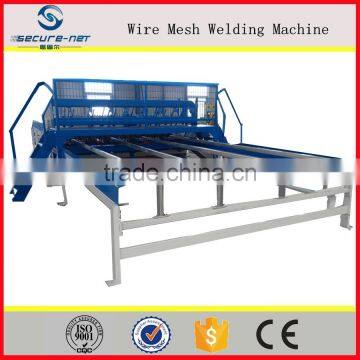

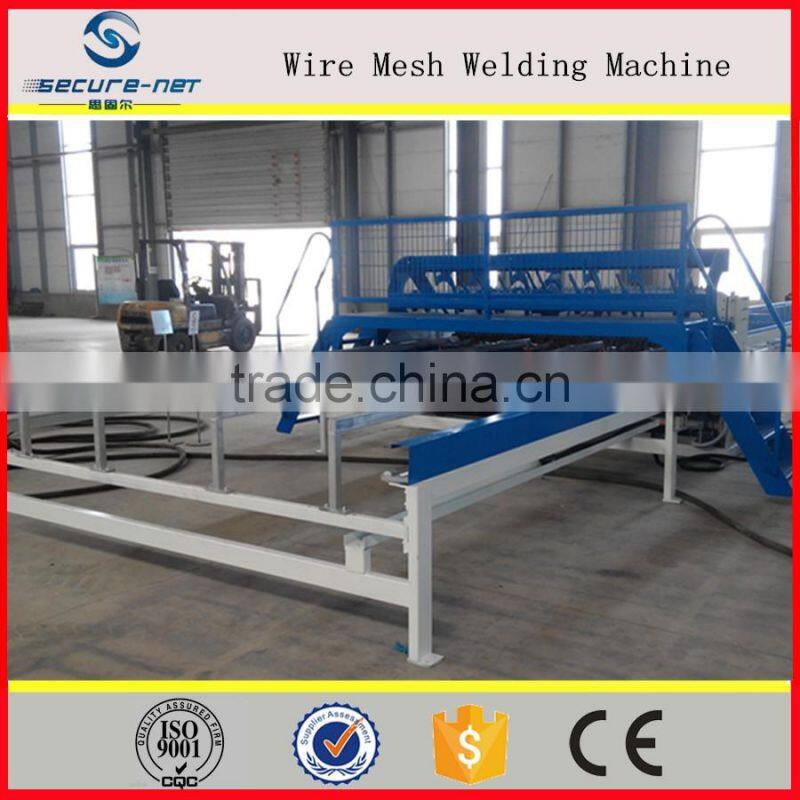

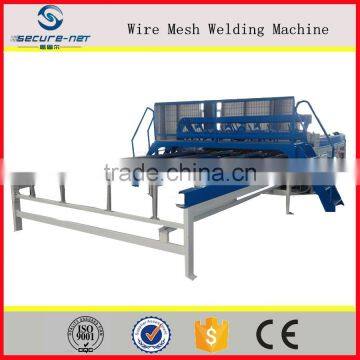

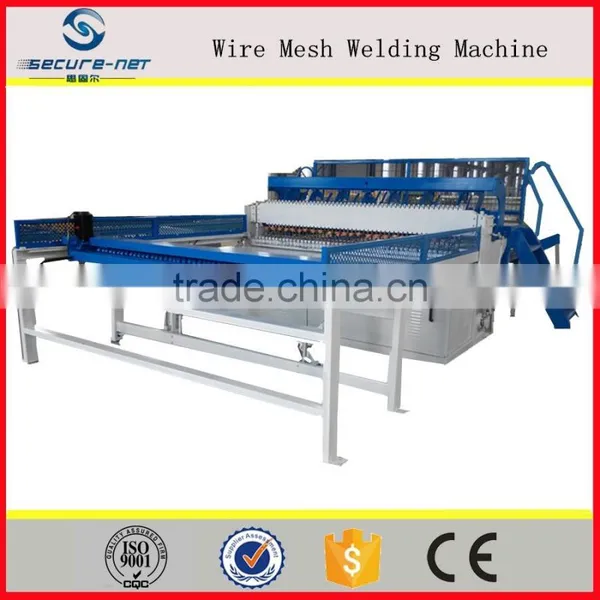

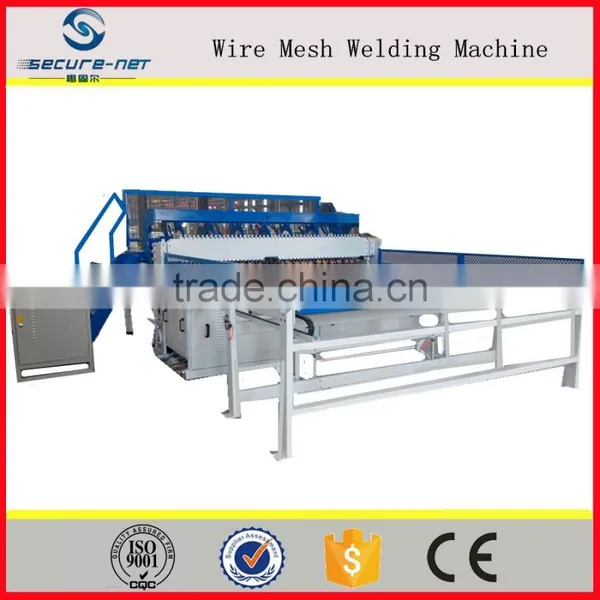

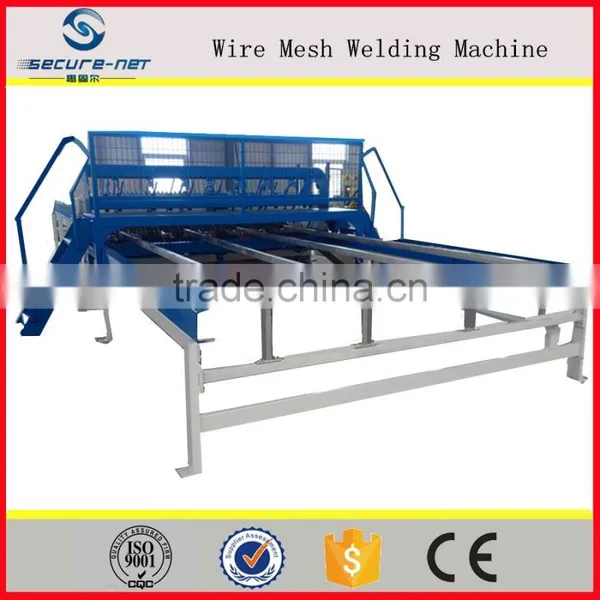

Secure-Net New Automatic 2.5-5.0mm Wire Welding Machine

Secure-Net New Automatic 2.5-5.0mm Wire Welding Machine

Can you tell me the some parameters?

1.Wire diameter?

2.Welding aperture?

3.Width of mesh?

4.Rated voltage?

The main parameter
Wire diameter:2.5-5mm
Welding aperture:50*50-300*300mm
Welding width:2500mm
Number of electrodes:48
Rated voltage:AC380V 50HZ(Customized)
Rated power:800KVA
Welding speed:0-60times/min
Machine weight:4.5T
Overall dimension:12*3.3*1.9m(Customized)

Product description:

1.This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.
2.The machine can press the panel tightly once , and weld by several times .On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
3.The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
4.The mesh panel pulling part and the hopper is controled by the 16N stepper motor,and the steeper is working through the stepper motor drives.
5.Electrodes, the lower seat and copper platoon is copper material,and the electrode block is chromium zirconium copper material.
6.Wear silk part wear silk by bell mouth, make artificial device more simple, convenient, equipped with dovetail positioning device, effectively reduces the error of the diagonal mesh.
7.There are six sets of transformer, each transformer has eight levels, to expand the scope of welding wire diameter.

Auxiliary equipment

Straightening cutting machine( To force before and after)

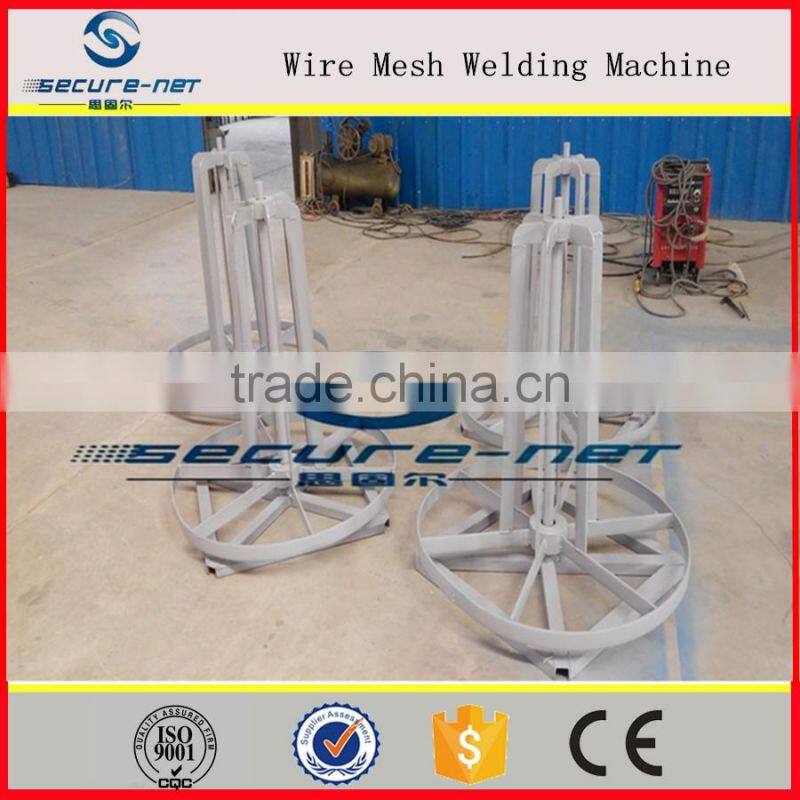

Wire feeding plate( Steel can be put on 600-700 kg)

The machine parts

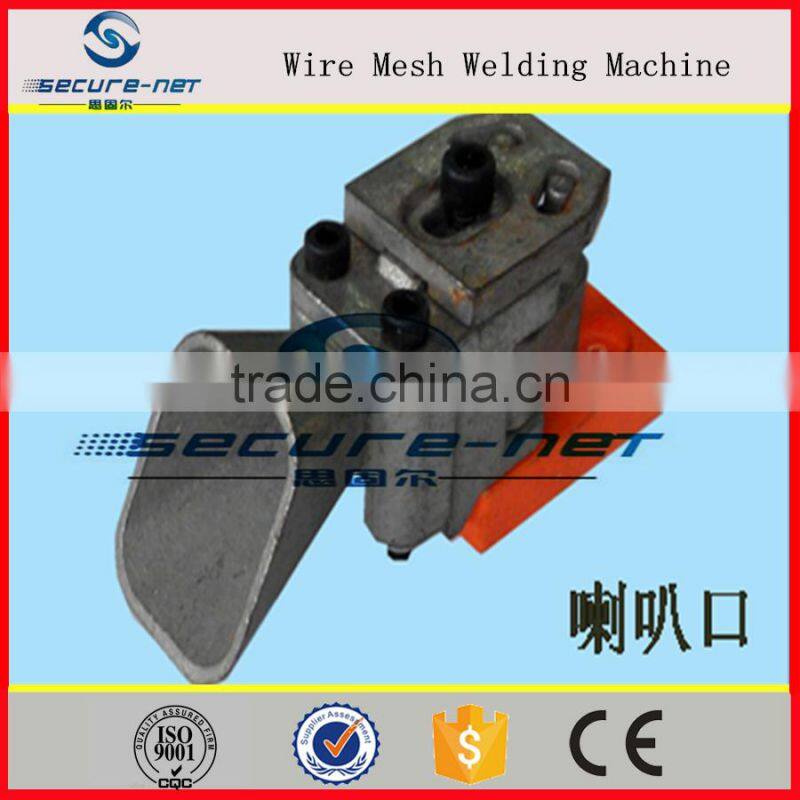

Bell mouth(reduced the error of the dagonal)

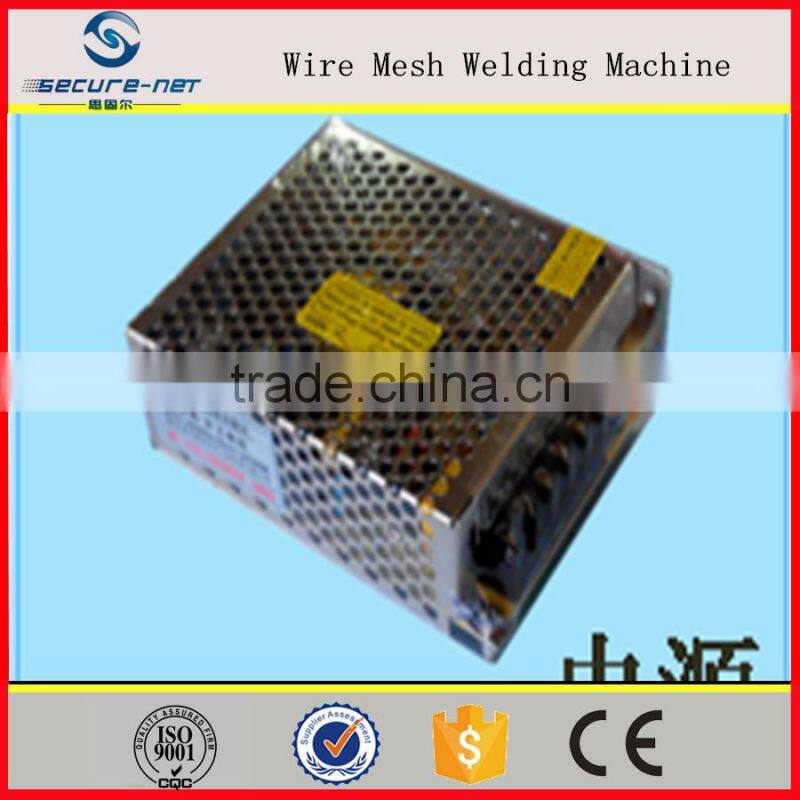

 power supply(thr power of the 24 for touch screen)

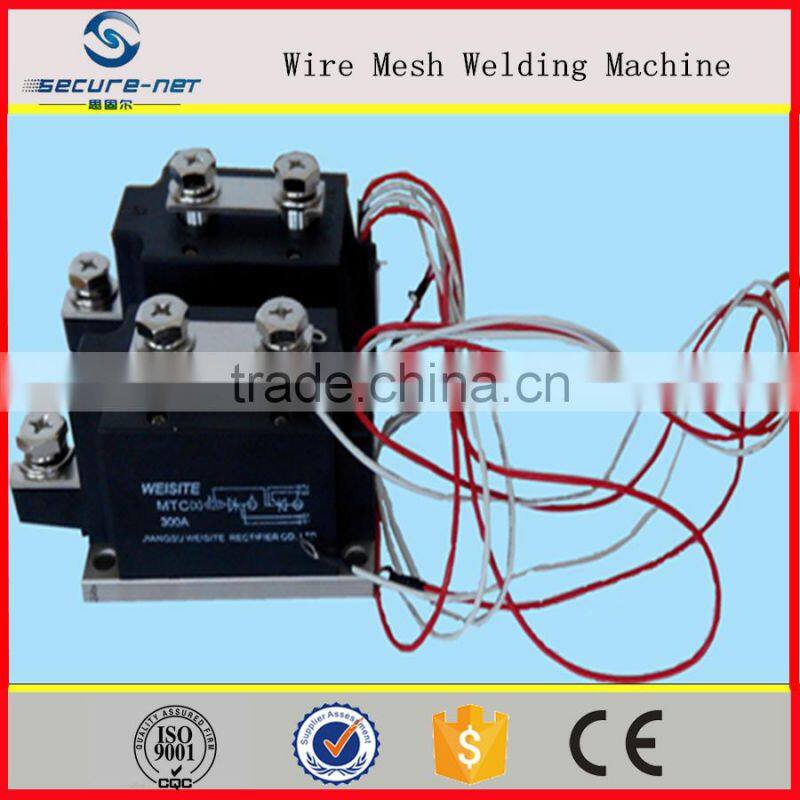

Silicon controlled rectifier

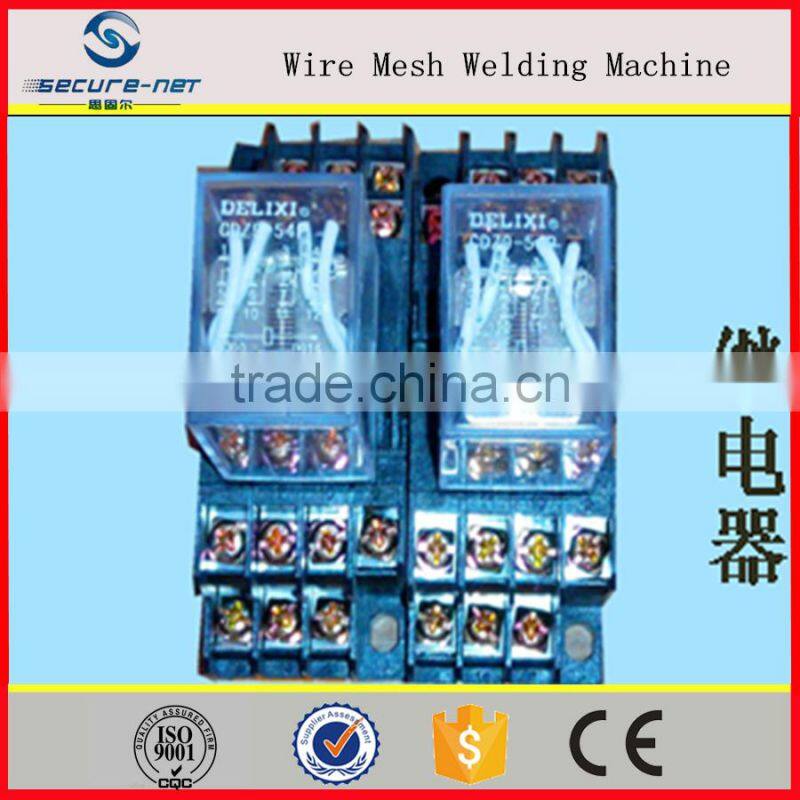

relay( Through the low pressure control of high voltage ac contactor)

Can you tell me the specail requirements about your machine?We can satisfy your any requirements!

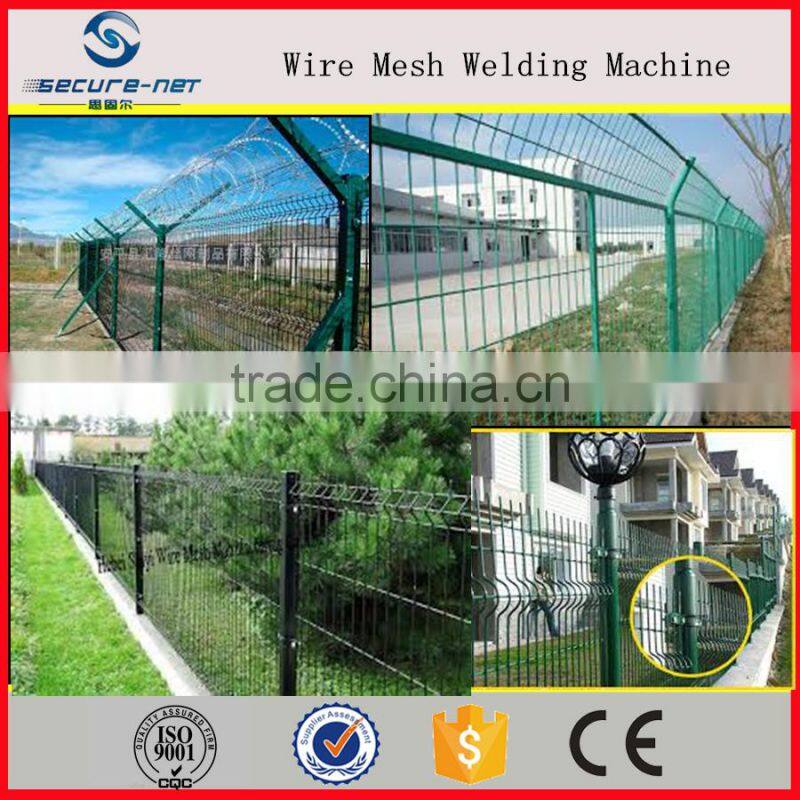

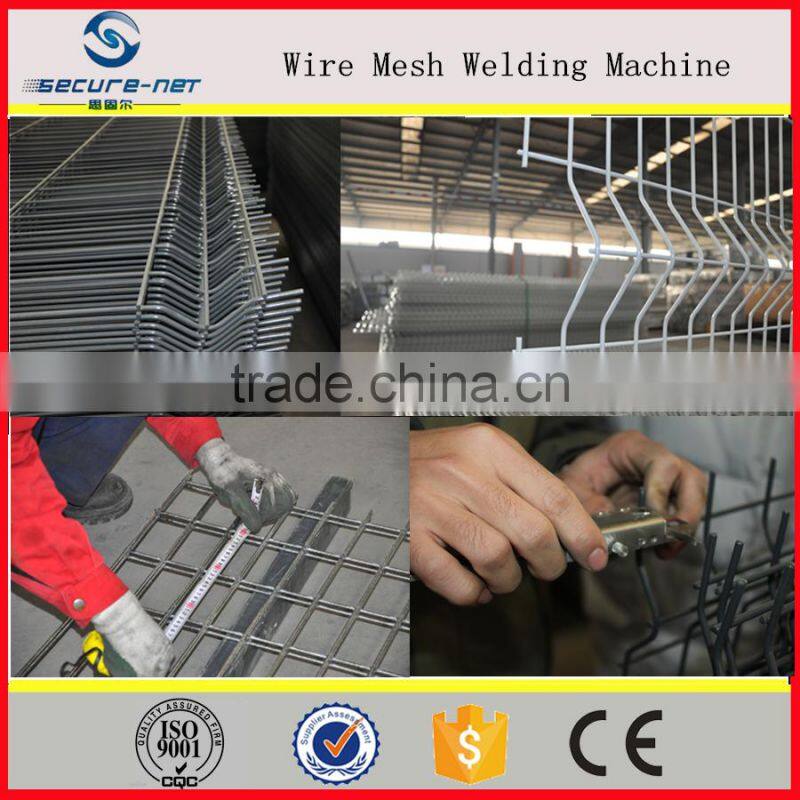

Production of the mesh

Wire mesh panel for fence and casing buling roof.

FAQ

1. We have our own factory, so you can visit the factory any time to oversee the quality, or we can give you  the working video of the work.

2.Our engineer can also go to your country to help you install and train works for you.

Any furter and detail information please feel free to contact me.

Waitting for you contacting me!

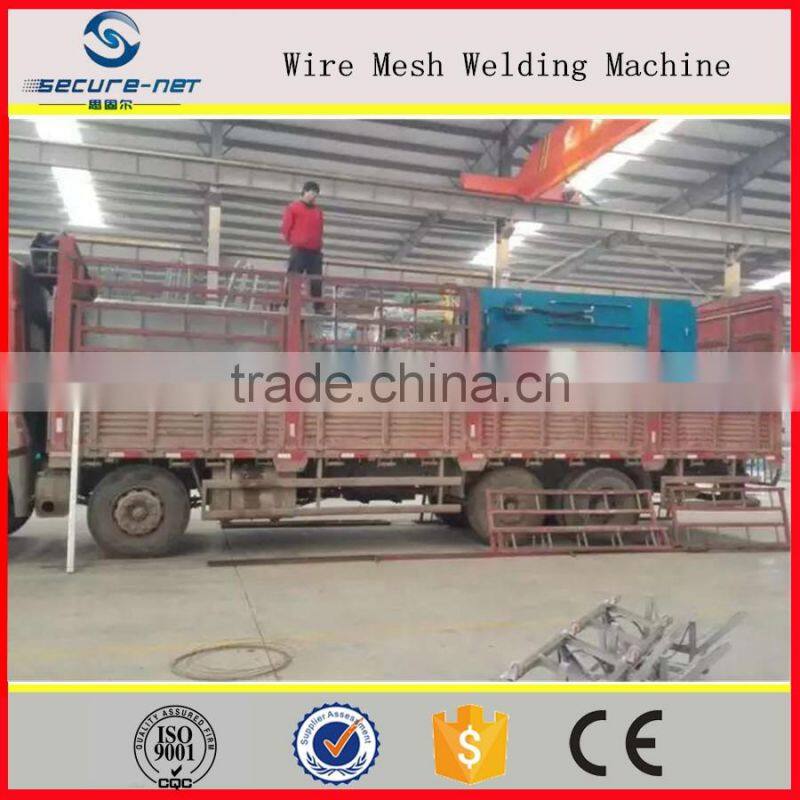

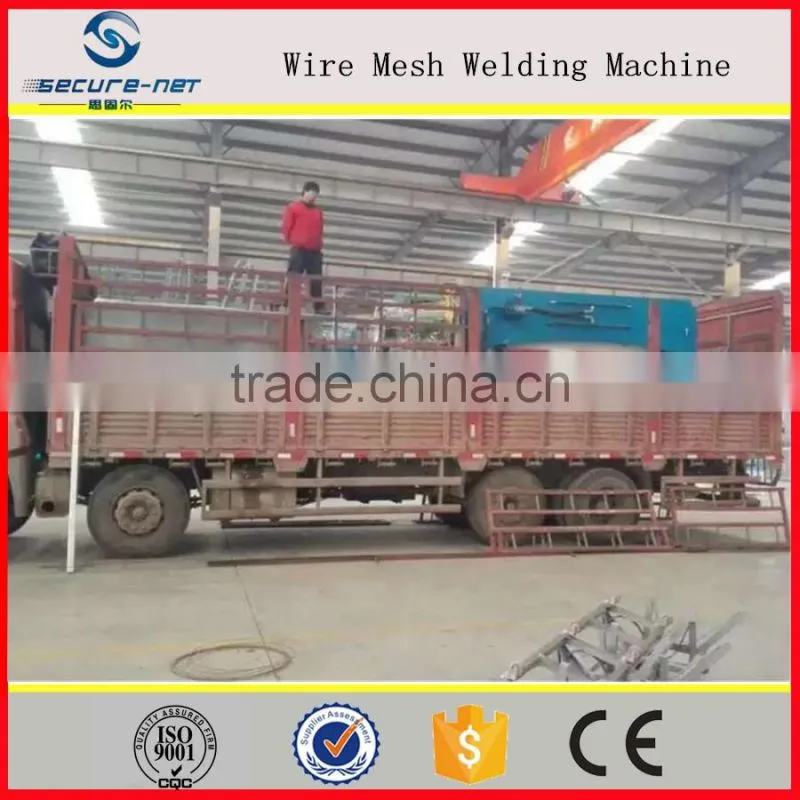

Packing and shipping

Host with plastic film packaging, numerical control cabinet packed in wooden cases

    Hebei Secure-Net Fence Facility Co., Ltd.

∞Hebei Secure-Nett Fence Facility Co.,Ltd.founded in 2000,is located in Anping,famous as production base of wire mesh in China.

∞Now Secure-net has developed into an integrated entity with R&D,manufacturing and trading.

∞Main production of Secure-net are welding wire mesh machine,welded wire mesh machine,china link fence machine,barbed wire mesh machine,gabion mesh machine.
