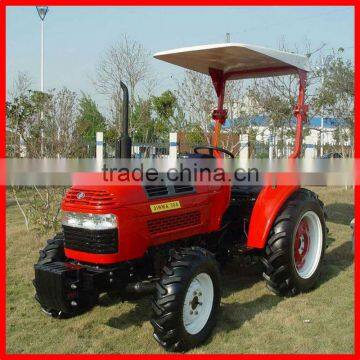

Jinma 304 Tractor With EPA Certificate

Jinma 304 Tractor With EPA Certificate thumbnail-1
Jinma 304 Tractor With EPA Certificate photo-1
US$ 3,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Wheel Tractor, 3-cylinder, Vertical water-cooled, 4 stroke cycle
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Wheel Tractor, 3-cylinder, Vertical water-cooled, 4 stroke cycle
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 22.1KW
Certificate EPA
Brand Name Jinma
Model Number Jinma 304
After-sales Service Provided Overseas third-party support available

Specifications

Jinma 304 tractor with EPA certificate
For low mine usage
Excellent performance;
High efficiency;
Good after-sales service;

Jinma 304 tractor with EPA  certificate



Specification of  Jinma 304 tractor with EPA certificate



Tracor Parameters

Model

JM-304

Drive Type

4WD

Overall Dimensions L*W*H(mm):

3230x1435x1985

WheelTrack(mm)

Front

1200

Rear

1150-1450

Wheel Base(mm)

1833.5

Ground Clearance (mm)

292

Rated Traction Force(N)

6400

Construction Mass(kg)

1780

Min.Turning Radius(m)

4.2

Theoretical Speed (With out creeper gear(km/h)

Forward

2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867

Reverse

2.861,13.2

Engine Specifications

Model

TY395

Type

3-cylinder, Vertical water-cooled, 4 stroke cycle

Rated Power(kw/hp)

22.1/30

Rated Speed (rpm)

2200

Bore*Stroke(mm)

95*105

Total Displacement(L)

2.23

Drive System

Clutch

Dual stage

Gear Box

(4+1)*2

Main Drive

One Pair of Spiral Bevel Gearing

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmissions

Spur Gear,External,Gearing

Travelling Mechanism

Tyre

Front

7.5-16

Rear

11.2-24

Steering Gear

Power Steering

Brake

Disc type

Working Device

Hydraulic System

Lifting Capacity at 610mm Behind Lift Pioint (N)

4900

3-Point Suspension

Category:I

P.T.O Shaft

Speed (rpm)

540/720 or 540/1000

Spline Size

6-35Rectangular Spline
OPTIONS ROLL BAR,CANOPY,CAB

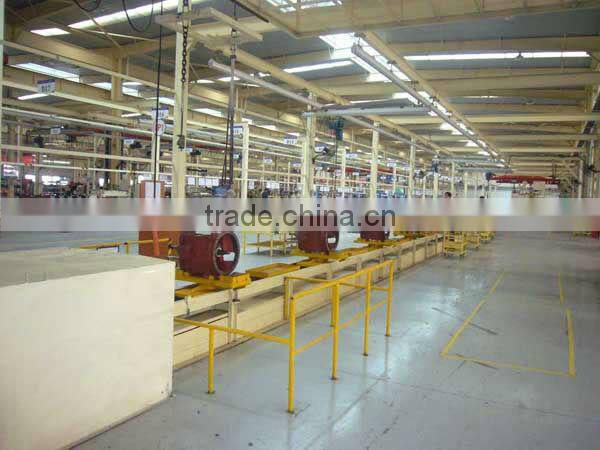

 The factory of  Jinma 304 tractor with EPA certificate



Jinma 304 tractor with EPA certificateJinma 304 tractor with EPA certificateJinma 304 tractor with EPA certificate

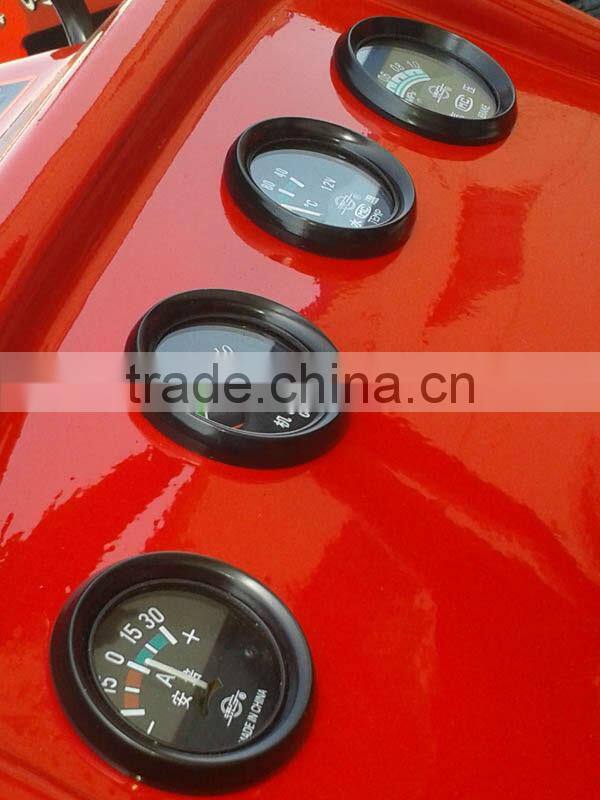

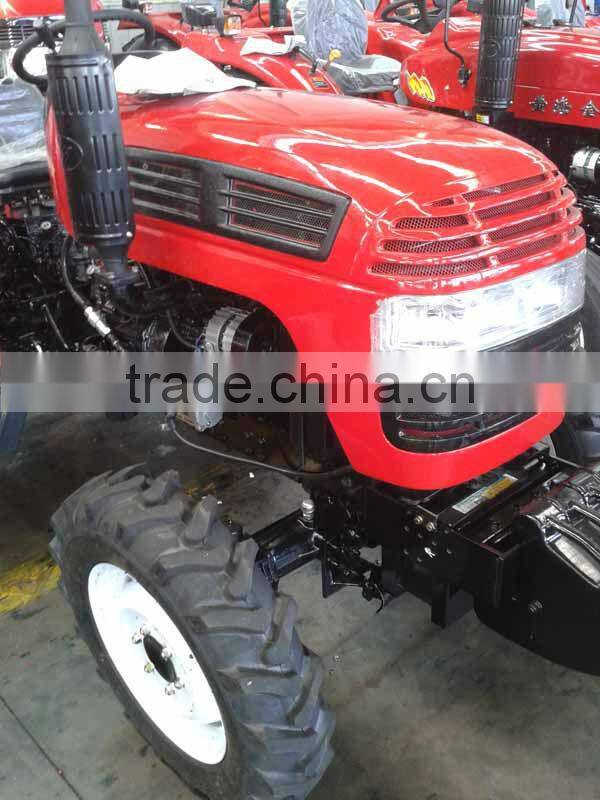

The details of  Jinma 304 tractor with EPA certificate



Jinma 304 tractor with EPA certificateJinma 304 tractor with EPA certificateJinma 304 tractor with EPA certificateJinma 304 tractor with EPA certificate





If you want to know more information,please send us Email.
