Jinma 654 65hp agricultural tractorHigh quality low price
Easy to operate and maintain
Low emission
Good after-sale service
Jinma 654 65hp agricultural tractor
The Jinma 654 65hp agricultural tractor is Equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage.
Details of Jinma 654 65hp agricultural tractor in chart
Specification | |||
Tractor parameters | Model | JM654 | |
Drive type | 4WD | ||
Overall dimensions( L*W*H ) | 4010*1929*2568 | ||
Wheel track(mm) | front | 1350-1650 | |
rear | 1370-1790 | ||
Wheel bass(mm) | 2236 | ||
Ground clearance(mm) | 340 | ||
Rated traction force(N) | 14000 | ||
Construction mass(kg) | 3190 | ||
Min.turning radius(m) | 4.3 | ||
Engine | Model | 4cylinder | |
Type(EPA) | 4cylinder engine, water cooled | ||
Rated power(km/hp) | 47.8(65) | ||
Rated speed(rpm) | 2200 | ||
Drive system | Clutch | Dual-stage or single | |
Gear box | (4+1)*2 | ||
Main drive | one pair of spiral bevel gearing | ||
Differential | Bevel gear | ||
Differential lock | Sliding pin, foot operated | ||
Final transmission | Planetary reduction gear | ||
Traveling mechanism | Type | front | 8.3-24 |
rear | 12.4-32 | ||
Steering gear | Hydraulic(power) steering | ||
Brake | Oil immersed | ||
Working device | Hydraulic system | Lifting capacity at 610mm(N) | 10800 |
3-point suspension | Category:2 | ||
P.T.O shaft | Rotating speed(rpm) | 720 or 540/1000 | |
Spline size | 6 @ 35 Rectangular spline | ||

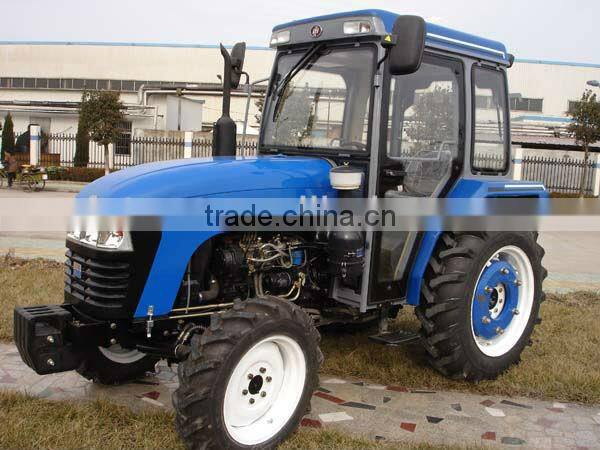

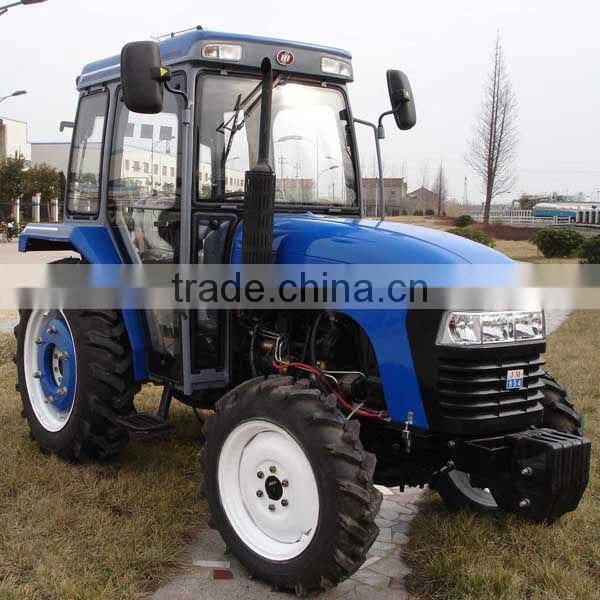

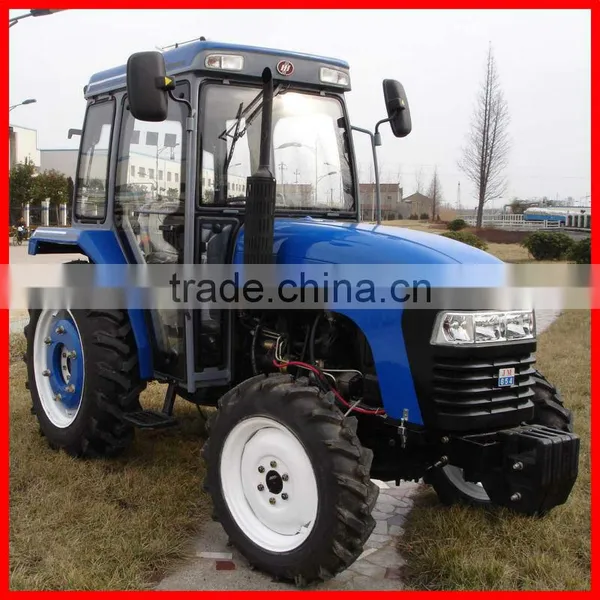

Related pictures of Jinma 654 65hp agricultural tractor
