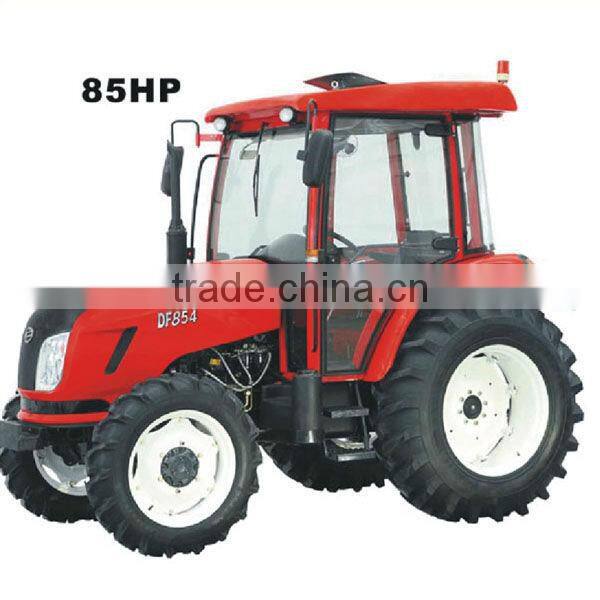

DF854 Agricultural Tractor

DF854 Agricultural Tractor thumbnail-1
DF854 Agricultural Tractor photo-1
US$ 3,000 - 150,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 63KW/85hp
Certificate CE
Brand Name Dongfeng
Model Number DF854
Place of Origin Jiangsu, China
After-sales Service Provided Overseas third-party support available

Specifications

DF854 agricultural tractor
Low fuel consumption and noise;
Powerful engine
Good quality with low price
Excellent performance

DF854 agricultural tractor:

Specification for DF854 agricultural tractor:



Tractor
Parameters

Model

DF-854

Drive Type

4WD

Overall Dimensions
L*W*H(mm)

4240*2050*2810

Wheel Track(mm)

Front

1610

Rear

1620-2020(1620)

Wheel Base(mm)

2362

Ground
Clearance(mm)

Under Front Axle

379

Rated Traction
Force(N)

18600/19200

Construction Mass(Kg)

3575

Min. Turning Radius(m)

4.1

Theoretical
Speed(km/h)

Forward

2.30,3.60,5.80,8.00,10.0,15.6,25.0,34.9

Reverse

3.10,4.80,7.70,10.80

Engine
Specifications

Model

LRC4108T/4MC-T

Type

4-cylinder,Upright inline cylinder
radiator cooling,4-storke cycle, direct-injection

Rated Power(Kw/hp)

59.0/80.0,62.5/85.0

Rated Fuel Consumption(g/kw/h)

<242

Rated Speed(rpm)

2300

Bore*Stroke(mm)

108*135/110*135

Total Displacement(L)

4.94/5.13

Drive
System

Clutch

Dry Independent type dual Function clutch

Gear Box

4*(2+1)*2

Main Drive

One Pair of Spiral Bevel Gear

Differential

Obturation, four bevel gears

Differential Lock

Mesh gear

Final Transmissions

Planetary reduction gear

Travelling
Mechanism

Tyre

front

11.2-24

rear

13.6-38,16.9-34

Steering Gear

Hydraulic steering

Brake

Oil immersed multi-plate disc

Working
Device

Hydraulic
System

Lifting Capacity at
610 mm Behind Lift
Point(Kg)

1600

3-point Suspension

Category: II

P.T.O. Shaft

Rotating
Speed(rpm)

540/1000

Spline size

6-35 Rectangular spline

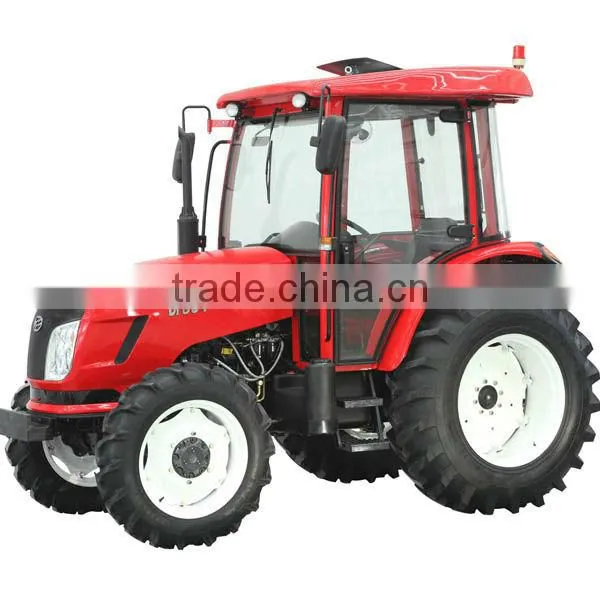

Other photos of DF854 agricultural tractor:

 DF854 Agricultural Tractor



Other DF agricultural tractor models we can supply:

DF854 Agricultural Tractor

DF254

Model   DF-254

Drive Type   4WD

Overall Dimensions L*W*H(mm)   2800*1350*1460

Wheel Track(mm)  984/1020,1120,1220,1320

Ground Clearance(mm) Under Front Axle   292

Ground Clearance(mm) Under Rear Axle   290

Construction Mass(Kg)  1190

Min. Turning Radius(m)  2.40

Theoretical Speed(Km/h) Forward   1.11,1.29,2.90,5.06,5.75,9.26,15.02,26.20

Theoretical Speed(Km/h) Reverse  1.44,7.45

Engine Specifications:

Model   Y385T

Type   3-cylinder,Upright inline cylinder,4-storke cycle

12-hour Rated Power(Kw/hp)  18.4/25.0

Rated Speed(rpm)  2350

Bore*Stroke(mm)  85*90

Total Displacement(L)  1.532

 DF854 Agricultural Tractor

DF804





If you are interested in above tractor model or more details of other tractor models, please do not hesitate to contact us.

.
