Jinma 604 60hp Agricultural Tractor

Jinma 604 60hp Agricultural Tractor thumbnail-1
Jinma 604 60hp Agricultural Tractor photo-1
US$ 3,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 44.1kw
Certificate EPA
Brand Name Jinma
Model Number Jinma 604
After-sales Service Provided Overseas third-party support available

Specifications

Jinma 604 60hp agricultural tractor
High quality low price
Easy to operate and maintain
Low emission
Good after-sale service

 Jinma 604 60hp agricultural tractor
       The Jinma 604 60hp agricultural tractor is Equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage.



Details of  Jinma 604 60hp agricultural tractor in chart












Specification
Tractor parameters
Model
JM624/JM-604
Drive type
4WD
Overall dimensions( L*W*H )

4010*1845*1645
Wheel track(mm)
  front
1300
  rear
1315-1615
Wheel bass(mm)
2073/2060
Ground clearance(mm)
370
Rated traction force(N)
14700
Construction mass(kg)
2198
Min.turning radius(m)
3.9
Engine
Model
4cylinder
Type(EPA)
4cylinder engine,
 water cooled
Rated power(km/hp)
44.1/60
Rated speed(rpm)
2300
Drive system
Clutch
Dual-stage or single
Gear box
(4+1)*2
Main drive
one pair of spiral bevel gearing
Differential
Bevel gear
Differential lock
Sliding pin, foot operated
Final transmission
Planetary reduction gear
Traveling mechanism
Type
   front
8.3-24
   rear
13.6-28
Steering gear
Hydraulic(power) steering
Brake
Oil immersed
Working device
Hydraulic system
Lifting capacity at 610mm(N)
9900
3-point suspension
Category:2
P.T.O  shaft
Rotating speed(rpm)
540/720 or 540/1000
Spline size
6 @ 35 Rectangular spline

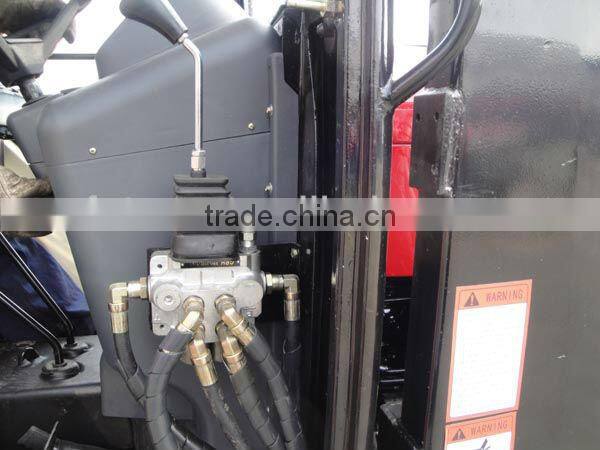

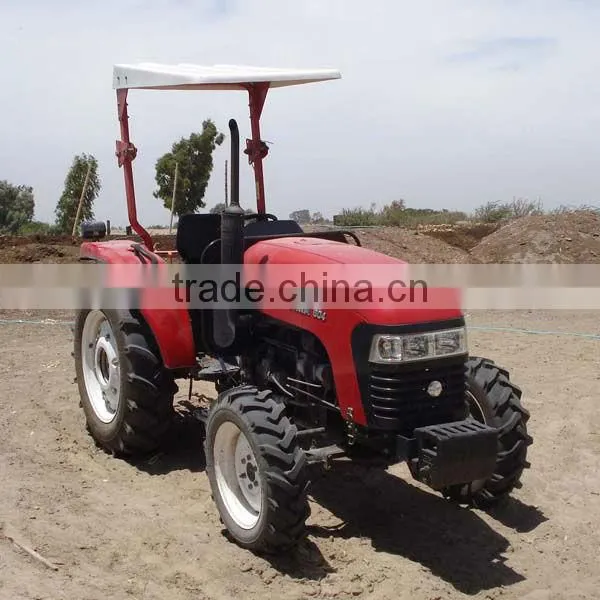

 Related pictures of  Jinma 604 60hp agricultural tractor



Jinma 604 60hp agricultural tractorJinma 604 60hp agricultural tractor





If you want to know more information, please send e-mail to us.
