20-440hp Farm Tractor Price List

Iron crate or nude

Specifications

20-440hp Farm Tractor Price List;
Low noise;
Convenient control;
Low fuel consumption and noise
Good quality with low price.

20-440hp Farm Tractor Price List

  The YTO-554 tractor is equipped with wet disc brakes, ensuring desirable braking performance and high reliability. It adopts the planetary end transmission and double action clutches. It is applicable to paddy fields and dry farmlands. It adopts the engagement sleeve gear shifting and force and position combined regulation. It is large in wheel span and axle base, heavy in dead load, and desirable in chassis stability. Besides, it is equipped with safety anti-toppling shelf for optional assemblage.

Model	YTO-554
Diesel engine
Model	YT4A2-22
Type	Four cylinder, vertical, water cooled, four stroke
Displacement (L)	4.15
Rated power / speed (Kw) / (r/min)	40.4 / 2200
Max. torque (N.m) / speed (r/min)	214 / 1650
Bore x stroke (mm)	105 x 120
Transmission
Gear shift, forward / backward	8 / 4
Speed range (Km/h), forward / backward	2.47-32.38 / 3.66-11.18
PTO power (Kw)	36.7
PTO rotation speed (r/min)	540 / 720 or 540/ 1000
Clutch	11-inch, dry, double action
Implement
Three-point linkage category	Rear three-point linkage I
Tilling depth control mode	Combined draft, position control and floating control
Lifting force (KN)	9
Options
Cab	Frame construction, streamlined shape, with fan; air conditioning system is optional.
Transmission with shuttle-type gear	4x2x2
Transmission with creeper gear	4x(2+1)x2
Luxury integral panel	All-in-one instrument panel, glass guard plate
Hydraulic output	1 or 2 group
Adjustment mode, rear wheel	Stepless adjustment
Dimensions, mass, drive
Drive type	4x4
Overall dimensions (LxWxH) (mm)	3910x1745x2565
Wheelbase (mm)	2127
Min. ground clearance (mm)	350
Min. operating mass (with safety stand) (Kg)	2380
Tyre spec. front / rear	8.3-20 / 13.6-28
Wheel tread, front / rear	1250 / 1300, 1400, 1500, 1600
Steering	Full hydraulic
Brake	Disk type, mechanical

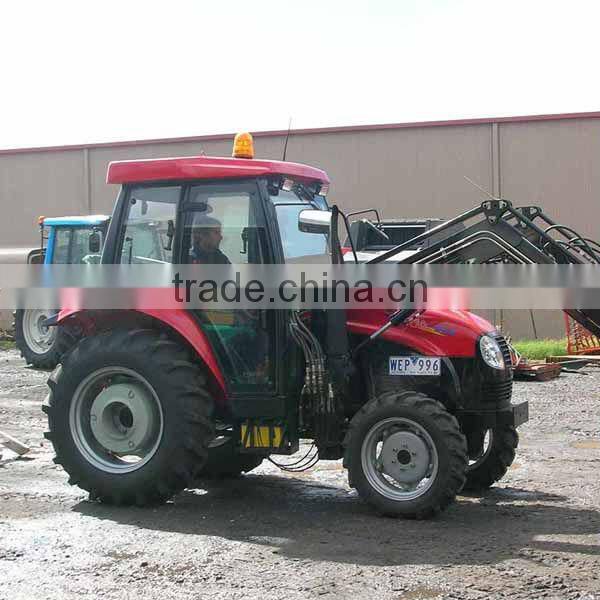

Photo for   The YTO-554 tractor :

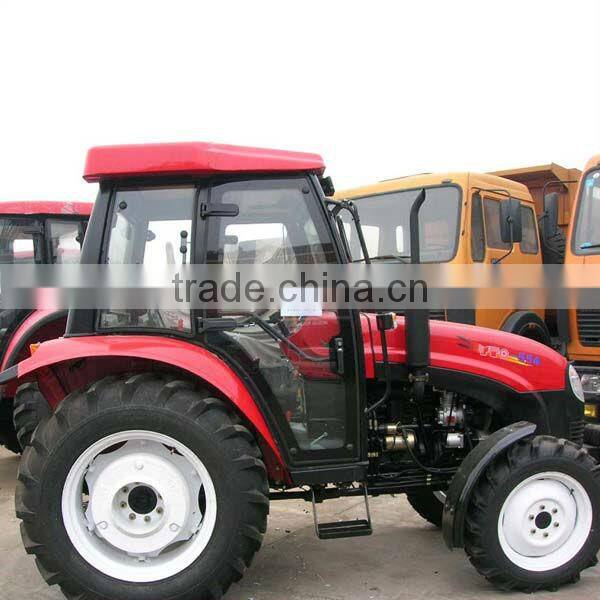

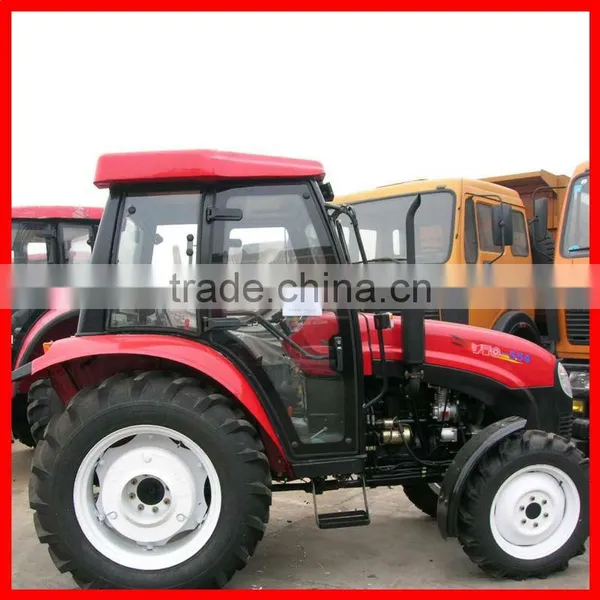

  YTO-554 with cabin

Other tractor models we can supply:

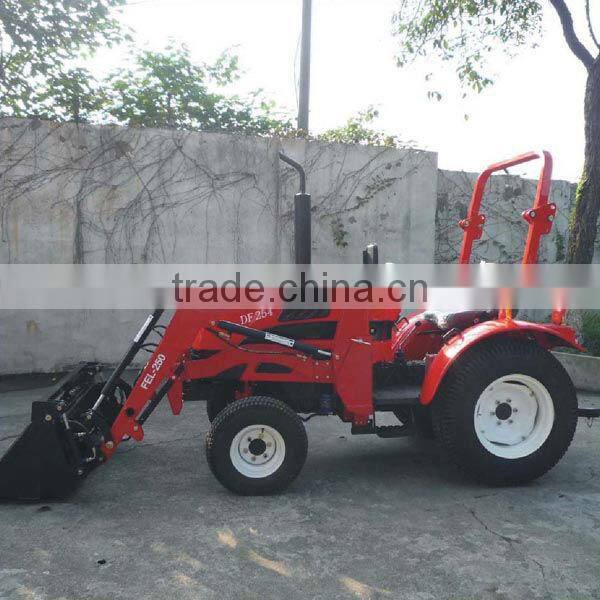

                               DF254 Tractor with turf tire and front loader



                                                                    DF Tractor with turf tire





               FT500 Tractor

















If you are interested in above models, please do not hesitate to send E-mail to us.
