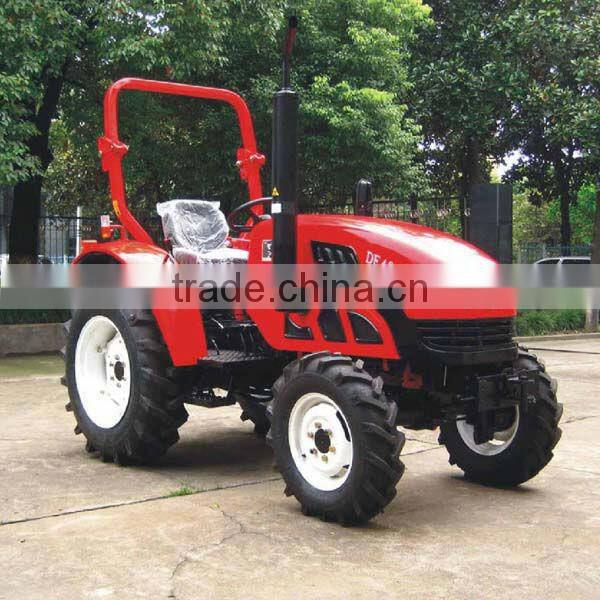

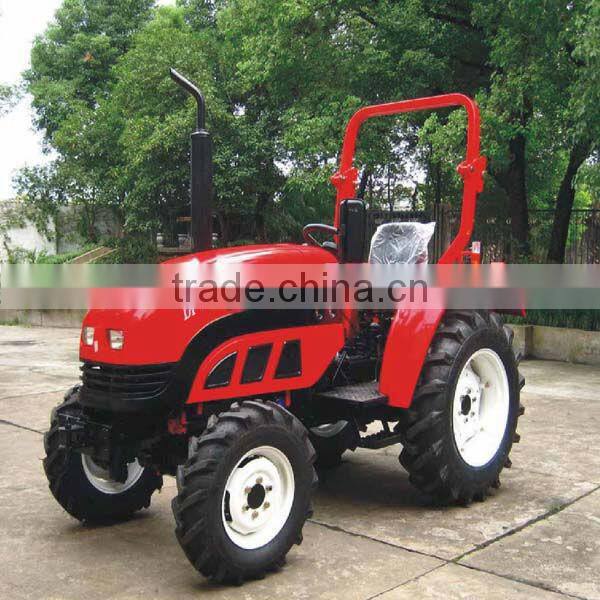

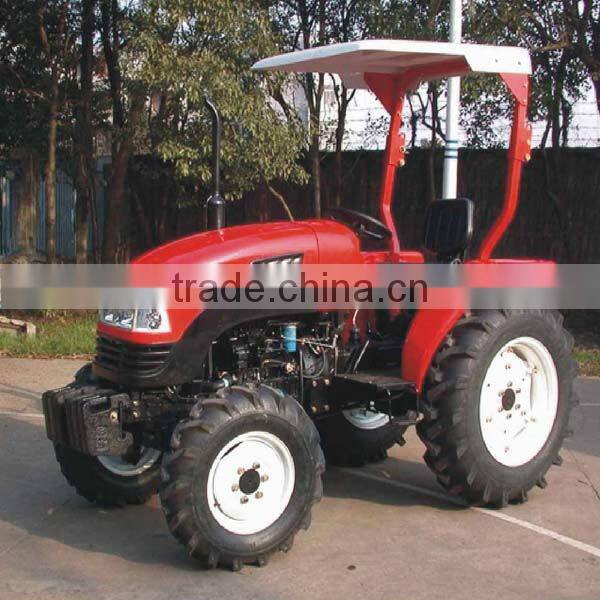

Dongfeng DF404 40hp Agricultural Tractor

Dongfeng DF404 40hp Agricultural Tractor thumbnail-1
Dongfeng DF404 40hp Agricultural Tractor photo-1
US$ 3,000 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Other, Gear Drive, 4WD
Power(W) 29.4kw
Certificate EPA
Brand Name Dongfeng
Model Number Dongfeng DF404
After-sales Service Provided Overseas third-party support available

Specifications

Dongfeng DF404 40hp agricultural tractor
Convenient control
Easy to operate;
high quality; low price
Good after-sale service

 Dongfeng DF404 40hp agricultural tractor


Details of Dongfeng DF404 40hp agricultural tractor in chart





Tractor
Parameters

Model

DF-404

Drive Type

4WD

Overall Dimensions
L*W*H(mm)

3354*1500*1620(Height to steering wheel)

Wheel Track(mm)

Front

1200

Rear

1100(Usually use),1200,1300,1400

Wheel Base(mm)

1818

Ground
Clearance(mm)

Under Front Axle

378

Under Rear Axle

405

Rated Traction

Force(N)

In Paddy Fields

5760

In Dry Fields

7960

Construction Mass(Kg)

1485

Min. Turning Radius(m)

3.2

Theoretical
Speed(Km/h)

Forward

1.75,2.88,4.63,6.22,9.05,14.90,23.98,32.21

Reverse

2.30,11.92

Engine
Specifications

Model

ZN490T

Type

4-cylinder,Upright inline cylinder
radiator cooling,4-storke cycle, direct-injection

Rated Power(Kw/hp)

29.4/40.0

Rated Fuel Consumption(g/kw/h)

<275

Rated Speed(rpm)

2400

Bore*Stroke(mm)

90*100

Total Displacement(L)

2.543

Drive
System

Clutch

Linkage type dual-function clutch

Gear Box

(4+1)*2,plannar 3-shaft for main transmission
epicyclical gearing for auxiliary transmission

Main Drive

One Pair of Spiral Bevel gears

Differential

Bevel Gear

Differential Lock

Jaw Lock

Final Transmissions

Spur Gear, External Gearing

Travelling
Mechanism

Tyre

front

7.5-16

rear

12.4-24

Steering Gear

Hydraulic steering

Brake

Disk type

Working
Device

Hydraulic
System

Lifting Capacity at
610 mm Behind Lift
Point(Kg)

665

3-point Suspension

Category: I

P.T.O. Shaft

Rotating
Speed(rpm)

540/1000

Spline size

6-φ35 Rectangular spline



 Dongfeng DF404 40hp agricultural tractorDongfeng DF404 40hp agricultural tractorDongfeng DF404 40hp agricultural tractor







If you want to know more information, please send e-mail to us.
