Specifications
CF504 Chinese Farm Tractors;High quality and reasonable price;
Excellent performance;
better sale service;
easy control.

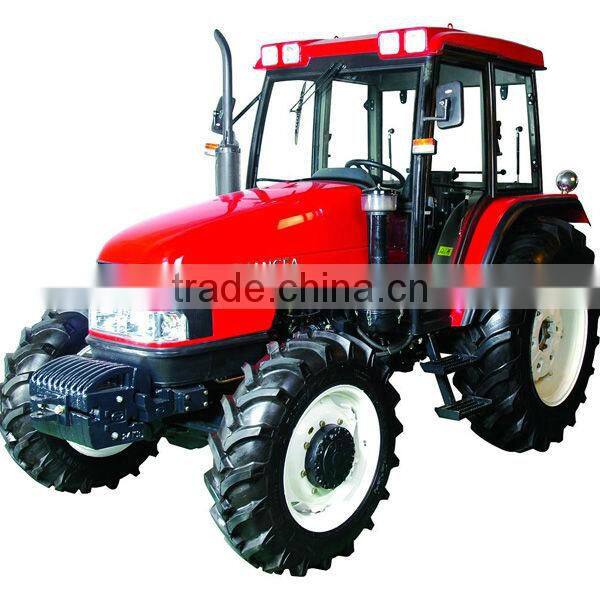

CF504 Chinese Farm Tractors
Adopt the Yuchai engine, which is of high dependability, with low noise, low exhaust gas.
the load device is optimized designed, with reasonable joint layout, dependable position limit function. What's more, the bucket has the automatically function, which can lessen labor intensity, improve the working efficiency.
urgent brake and car-stopping brake are made in one, which makes the brake more safe and reliable.
central designed backhoe and wingspread support leg guarantees stability of deep digging and breaking.
adopts the cut blocked construction machinery transmission shaft, which makes the dependability of power transmission high.
adopts the pilot controlled hydraulic system, which is more concrete and saves labor intensity.
the bucket has the automatically leveling function, which saves working time and improves working efficiency.
big wheel base makes good carrying capability and strong over capacity.
Tractor Model | CF504 | ||||
Engine | Model | CF4T-50 | |||
Type | Vertical, water cooled, four stroke, direct injection, natural aspiration | ||||
Power at Rated Speed | hp (kW.) | 50 (36.8) | |||
Maximum Rated Speed | rpm | 2400 | |||
Displacement | cu.in.(cc) | 182 (2980) | |||
Maximum Torque | nm@erpm | >176@(1600-1700) | |||
Fuel Consumption | g/kW.h | <285 | |||
Air Filter | Oil bath, out located | ||||
Tractor Parameters | Drive Type | 4WD | |||
Dimensions L*W*H | in. (mm) | 138*65*89 (3536*1615*2282) | |||
Wheel Track (min.) | Front | in. (mm) | 50 (1260) | ||
Rear | in. (mm) | 52 (1300) | |||
Wheel Base | in. (mm) | 80 (1992) | |||
Ground Clearance | in. (mm) | 13 (325) | |||
Rated Traction Force | kn | 12.5 | |||
Gross Weight (W/O weights) | lbs. (kgs) | 4719 (2145) | |||
Min. Turning Radius | W/O Brake | feet (m) | 13.1 (4.0) | ||
W/Brake | feet (m) | 10.8 (3.3) | |||
Theoretical Speed | Forward | mph (km/h) | 1.65-21.68 (2.67-34.97) or 0.28-21.68 (0.46-34.97) with creeper | ||
Reverse | mph (km/h) | 3.21-7.49 (5.18-12.08) or 0.55-7.49 (0.89-12.08) with creeper | |||
Capacity | Fuel Tank | gal. (L) | 12 (46) | ||
Cooling System | gal. (L) | 8.5 (8) | |||
Engine Oil | gal. (L) | 6.4 (6) | |||
Gear Box-Rear Axle | gal. (L) | 7.0 (27) | |||
If you have any questions, please don't hesitate to contact us.And if you play an larger order, we will give you a discount. We also hope to do more future business with you.
