Dongfeng 244 price china tractor;High quality and reasonable price;
Excellent performance;
Good after-sales service;
ISO

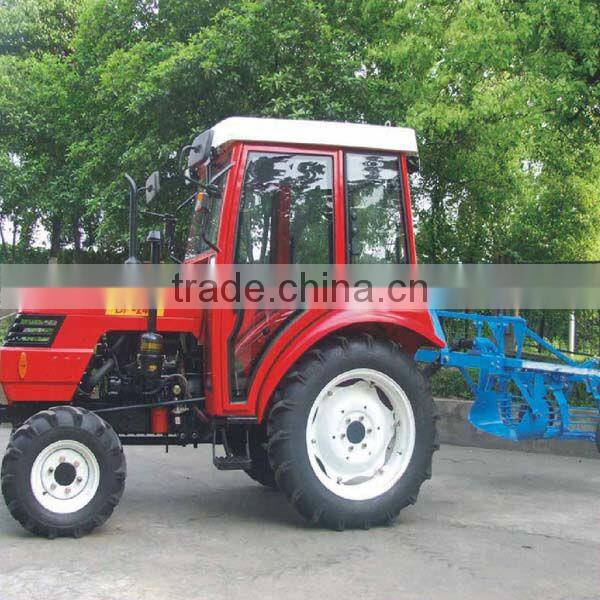

Dongfeng 244 tractor china
Adopt the Yuchai engine, which is of high dependability, with low noise, low exhaust gas.
the load device is optimized designed, with reasonable joint layout, dependable position limit function. What's more, the bucket has the automatically function, which can lessen labor intensity, improve the working efficiency.
urgent brake and car-stopping brake are made in one, which makes the brake more safe and reliable.
the raising time of the boom is quick, the cycling time of the loading device is less than 20s, while the digging device is less than 13.5s.
central designed backhoe and wingspread support leg guarantees stability of deep digging and breaking.
adopts the cut blocked construction machinery transmission shaft, which makes the dependability of power transmission high.
adopts the pilot controlled hydraulic system, which is more concrete and saves labor intensity.
the bucket has the automatically leveling function, which saves working time and improves working efficiency.
big wheel base makes good carrying capability and strong over capacity.
Tractor | Model | DF-244 | |
Drive Type | 4WD | ||
Overall Dimensions | 2661*1158*1365 | ||
Wheel Track(mm) | Front | 952 | |
Rear | 1020, 1120, 1220, 1320 | ||
Wheel Base(mm) | 1574 | ||
Ground | Under Front Axle | 290 | |
Under Rear Axle | |||
Rated Traction | In Paddy Fields | 3920 | |
In Dry Fields | 5880 | ||
Construction Mass(Kg) | 1190 | ||
Min. Turning Radius(m) | |||
Theoretical | Forward | 1.12, 1.49, 2.89, 4.81, 5.79, 7.74, 14.96, 24.94 | |
Reverse | 1.31, 6.80 | ||
Engine | Model | KM385BT | |
Type | 3-cylinder,Upright inline cylinder, radiator cooling,4-stroke cycle, direct-injection | ||
12-hour Rated Power(Kw/hp) | 17.6/24 | ||
Rated Speed(rpm) | 2400 | ||
Bore*Stroke(mm) | 80*90 | ||
Total Displacement(L) | 1.532 | ||
Drive | Clutch | Dual-stage | |
Gear Box | 4*(3+1) | ||
Main Drive | One Pair of Spiral Bevel gears | ||
Differential | Bevel Gear | ||
Differential Lock | Sliding pin, foot operated | ||
Final Transmissions | Planetary reduction gear sleeve gear | ||
Travelling | Tyre | front | 6.00-12 (herringbone pattern) |
rear | 9.5-24(herringbone pattern) | ||
Steering Gear | Hydraulic steering or mechanical | ||
Brake | sealed shoe | ||
Working | Hydraulic | Lifting Capacity at | 1100 |
3-point Suspension | Category:Ⅱ | ||
P.T.O. Shaft | Rotating | 540/730 | |
Spline size | 6-φ35 Rectangular spline | ||
the factory:
If you have any questions, please don't hesitate to contact us.And if you play an larger order, we will give you a discount. We also hope to do more future business with you.
