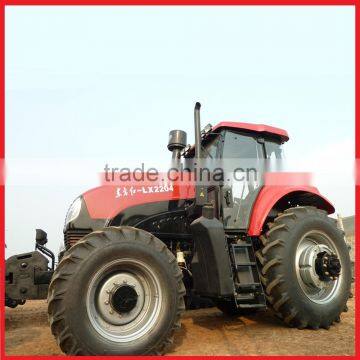

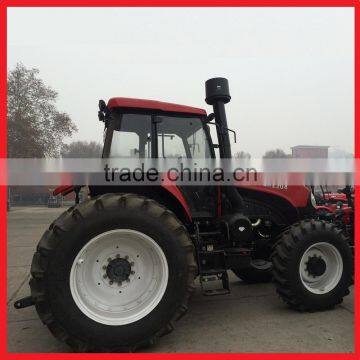

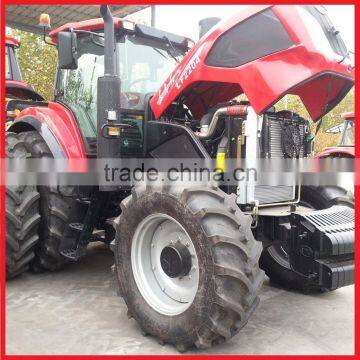

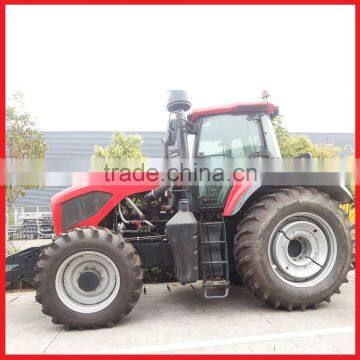

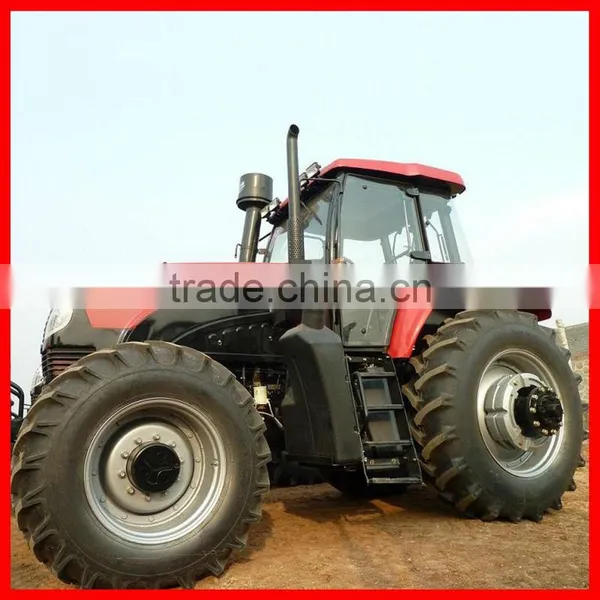

YTO-LX2204 Farm Tractor

YTO-LX2204 Farm Tractor thumbnail-1
YTO-LX2204 Farm Tractor thumbnail-2
YTO-LX2204 Farm Tractor thumbnail-3
YTO-LX2204 Farm Tractor thumbnail-4
YTO-LX2204 Farm Tractor thumbnail-5
YTO-LX2204 Farm Tractor thumbnail-6
YTO-LX2204 Farm Tractor photo-1
YTO-LX2204 Farm Tractor photo-2
YTO-LX2204 Farm Tractor photo-3
YTO-LX2204 Farm Tractor photo-4
YTO-LX2204 Farm Tractor photo-5
YTO-LX2204 Farm Tractor photo-6
US$ 3,000 - 60,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Hubei Fotma Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 163KW
Certificate EEC
Brand Name YTO
Model Number YTO-LX2204
After-sales Service Provided Overseas third-party support available
YTO-LX2204 farm tractor

YTO-LX2204   farm Tractor Specification



Engine

SC9D250G2

Main gear

mesh sleeve

Front/Rear tires

16.9-28/20.8-38

Gear box

12/4

Gear lever

painted with plastic

Front/rear ballast

front 10pcs/rear6pcs

Cabin

streamline model

Towing attachment

swinging draw-bar

Drivers' seat

luxury seat

Steering wheel

eight and angle adjustable

Suspension

catalogue III

Hydraulic lifter

draught and position control

Instrument

combined instrument

Battery

free maintenance

Front light

combined lamp

Rim color

white

Pneumatic brake

*optional

PTO

540(6splines)/1000(20splines)

PTO output power

>145kw

Muffler

flange

Hydraulic output

2 sets

Demensions(L W H)

5430*2750*3130mm

wheel tread(Front)

1552-2252mm

wheel tread(Rear)

1700-2288mm

Min operating mass

7600kg

Specific fuel consumption

<235g/kwH

Lifting capability(behind lower hitch point 610mm)

47KN

Max. traction force

70KN

Min. ground clearance

420mm



Our factory:

YTO-LX2204 Farm Tractor



Other YTO tractor models we can supply:

YTO-LX2204 Farm Tractor

                 YTO-454 Tractor with Front end loader and backhoe



The YTO-454 is equipped with wed disc brake exhibiting desirable braking performance and high reliability; Planetary gear final drive; double-action clutch; operable for glebe and paddy fields; engagement sleeve gear change; Combined draft-position control; big wheel tread and axle base; big kerb mass, good chassis stability; Optioned with safety ROPS.







YTO-LX2204 Farm Tractor



                                                  YTO-X1004 tractor



The YTO-X1004 tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine. The machine body has a streamline configuration. The tractor has a low fuel consumption and a desirable power economic. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.





If you want to know more information of our other tractor models, please send us Email.
