High Quality Jinma 50hp Tractor

Specifications

high quality Jinma 50hp tractor
Convenient control
Best performance
Low emission ; Powerful engine
High quality with reas

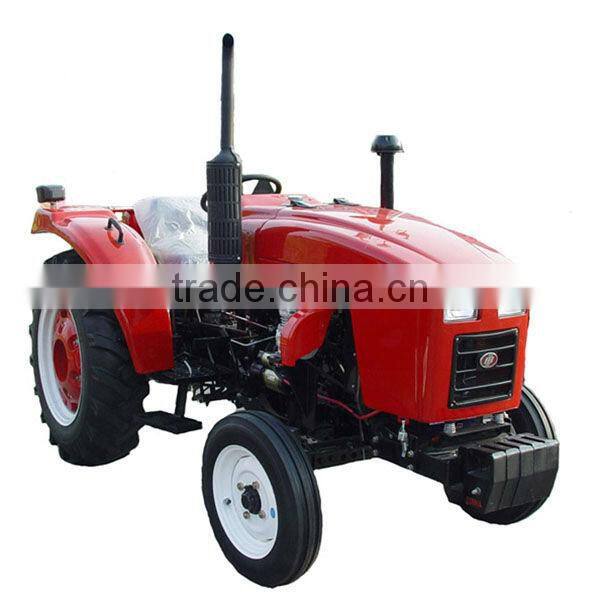

JM504 Jinma Tractor



We supply 20-125hp farm tractors, and the tractors are suitable for dry land, hilly land, vegetable farm, orchard, garden and other kind of land.



 Hydraulic steering, cabin, ROPS and canopy(sunshade), turf tire, creeper, shuttle shift and industrial tire can be chosen as options to fit on the Jinma tractors.



Specification for Jinma 504 Tractor



Specification
Tractor parameters	Model		JM504
	Drive type		4WD
	Overall dimensions( L*W*H )		3946*1625*2220
	Wheel track(mm)	front	1300
		rear	1300-1600
	Wheel bass(mm)		2073
	Ground clearance(mm)		325
	Rated traction force(N)		13000
	Construction mass(kg)		2148
	Min.turning radius(m)		3.42
Engine	Model		3cylinder
	Type		3cylinder , water cooled
	Rated power(km/hp)		36.8/50
	Rated speed(rpm)		2300
Drive system	Clutch		Dual-stage
	Gear box		2*(3+1)
	Main drive		one pair of spiral bevel gearing
	Differential		Bevel gear
	Differential lock		Jaw lock
	Final transmission		External gearing,spur gear
Traveling mechanism	Type	front	8.3-20
		rear	12.4-28
	Steering gear		Hydraulic steering
	Brake		Disc type
Working device	P.T.O shaft	Rotating speed(rpm)	540/1000
		Spline size	6 @ 35 Rectangular spline

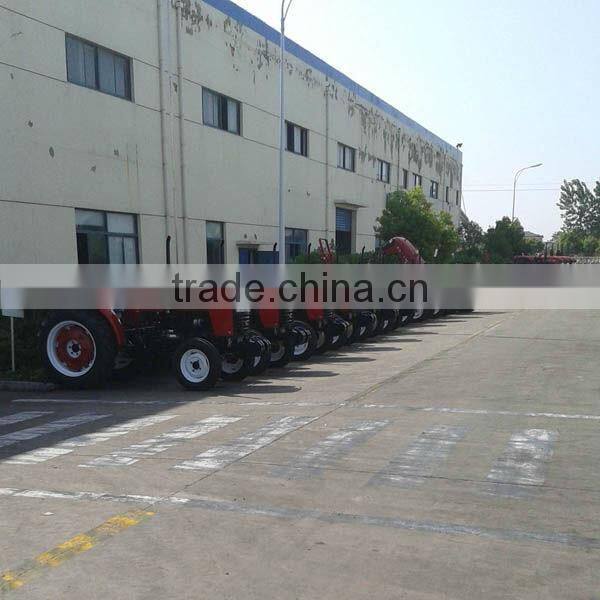

Our factory







Other Jinma tractor models we can supply



                                                           Jinma JM904 Trator with cabin



                                                                            Jinma JM300 Tractor





If you are interested in above tractor model or more details of other tractor models, please do not hesitate to contact us.
