Jinma 204 20hp Agricultural Tractor

Specifications

Jinma 204 20hp agricultural tractor
3 cylinder diesel engine
high quality;low price;
(4+1)*2 Gearbox;
Single or dual clutch.

Jinma 204 20hp agricultural tractor



Jinma 204 20hp agricultural tractor is developed on the basis of the Italian wheeled tractor chassis technology and adopts the British technology-based engine. The machine body has a streamline configuration. It has a low specific fuel consumption and a desirable power economic efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.



Specification for Jinma 204 20hp agricultural tractor

Tractor Parameters	Model			JM-204
	Drive Type			4WD
	Overall Dimensions L*W*H(mm):			3080*1280*1930
	Wheel Track (mm)	Front		1000,1100
		Rear		1040~1200
	Wheel Base(mm)			1645
	Ground Clearance (mm)			295
	Rated Traction Force(N)			4800
	Construction Mass(kg)			1120
	Min.Turning Radius(m)			2.5
	Theoretical Speed(Without creeper) ( km/h)		Forward	1.73,2.64,4.14,5.71,8.01,12.20,19.14,26.40
			Reverse	2.28,11.02
Engine Specifications	Model			LL380BT
	Type			3-Cylinder Vertical, water cooled,4 stroke cycle
	Rated Power (kw/hp)			14.7/20
	Rated Speed (rpm)			2400
	Bore x Stroke (mm)			80*90
	Total Displacement (L)			1.357
Drive System	Clutch			Dual-Stage
	Gear Box			(4+1)*2
	Main Drive			One Pair of Spiral Bevel Gearing
	Differential			Bevel Gear
	Differential Lock			Jaw Lock
	Final Transmission			External gearing, Spur Gear
Traveling Mechanism	Tire	Front		6.00-12
		Rear		8.3-24
	Steering Gear			Mechanical  Steering
	Brake			Shoe type
Working Device	Hydraulic System	Lifting Capacity at 610mm Behind Lift Point (N)		3600
		3-Point Suspension		Category: I
	P.T.O Shaft	Speed (rpm)		540/1000
		Spline Size		6 @ 35 Rectangular Spline



 Photo for Jinma 204 20hp agricultural tractor

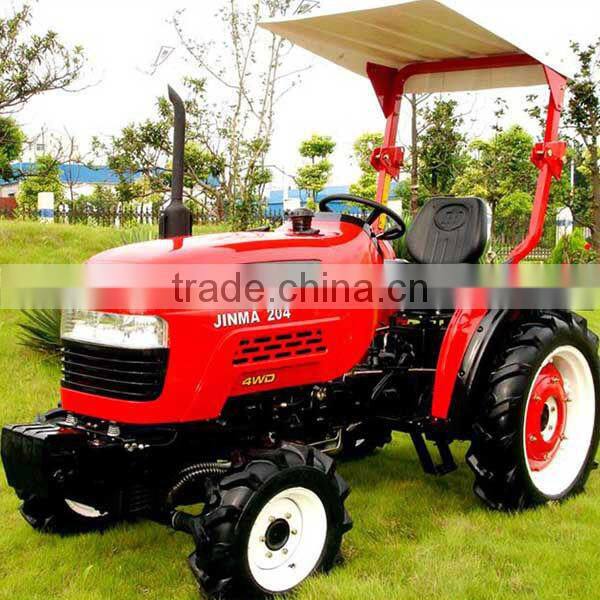

                      Jinma 204 20hp agricultural tractor with agri tire, ROPS and canopy.

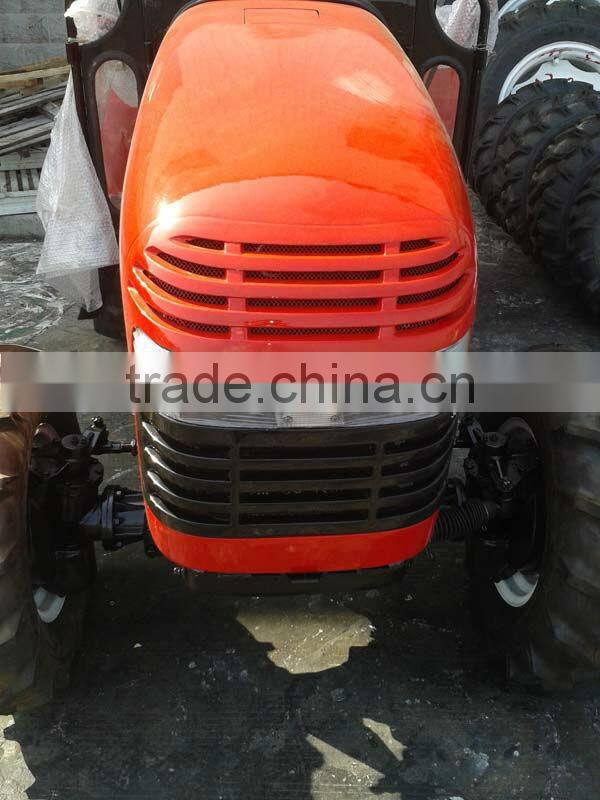

                            Combine light of Jinma 204 20hp agricultural tractor

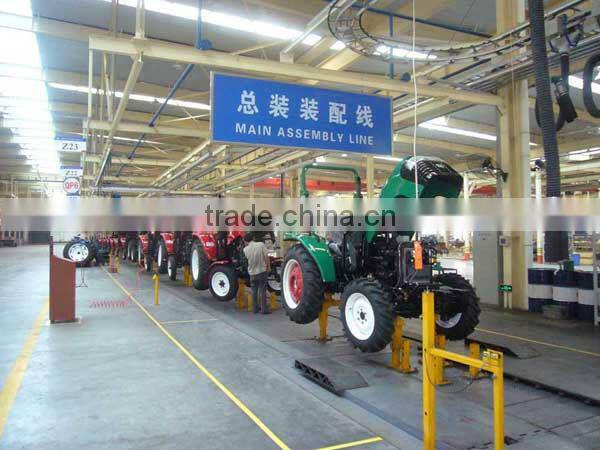

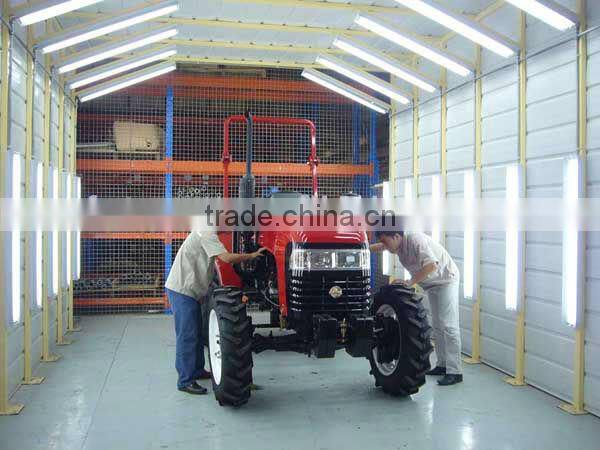

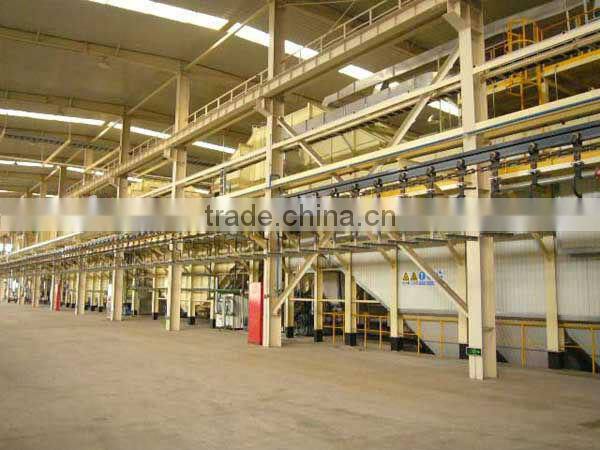

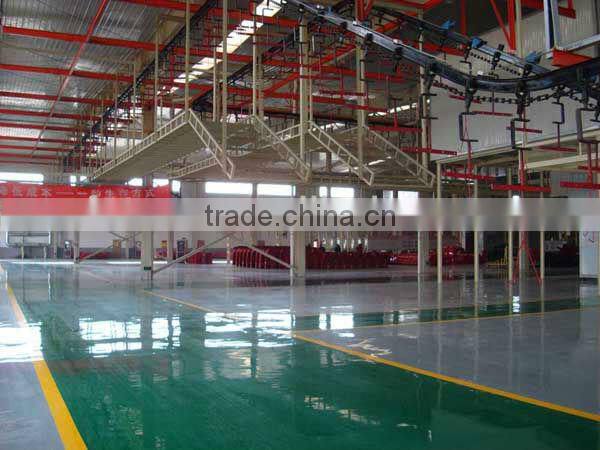

Our tractor factory:

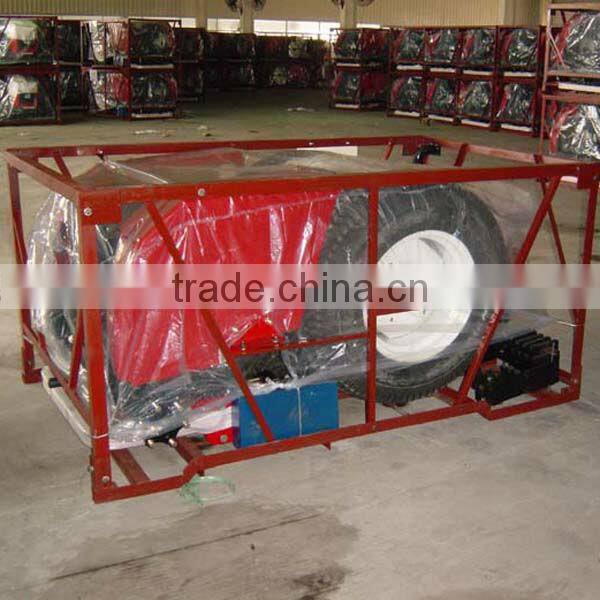

                                            Tractor packed in iron crate





If you are interested in our tractors, please feel free to contact us.
