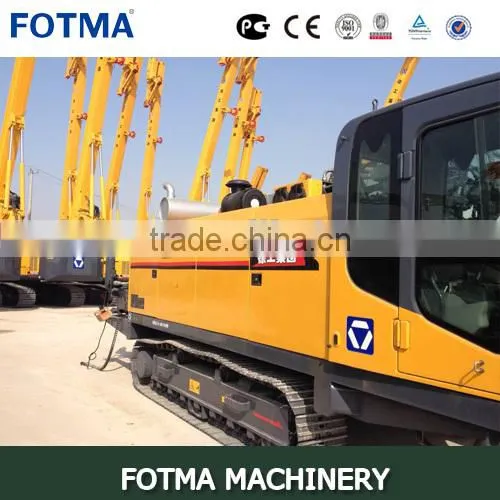

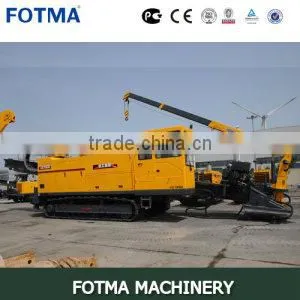

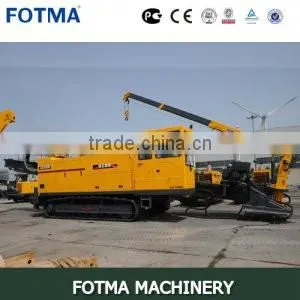

XZ6600 horizontal directional drilling machine is one-piece and full-drive drilling machine, which adopt the electro-hydraulic proportional control and load sensitive control and a number of advanced control technology and the company's proprietary technology. The main performance parameters and control technology has reached the international advanced level. The main components choose the international brand-name products with the high reliability.
The highlights
1.The machine adopts the load sensitive control and electrohydraulic proportional control and other several advanced control technology. The imported components have the reliable quality.

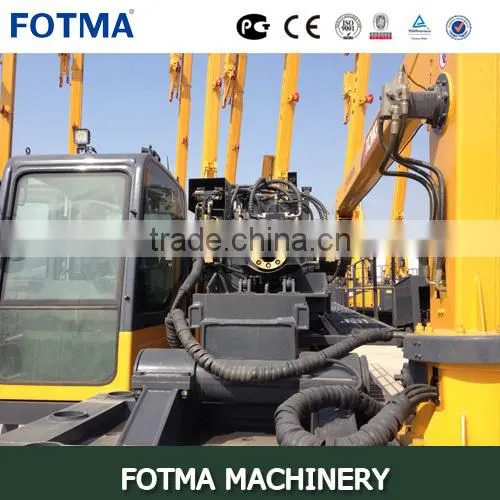

2.The gear and rack push and pull to ensure the stability and the reliability of the transmission of power head operation.Power head’s floating can greatly protect the drill pipe thread and improve the service life of the drill pipe.

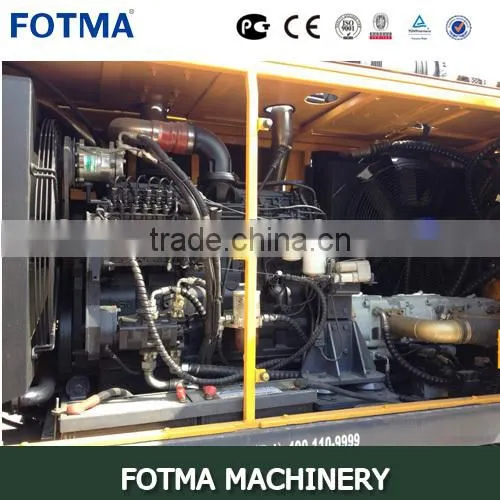

3. The Volvo high-power engine system is powerful. The huge power reservecan meet the construction of the horizontal directional drilling machine under the different working conditions.
4.The sliding of the drilling machine relies on the push and pull action of the cylinder.The adjustment of the grave angle is simple, convenient and safe.
5. There are the floating vise. There are the big torque and reliable clamping.
Technical parameters
Item | Unit | Numbers | |
Power station: engine | Manufacturer |
| Volvo |
| Type |
| TAD1643VE |
| Rated power | kW/ rpm | 565×2/1850 |
Host:engine | Manufacturer |
| Dongfen Cummins |
| Type |
| 6BTAA5.9-C180 |
| Rated power | kW/ rpm | 132/2200 |
Push and pull | Type |
| Eight motor drive gear and rack type |
| Biggest drag/ feeding force | kN | 6600/6600 |
| Power head speed | m/min | 0~28 |
Rotation | Type |
| Sixmotor drive gear transmission |
| Max. torque | N.m | 160000 |
| Speed | r/min | 0~90 |
| Diameter | mm | φ194 |
| Length( Single) | m | 9.6 |
Drill stand | Type |
| Sliding box drill stand with the bedplate |
| Adjusting angle | ° | 8~16 |

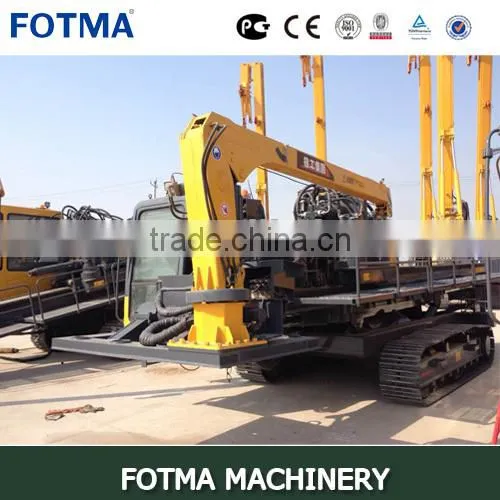

Lorry-mounted crane | Type |
| Rotary arm straight telescopic crane |
| Max. lifting quality | t | 5 |
Walking drive | Type |
| Steel crawler self-propelled |
| Walking speed | km/h | 0.9 |
| Gradeability | % | 30 |
Slurry pump | Type |
| Independent pump station (external) |
| Flow | L/min | 2500 |
Host dimension | mm | 18240*3000 *3600 | |
Power station dimension | mm | 7500*2300*2400 | |
Operating room dimension (Option) | mm | 3500*2438*2591mm | |
Host weight | t | 58 | |
