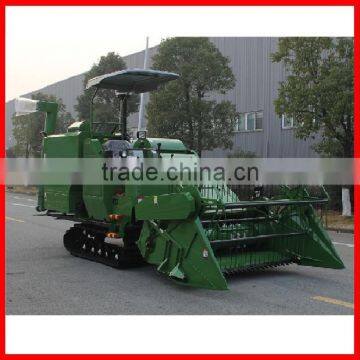

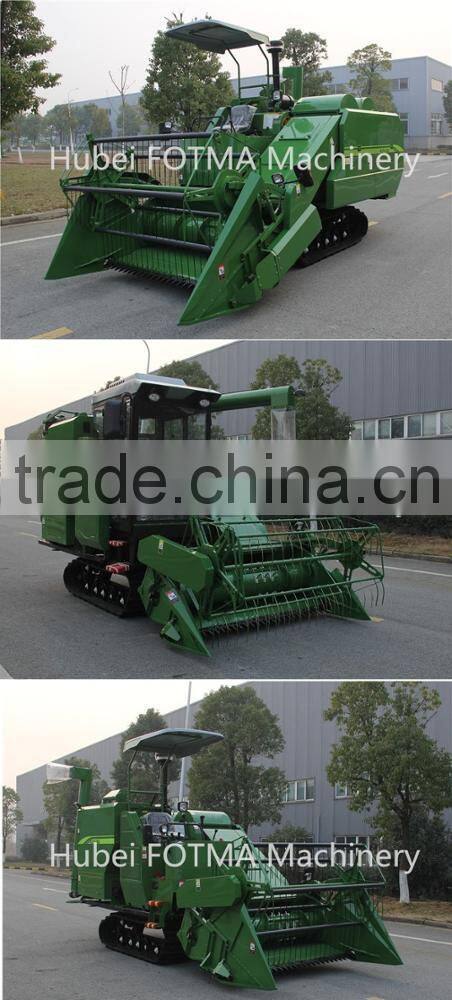

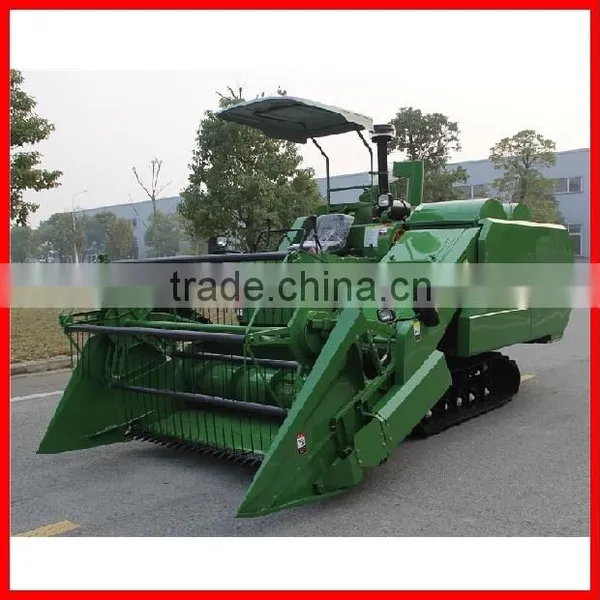

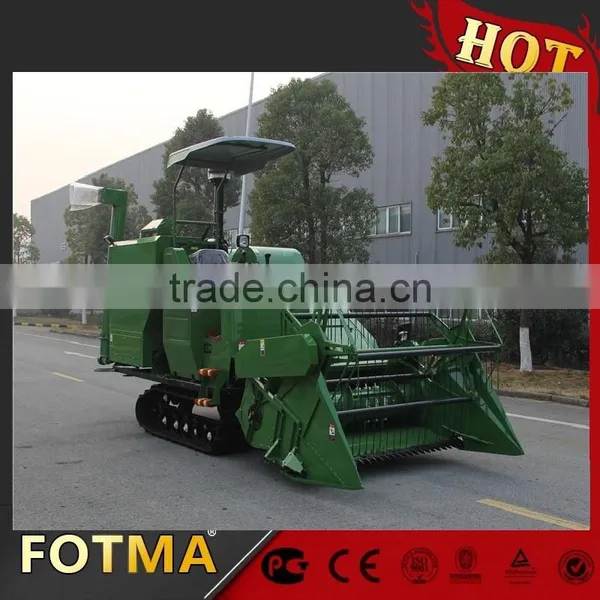

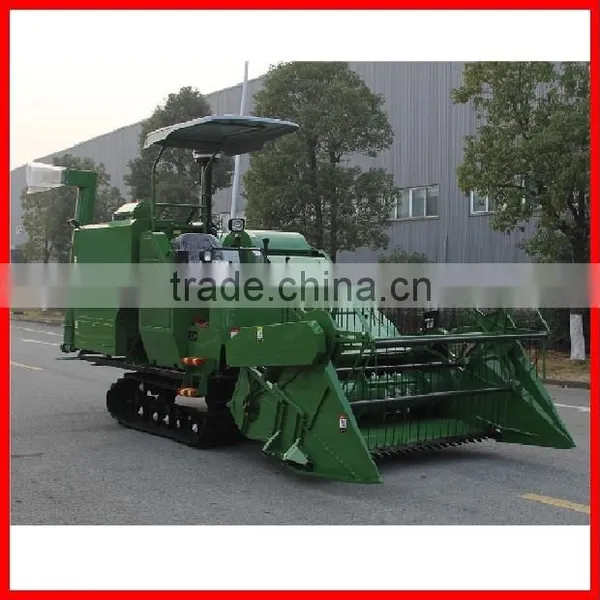

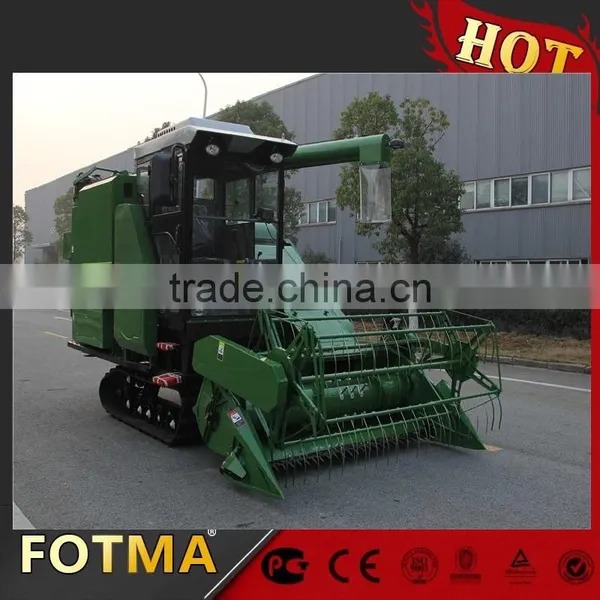

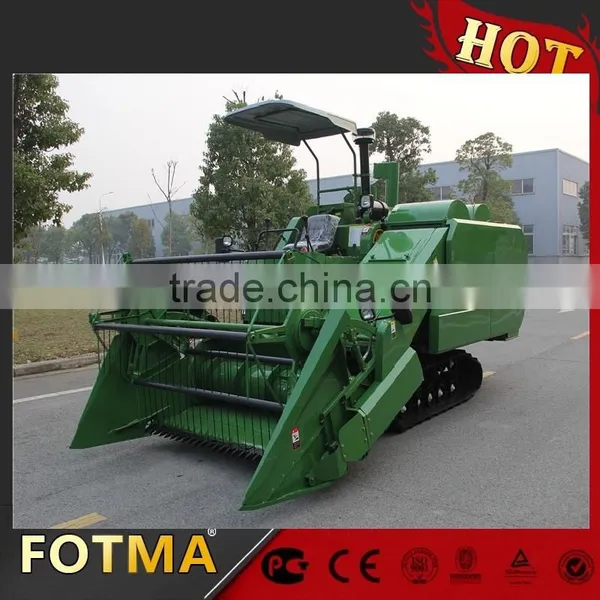

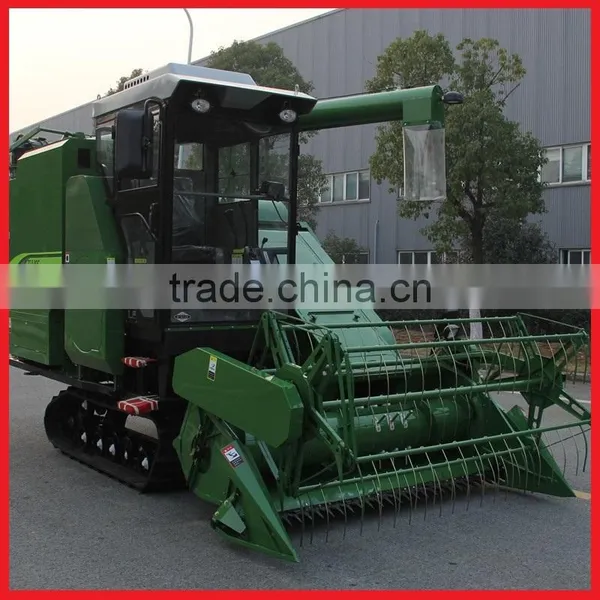

4LZ-2.5Q Rice Combine Harvester
Technical Features
1. Mature power match, less fuel consumption, good reliability and large power reserve.
2. Hydraulic reel movement, applicable to multiple crops.
3. With widened crawler, the ground pressure is less than 20Mpa and the pass ability in rice field is improved.
4. HST stepless speed regulating technology is adopted for more convenient operation.
5. With tangential flow and transverse flow double spike tooth type threshing drum, it can thresh more thoroughly.
6. The adjustable reciprocating type double vibrating screen is adopted, and the screening effect is better.
7. Advanced scientific design and diversified protection device contribute to more convenient service and maintenance.
8. Internationally advanced suspended supporting wheel design is adopted, which effectively prolongs the service life of chassis system.
Technical Data
Model | 4LZ-2.5Q | |
Feed capacity(kg/s) | 2.5 | |
Dimension(L*W*H)(mm) | 4890*2300*2840 | |
Weight(kg) | 2565 | |
Engine | ||
Brand | Xinchai | |
Type | 4-cylinder in-line water cooling | |
Rated power(hp) | 75 | |
Speed(r/min) | 2400 | |
Fuel | Diesel | |
Fuel consumption(kg/hm²) | ≤32 | |
Drive system | ||
Track | Specification | 90mm × 48 section × 400mm |
| Track gauge(mm) | 950 |
Min. ground clearance(mm) | 240 | |
Transmission | Mechanical + stepless hydraulic speed regulating (HST) | |
Number of shifting positions | Stepless speed | |
Cutting | ||
Reel | Type | Eccentric drawing-tooth |
| Diameter | 900 |
Cutting width(mm) | 2000 | |
Blade width(mm) | 2000 | |
Header auger | Spiral blade+Eccentric telescopic rod rack | |
Grain unloading | ||
Grain unloading method | Hydraulic automatic | |
Grain Tank(m³) | 1.1 | |
