Specifications
4LZC-2.0Z Rice Combine HarvesterLess fuel consumption.
Large power reserve .
Hydraulic reel movement.
HST stepless speed.

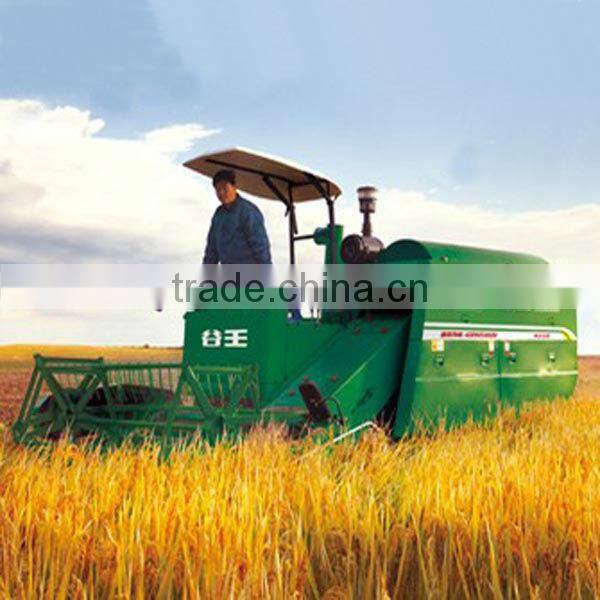

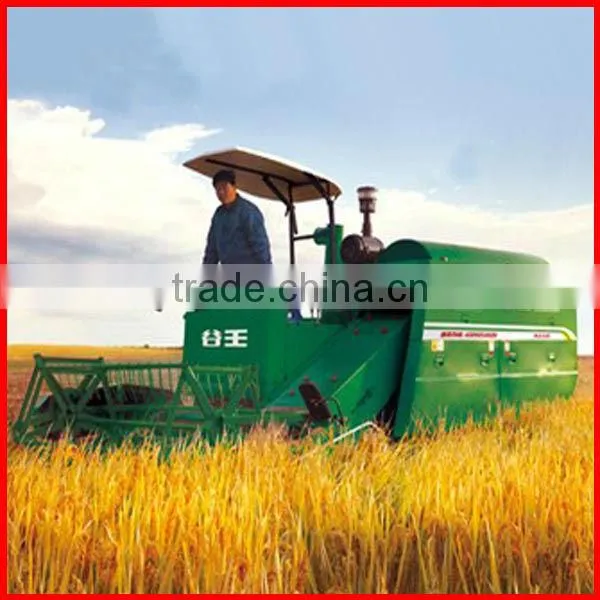

4LZC-2.0Z Rice Combine Harvester
Technical Features
1. Mature power match, less fuel consumption, good reliability and large power reserve.
2. Hydraulic reel movement, applicable to multiple crops.
3. With widened crawler, the ground pressure is less than 20Mpa and the pass ability in rice field is improved.
4. HST stepless speed regulating technology is adopted for more convenient operation.
5. With tangential flow and transverse flow double spike tooth type threshing drum, it can thresh more thoroughly.
6. The adjustable reciprocating type double vibrating screen is adopted, and the screening effect is better.
7. Advanced scientific design and diversified protection device contribute to more convenient service and maintenance.
8. Internationally advanced suspended supporting wheel design is adopted, which effectively prolongs the service life of chassis system.
Technical Data
Model | 4LZ-2.0Z | 4LZ-3.0Z | 4LZ-3.5Z | |
Type | Longitudinal axial flow full-feed crawler type | Longitudinal axial flow full-feed crawler type | Longitudinal axial flow full-feed crawler type | |
Rated Engine Power/Speed kW/r | 55/2600 | 60/2600 | 62/2600 | |
Overall Dimensions(L×W×H) mm | 4970×3040×2660 | 4780×2600×2800 | 4900×2770×2580 | |
Operation Weight kg | 2800 | 3000 | 3000 | |
Cutting Width mm | 2000 | 2200 | 2400 | |
Feed Capacity kg/s | 7.2 | ≥10.8 | ≥12.6 | |
Min. Ground Clearance mm | 220 | 220 | 220 | |
Theoretical Operating Speed km/h | 0~5.8 | 0~5.8 | 0~5.8 | |
Productivity hm2/h | 0.17~0.47(0.17-0.47) hectare | 0.27~0.54(4-8)mu | 0.3~0.6(4.5-9)mu | |
Fuel consumption per unit area kg/hm2 | ≤25 | ≤25 | ≤25 | |
Blade Type | Ⅱtype | Ⅱtype | Ⅱtype | |
Header Auger Type | helical blade+eccentered expansion link(Floating) | helical blade+eccentered expansion link(Floating) | helical blade+eccentered expansion link(Floating) | |
Transmission Type | Mechanical + stepless speed regulating | Mechanical + stepless speed regulating | Mechanical + stepless speed regulating | |
Stalk Chopping Type | Flail blade (optional) | Flail blade (optional) | Flail blade (optional) | |
Track | Spec(Pitch X Pitch Number X Width) | 90mm×50pitch×400mm | 90mm×50pitch×400mm | 90mm×50pitch×400mm |
Track Gauge mm | 1150 | 1150 | 1150 | |
Threshing Drum Type mm | φ655×1550 | φ555×1800 | φ555×1800 | |
Grain unloading | Manual receiving | Manual receiving or mechanical spiral dump | Manual receiving or mechanical spiral dump | |
If there is any question, please send me Email to fotmasale01# or fotmasale01#. Please change # to @ when sending the Email.
