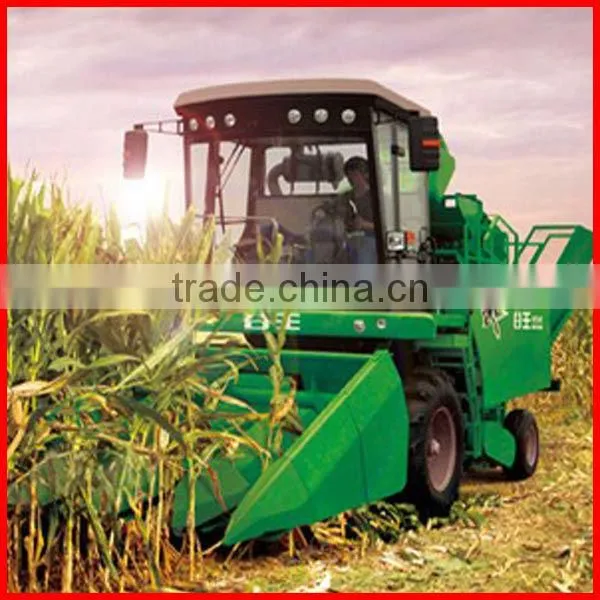

4YZC-4C Corn Combine Harvester

nude packing, 1set/40ft container

Specifications

Famous CHINA II turbocharged engines
Engine adopts bi-direction power output
Clutch is controlled by hard connecting rod

4YZC-4C Corn Combine Harvester

Technical Features
Strong Power:
1. Equipped with famous CHINA II turbocharged engines, which features energy-saving, environmental procetection and care, strong power and high torque reserve;
2. The engine adopts bi-direction power output, and thus the drivetrains of the travel system and the working device are independent of each other, which improves the reliability of each system;

Advanced Technology:
1. The clutch is controlled by hard connecting rod, which makes the engagement and disengagement more thorough and more reliable;
2. Full hydraulic steering system for flexible and convenient control;
3. Left fliping grain box, enhanced drive's visibility and makes unloading a lot easier
4. Equip with the 4-wheel brake system which makes it more safe;
5. The optimized radiator structure with new type dustproof and maintenance-free cover can effectively avoid high engine temperature;
6. Better adjusted conveying chain of the header, offers more reliability.
7. It employs steel header cover to prevent the wheat spikes from falling, which is beautiful and practical.
8. The chopping device adopts two curve blades + one straight blade in the middle, which has good chopping effect;
9. There are optional small 4 line headers or narrow 5 headers for different row space of corns.
Efficient Work:
10. The transmission has 3+1 gears with stepless speed regulating control. The speed is reasonably matched for improving the work efficiency;

Comfortable Driving:
1. The driver’s cab is equipped with new type luxurious upholstery and optional air conditioning system for more comfortable driving environment;
2. The combination instrument integrated type steering gear: optional sound alarm for oil level, voltage, oil pressure, air filter, engine speed, etc. the operator can learn if the sensors are normal when it is activated, and it is stable and reliable;
3. The optimized engine vibration absorption device reduces the vibration and improves the comfort of driving;
4. The optimized gear shifting control system improves the convenience for assembly, gear engaging reliability and comfort of operation;
5. The optional LCD reversing display improves safety of driving.



Technical Specifications

Model	4YZC-4C
Type	Wheel Self-propelled
Picking Mechanism Type	Picking plate + cutting roller
Harvesting Rows	4
Type of peeling roller	Picking plate + cutting roller
Applicable Row Width   mm	480~580
Power kW	90.5~92
Engine speed r/min	2400
Theoretical Travel Speed km/h	I gear   1.55 ~3.45 II gear   3.43 ~7.61 III gear   9.25 ~20.51 Reverse gear 3.62 ~8.03
Pure work productivity hm2/h	0.33~0.58
Grain Tank Volume m2	2.5
Stalk Smashing Width mm	1800
Stalk Smashing Blades Combination Type	2 curve blades + 1 straight blade in the middle
Machine Weight kg	6100
Overall Dimensions(LxWxH) mm	7500x2300x3550
