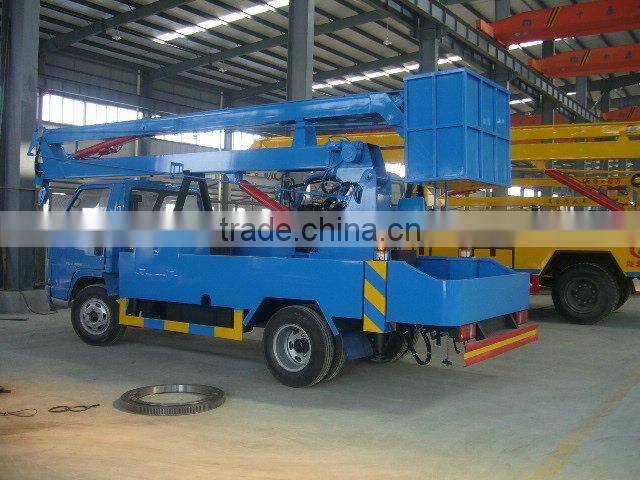

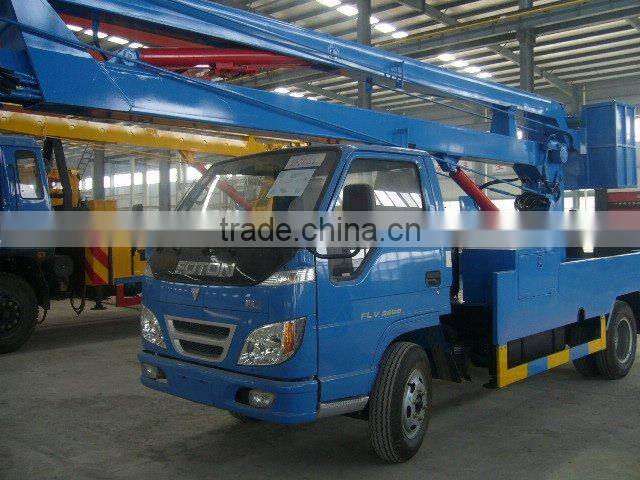

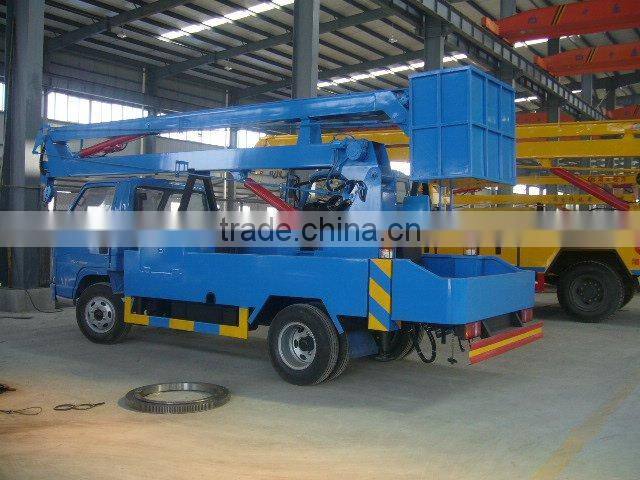

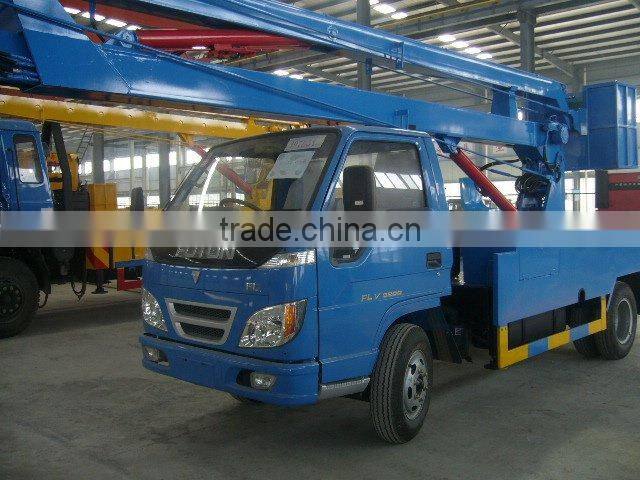

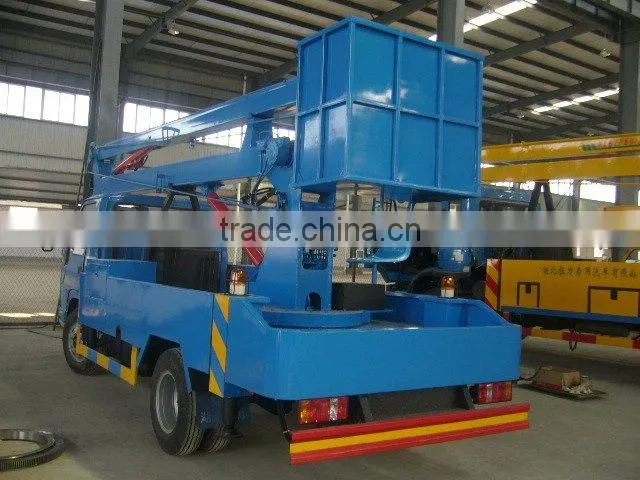

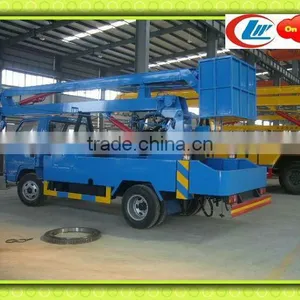

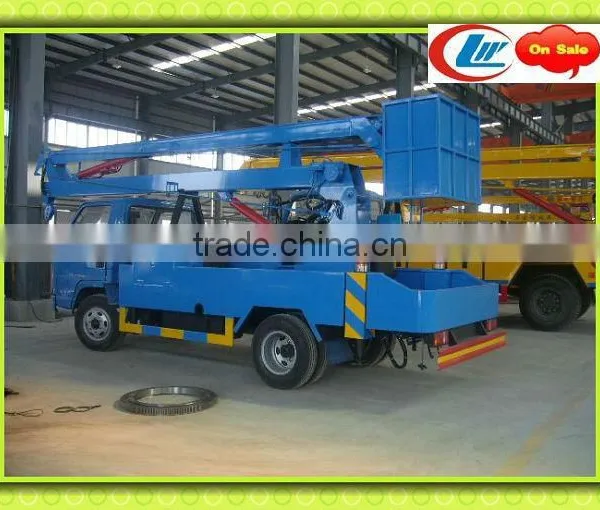

Foton Hydraulic Aerial Cage ,aviation platform truck

Item

unit

parameter

Vehicle model

CLW5052JGKC-2 High-altitude Operation Truck

Chassis model

BJ1059VCAD6-2

Overall dimensions

mm

6600x1900x2850

Factual loading

kg

200

GVW

kg

Appro×4495

Rated loading capacity

Appro×160

Mass in working order

Appro×4000

Body internal dimensions

mm

3370×1800×400

Wheel base

3360

F/R track base

1380/1458

Approach/departure angle

°

19/15

Exhaust/hp

ml/kw

3707/70

Max speed

km/h

95

Tire specification

7.00R15,6.50-16

Engine type

BJ1059VCAD6-2

Traction system

4×2

transmission

5-speed with over drive

Number of axles

2

Electric system

24v

Operation control  system

Electrically hydraulic control

Allowable passengers in cab

2+3

Equipment

max operation height≥15m,max operation radius≥7.3m,max working platform height≥11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension: 6600x1900x2850,360°turning(left or right),4 H-shape legs.

clients can choose hydraulic parts made in China or Italy,to be mentioned.

Engine

Beiqi Foton Motor Co., Ltd BJ1059VCAD6-2  95HP

Production cycle

25-30 days

Factory price

FOB/DAF/CNF/CIF
