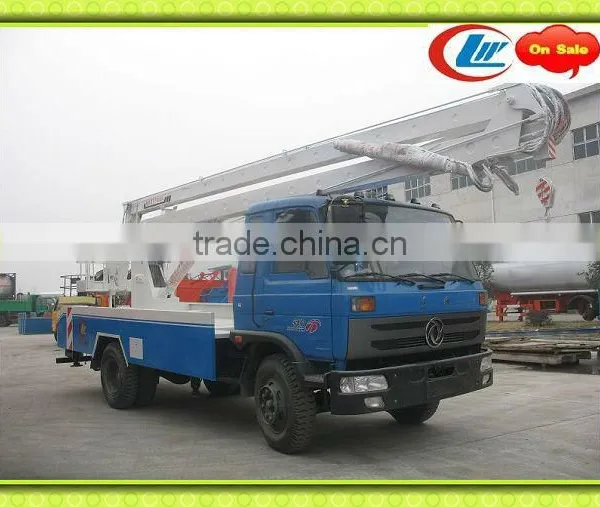

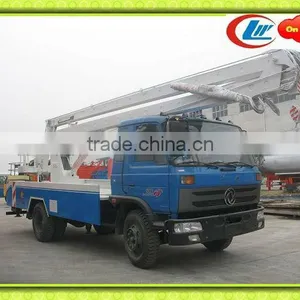

DongFeng Aerial Lift,hydraulic Aerial Cage,portable Hydraulic Lift

Chengli Special Automobile Co., Ltd.

US$ 16,999 - 39,999 MOQ: 1 Set

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 2

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 2

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7210*2470*3560

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5108JGKZ

Specifications

DongFeng aerial lift
Our company is a professional high-altitude operation truck manufacturer in China.
3C,ISO,BV
OEM

DongFeng aerial lift

Item		unit	parameter
Vehicle model			CLW5108JGKZ High-altitude Operation Truck
Chassis model			EQ1108G6DJ16
Overall dimensions		mm	7210×2470×3560
	Fact loading	kg	200
	GVW	kg	Appro×10300
	Rated loading capacity		Appro×500
	Mass in working order		Appro×10000
	Body internal dimensions	mm	/
	Wheel base		3950
	F/R track base		1250/1820
	Approach/departure angle	°	30/18
Exhaust/hp		ml/kw	5880/118
Max speed		km/h	90
Tire specification		9.00-20,9.00R20	Engine type		EQB160-20
Traction system		4×2	transmission		6-speed with over drive
Number of axles		2	Electric system		24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab		3
Equipment		max operation height≥18m,max operation radius≥7.5m,max working platform height≥16m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:11005701000mm,360°turning(left or right),4 H-shape legs. clients can shoose hydraulic parts made in China or Italy,to be mentioned.
Engine		DongFeng Cummins Environmental Protection,supercharge,diesel engine
Production cycle		25-30 days
Factory price				FOB/DAF/CNF/CIF
