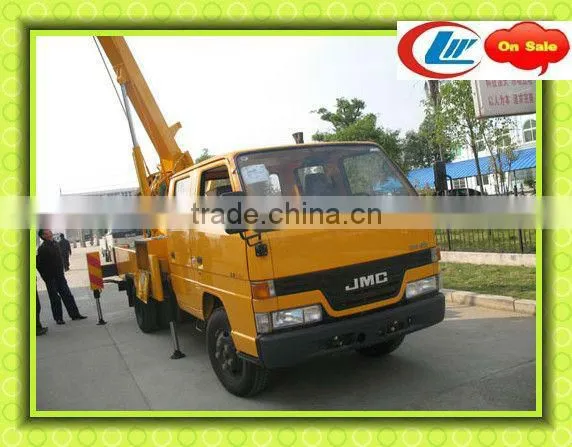

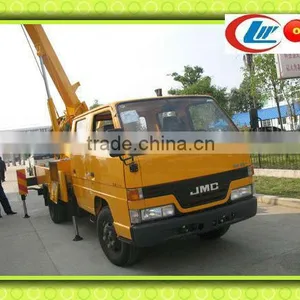

JMC 4x2 high lifting platform truck,platform operation truck

Item

unit

parameter

Vehicle model

CLW5051JGKZ High-altitude Operation Truck

Chassis model

JX1050DSL2

Overall dimensions

mm

6500×1980×3000

Factual loading

kg

200

GVW

kg

Appro×15250

Rated loading capacity

185-

Body internal dimensions

mm

-

Wheel base

3360

F/R track base

1385 / 1425

Approach/departure angle

.

27/17.5

Exhaust/hp

ml/kw

2771/90

Max speed

km/h

100

Tire specification

7.00R15-10PRLT,7.00R16-10PRLT

Engine type

JX1050DSL2

Traction system

4×2

transmission

5-speed with over drive

Number of axles

2

Electric system

24v

Operation control  system

Electrically hydraulic control

Allowable passengers in cab

3+2

Equipment

Max operation height=16m,max operation radius≥5.7m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,60°turning(left or right),4 H-shape legs. Clients can choose hydraulic parts made in China, with hook

Engine

JX1050DSL2 diesel engine

Production cycle

25-30 days
