Help CenterBattery Powered Electric Hearse , CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG6118TB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Airport People Movers EG2048TNegotiableMOQ: 1 Unit -
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB1NegotiableMOQ: 1 Unit
-
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB1 Electric Car Without Driving LicenceNegotiableMOQ: 1 Unit
-
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TBNegotiableMOQ: 1 Unit
-
Special Electric Ambulance Golf Car for Cruiser, EG2028TB1NegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6118TB

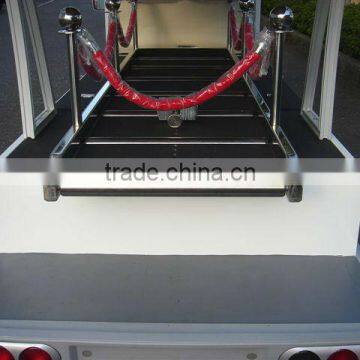

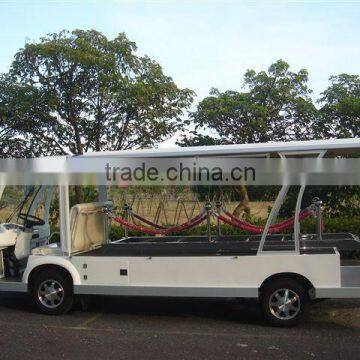

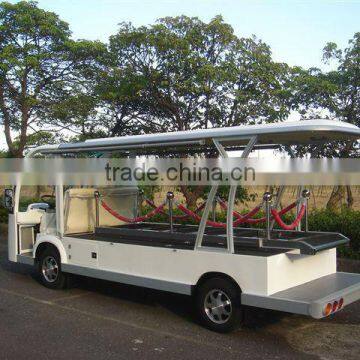

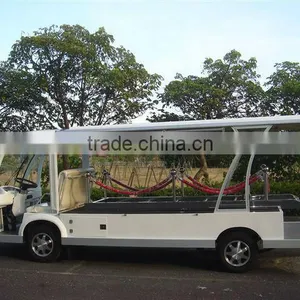

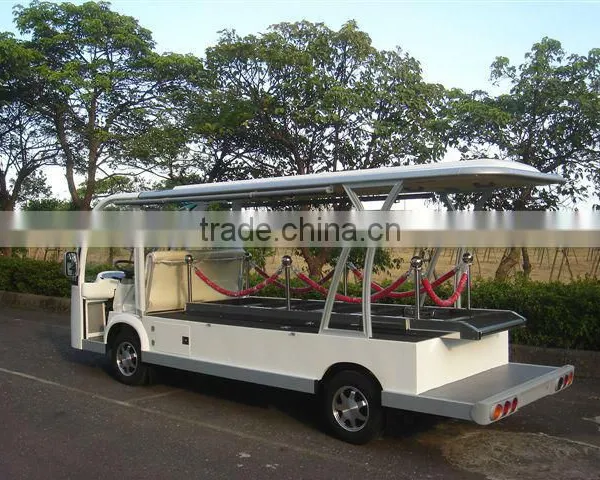

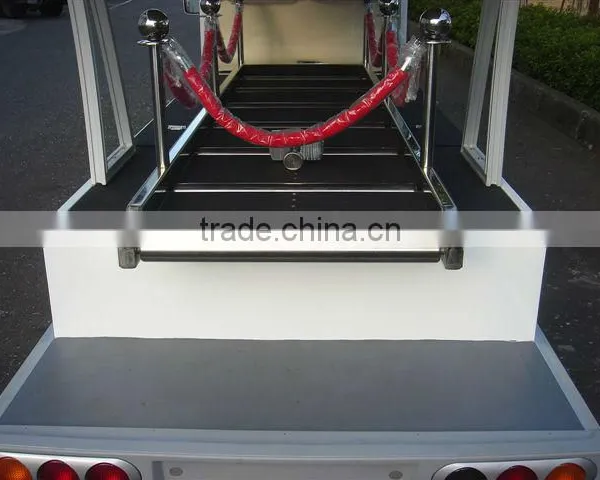

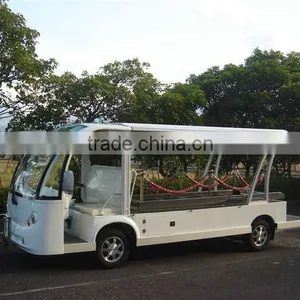

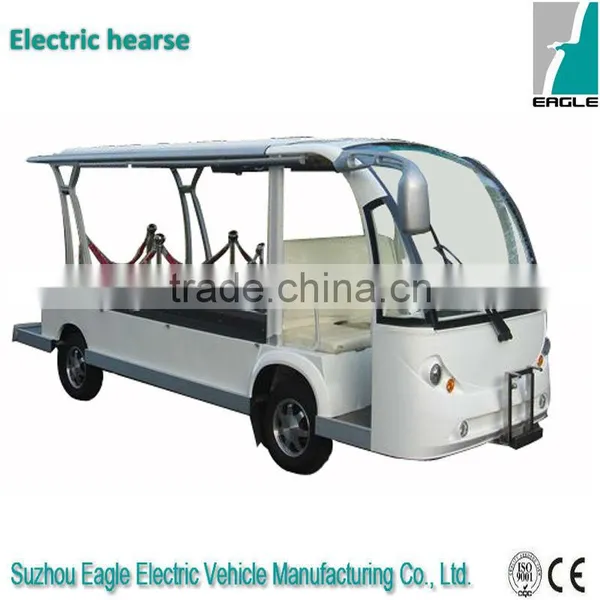

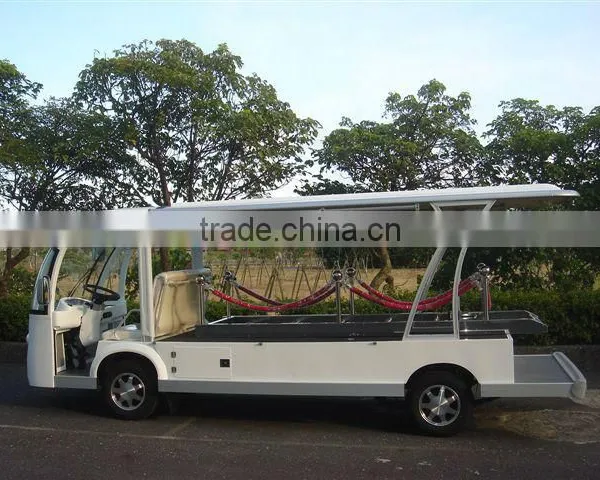

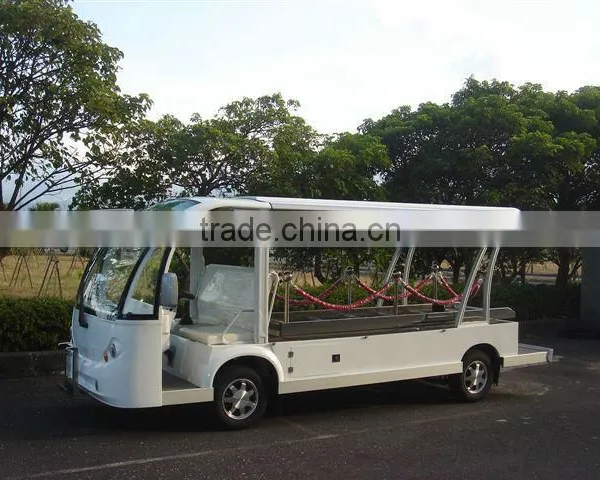

battery powered electric Hearse , CE approved
Product Description
| Model | EG6118TB | EG6118TB03 | EG6118TB04 | EG6118TB05 |
| System | 72V/5KW Series | 72V/5KW Series | 72V/7KW AC system | 72V/7.5KW AC system |
| Key Components | ||||
| Battery | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) | 12xT105(185Ah@5hr rate) |
| Motor | 5KW Chinese motor | 5KW Chinese motor | 7KW Chinese motor | 7.5KW Chinese motor |
| Controller | Curtis 1209 (400A@2minutes) | Curtis 1205M (400A@1minute) | Curtis 1238 (550A@2minutes) | Curtis 1238 (550A@2minutes) |
| Performance | ||||
| Passenger capacity | 2+1 | 2+1 | 2+1 | 2+1 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >80 | >100 | >110 | >110 |
| Max. speed | 45 | 30 | 40 | 50 |
| Minimum turning radius (m) | 5.35 | 5.35 | 5.35 | 5.35 |
| Max. climbing ability (loaded) | 25% | 15% | 20% | 25% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 880kgs | 880kgs | 880kgs | 880kgs |
| Net weight | 1210kgs | 1150kgs | 1170kgs | 1190kgs |
| Dimensions | ||||
| Overall dimensions (mm) | 5000x1490x2050 | |||
| Min. ground clearance (mm) | 135 | |||
| Wheelbase (mm) | 2710 | |||
| Front wheel tread (mm) | 1222 | |||
| Rear wheel tread (mm) | 1185 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with sand blasting+paint treatment | |||
| Body | Fibreglass | |||
| Roof | Fibreglass+aluminum frame, with roof handle | |||
| Windshield | Laminated glass | |||
| 2point seat belt | 2pcs | |||
| Overshadowing Curtain | ||||
| Enclosure | PVC | |||
| Large Seats: | ||||
| 1) backrest and cushion | Sponge + artificial leather | |||
| 2) armrest | Aluminum | |||
| Floor | Bamboo + artificial leather | |||
| Cup drinker holder | 1pc | |||
| Inner rear view mirror | One piece per cart in the middle of the windshield | |||
| Side rear view mirror | Two pieces per cart | |||
| Electric system | ||||
| Lighting system and horn | Front: 2 Headlights (High beam and dipped headlight), 2 front turn signals, 2 fog lights; Back: 2 rear turn signals, 2 taillights(position light & brake light), 1 fog light, 1 reverse light),with DC-DC converter (converting from 48V to 12V) , horn. | |||
| License plate light | 12V | |||
| Dashboard | Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, fog light switch; Headlight switch, turn signal switch, wiper switch, horn button; | |||
| Audio System | Radio and MP3 receiver | |||
| CD player to replace MP3 receiver | ||||
| Microphone | Wired | |||
| Speaker | 4pcs | |||
| Reversing alarm | ||||
| Switch assembly | Lights switch, horn switch, wiper switch | |||
| Wiper | 12V | |||
| with water sprayer | ||||
| Solar panel | 1pc, 72V/270W | |||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Right hand drive system | ||||
| Electrical power steering | ||||
| Brake system | Four wheel hydraulic drum brake+hand parking brake | |||
| Front disc brake and rear drum brake, with vacuum booster | ||||
| Transmission system | Clutch, 4F+1R gear box, transmission shaft | Automatic drive system(Stepless speed change system) | Automatic drive system(Stepless speed change system) | Clutch, 4F+1R gear box, transmission shaft |
| Front suspension | Independent suspension, helix spring + shock absorber | |||
| Rear suspension | rear plate spring + shock absorber | |||
| Wheel & Tyre | 4J*12 Steel wheel, wheel cap, 155R12,8PR | |||
| 4J*12 Aluminum wheel, | ||||
Color

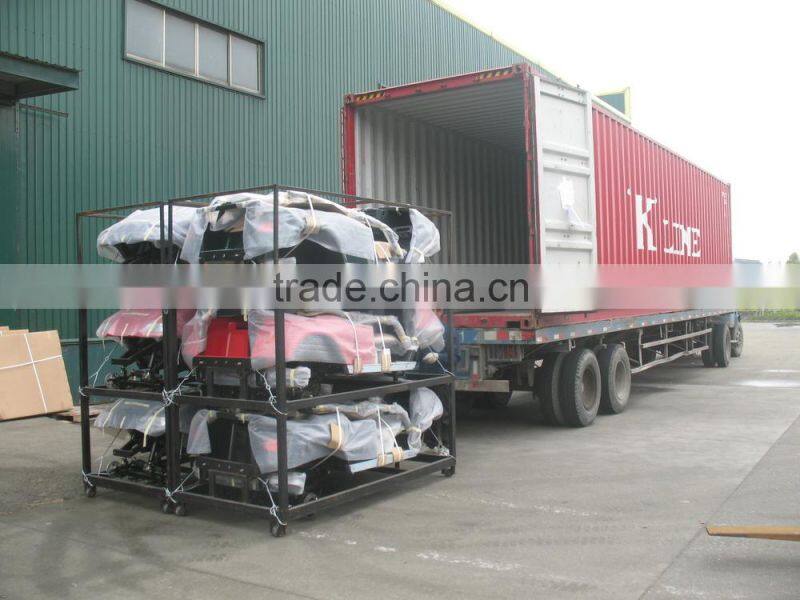

Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 2units | 1unit |
| Qty/40' | 4units | 2units |
| Qty/40'HQ | 4units | 2units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
