CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB thumbnail-1
CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description
CE   approved   Special   Electric   ambulance   golf car for cruiser,
----EG2028TB1


Model
EG2028TB1
Battery
8xT105(185Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1268 (400A@2minutes)
Dimensions
Overall dimensions (mm)
2670X1180X1800
Min. ground clearance (mm)
120
Wheelbase (mm)
1700
Front wheel tread (mm)
855
Rear wheel tread (mm)
975
Electric system
Lighting system and horn
2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Charger
China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Mechanical brake
Accelerator
Stepless speed change
Suspension system
Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio 12.76:1
Wheel & Tyre
10x6 Alumimum wheel & 205/50-10 4PR
Body and Frame
Frame
Welded steel framework with phosphate+electro-coating treatment
Body
PP plastic front body + PP plastic rear body
Roof
Injected plastic
Windshield
one-piece Organic glass
Performance
Passenger capacity
4
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>80
Max. speed @12.76:1 gear ratio
32
Minimum turning radius (m)
3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio
20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio
15%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
320kgs
Net weight
N/A

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

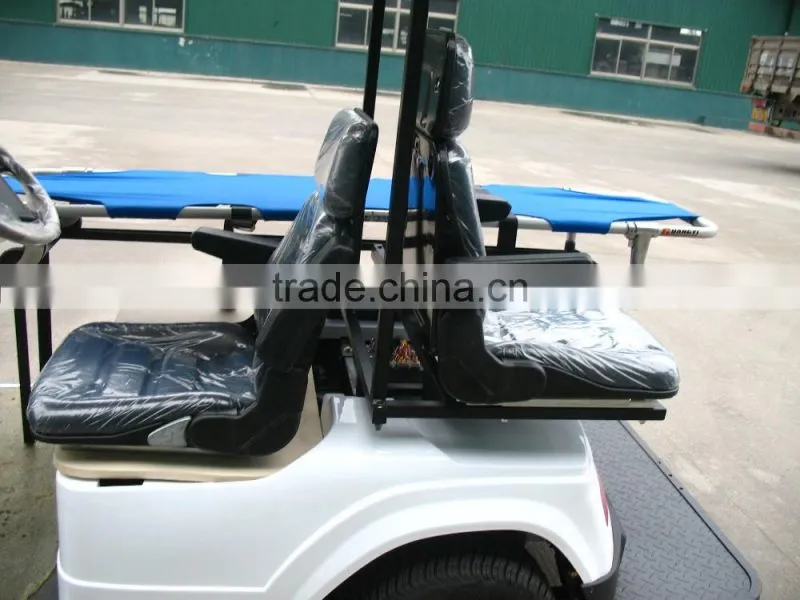

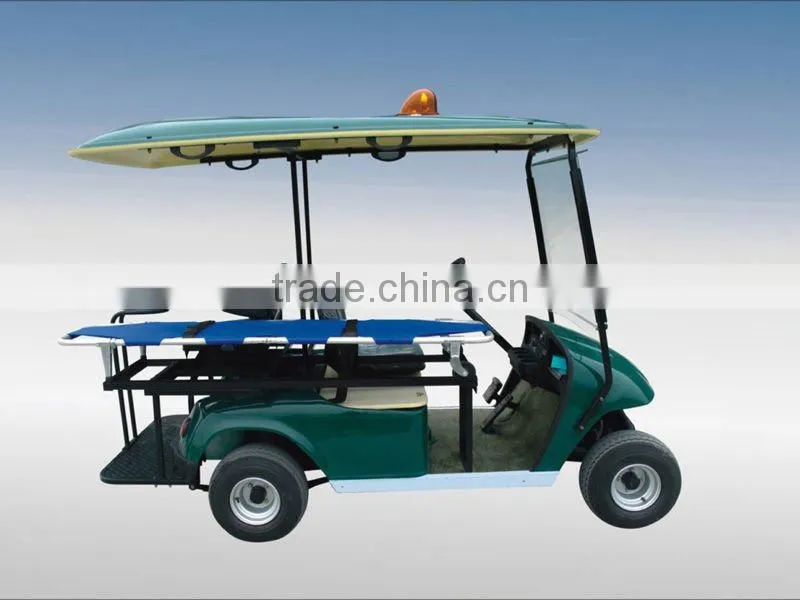

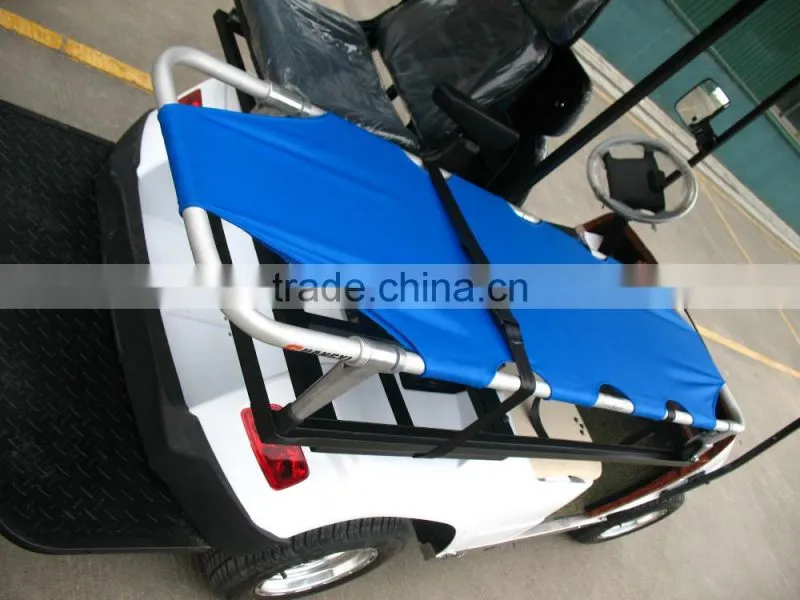

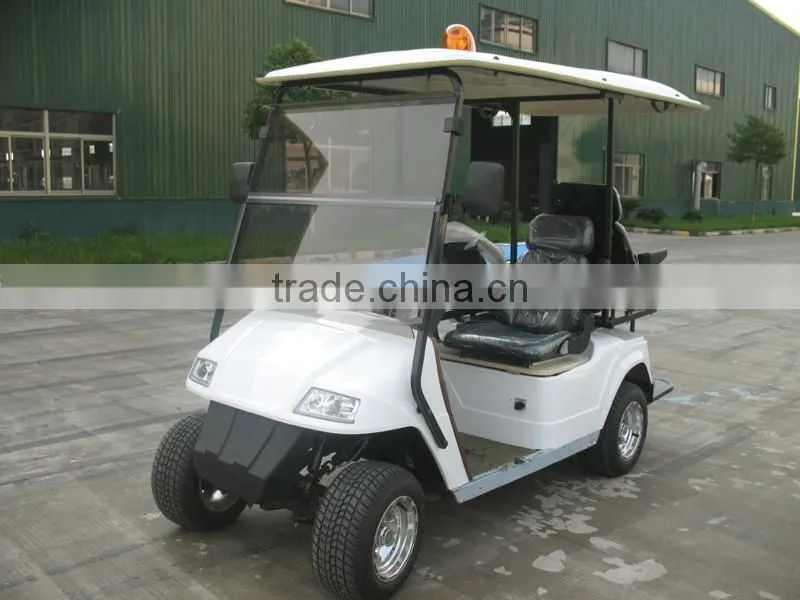

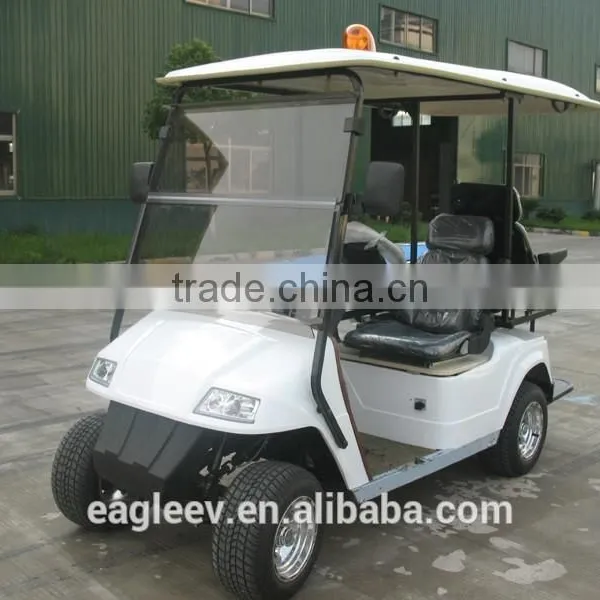

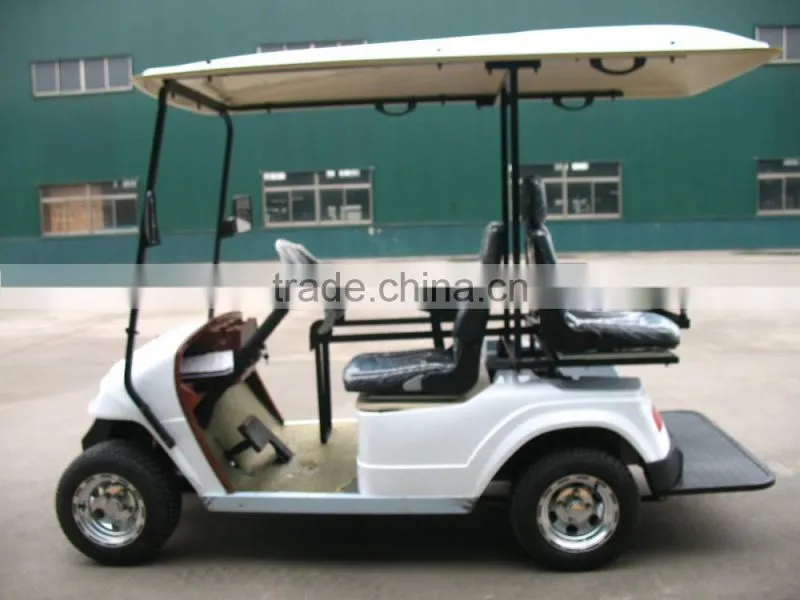

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Disassembled
20'ft GP
6units



40'ft GP
14units
40'HQ
21units
