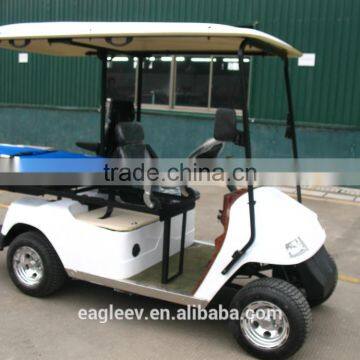

CE Approved Special Electric Ambulance Golf Car for Cruiser, EG2028TB1 Electric Car Without Driving Licence

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Seats	1 - 2		Fuel Type	Electric
Battery Voltage	48V		Certification	CE

Product Description

CE approved Special Electric ambulance golf car for cruiser,

_{----EG2028TB1}

Model	EG2028TB1
Battery	8xT105(185Ah@5hr rate)
Motor	3.8KW Chinese motor
Controller	Curtis 1268 (400A@2minutes)

Dimensions
Overall dimensions (mm)	2670X1180X1800
Min. ground clearance (mm)	120
Wheelbase (mm)	1700
Front wheel tread (mm)	855
Rear wheel tread (mm)	975

Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Charger	China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A

Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR

Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	Injected plastic
Windshield	one-piece Organic glass

Performance
Passenger capacity	4
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>80
Max. speed @12.76:1 gear ratio	32
Minimum turning radius (m)	3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio	20%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	15%
Max. movement after brake at speed of 20km/h	≤4m
Max. loading weight	320kgs
Net weight	N/A

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Detailed Images

Packing & Delivery

Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

Container loading qty	Disassembled
20'ft GP	6units
40'ft GP	14units
40'HQ	21units

Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

1) Customization is available

2) 13 months warranty from shipping date

3) FOC spare parts provided
