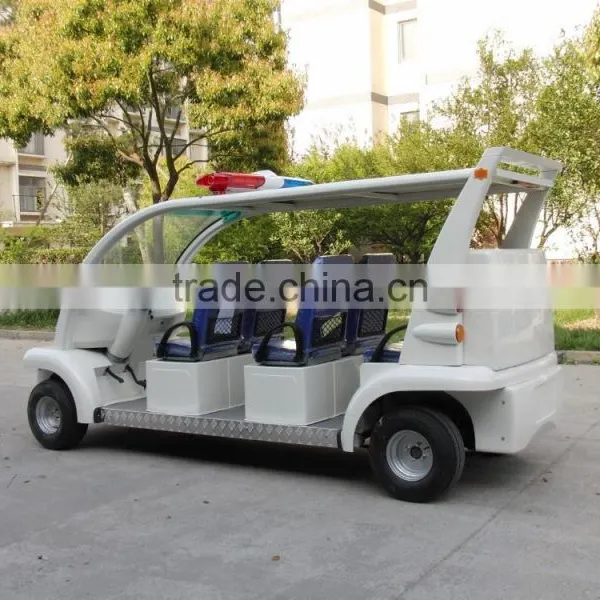

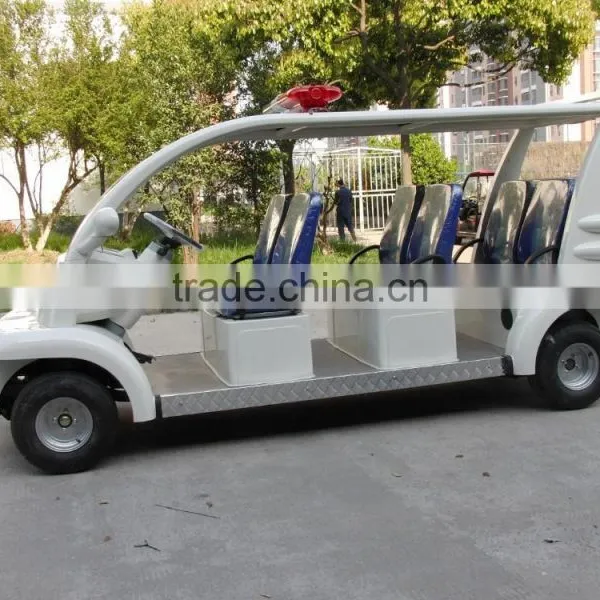

Help Center6 Seats Electric Personal Transporter , EG6063KB, CE Approved
Related Products
-
Electric Personal Carrier, 4 Seats, CE ApprovedNegotiableMOQ: 1 Unit -
Low Speed 6 Seats Electric People Mover Car, CE ApprovedNegotiableMOQ: 1 Unit
-
2 Seats Electric Passenger Car for Personnel Carrier , CE ApprovedNegotiableMOQ: 1 Unit
-
4 Seats Electric Passenger Car , CE ApprovedNegotiableMOQ: 1 Unit
-
Strong Shape Electric Jeep, 5 Seats, CE ApprovedNegotiableMOQ: 1 Unit
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor | Rated power 4KW-5KW (5.4HP-6.8HP), Chinese brand or ADC brand |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger |
High frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 6 |
Range (loaded) (km)* |
up to 75 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4.5 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 480 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 3950x1400x1900 (LxWxH) |
| Min.ground clearance (mm) | 140 |
| Wheelbase (mm) | 2650 |
| Front wheel tread (mm) | 1160 |
| Rear wheel tread (mm) | 1150 |
| Item | Description |
| Frame & Chassis | Welded steel framework with sand blasting and painting |
| Body | FRP and Plastic |
| Roof | FRP with steel frame, with roof handle |
| Windshield | Laminated glass with wiper |
| Hard door | Aluminum, with lock |
| Seat | Reborn sponge with artificial leather, high back |
| Rear storage box | Plastic |
| Floor | Bamboo floor with Skidproof leather |
| Dashboard | FRP, with F/R switch, emergency light switch, digital meter, combination switch, storage box (2), etc.. |
| Side rear view mirror | 2pcs |
| Item | Description |
| Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | including switch for headlight, turning light, wiper and horn |
| DC/DC converter | 48V/12V |
| Digital Meter | with Current meter, voltometer, speedometer, odometer and various indicators |
| Audio system | Radio with MP3 receiver and 2 waterproof speaker |
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Independent suspension |
| Rear suspension | integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, steel differential case, 12.49:1 gear ratio |
| Wheel & Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Inner rear view mirror | 5 | CD player |
| 2 | Battery watering pipe | 6 | Wired mircophone |
| 3 | Water pump (handle) | 7 | Aluminum rim, 10x6 |
| 4 | Rain cover | 8 | |
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 2 | |
| 40'ft GP | 6 | |
| 40'HQ | 6 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.
With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
