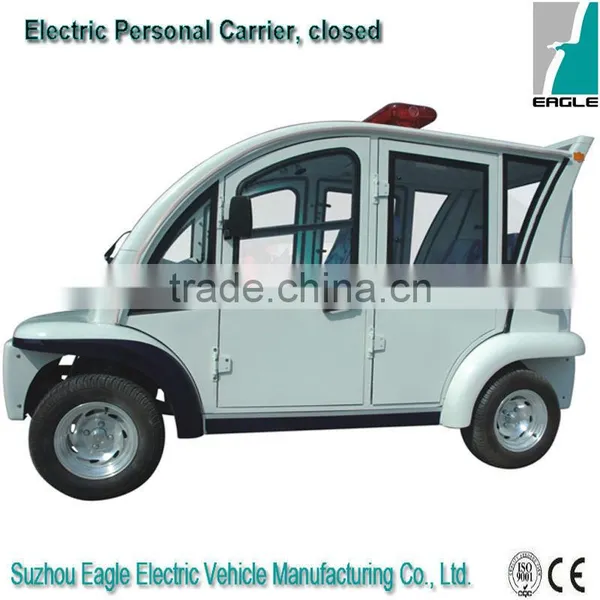

4 Seats Electric Passenger Car , CE Approved

4 Seats Electric Passenger Car , CE Approved thumbnail-1
4 Seats Electric Passenger Car , CE Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, passenger car
Fuel:
Electric
Gear Box:
Automatic
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, passenger car
Fuel Electric
Gear Box Automatic
Made In China
Steering Left
Drive RWD
Place of Origin Jiangsu, China
Model EG6043KF

4 seats Electric passenger car , CE approved

Product Description



Model EG6043KF EG6043KF01 EG6043KF04 EG6043KF06
System 48V/4KW Series 48V/4KW Sepex 48V/5.3KW Sepex 48V/5KW AC System
Key Components
Battery 8xT105(185Ah@5hr rate) 8xT105(185Ah@5hr rate) 8xT105(185Ah@5hr rate) 8xT105(185Ah@5hr rate)
Motor 3.8KW Chinese motor 3.8KW Chinese motor 5.3KW Chinese Motor 5KW Chinese Motor
Controller Curtis 1204 (275A@2minutes) Curtis 1268 (400A@2minutes) Curtis 1268 (400A@2minutes Zapi ACE2(400A@2minute)
Performance
Passenger capacity 4 4 4 4
Range (loaded) based on flat road at a speed of 20km/h (km)* >50 >50 >50 >65
Max. speed @12.49:1 gear ratio 30 32 32 32
Max. speed @10.25:1 gear ratio / 40 40  ---
Minimum turning radius (m) 4 4 4 4
Max. climbing ability (loaded)   @ 12.49:1 gear ratio 20% 20% 20% 20%
Max. climbing ability (loaded)   @ 10.25:1 gear ratio 15% 15% 15%  ---
Max. movement after brake at speed of 20km/h ≤4m ≤4m ≤4m ≤4m
Max. loading weight 320kgs 320kgs 320kgs 320kgs
Net weight 900kgs 902kgs 902kgs 910kgs
Dimensions
Overall dimensions (mm) 3060x1400x1900
Min. ground clearance (mm) 155
Wheelbase (mm) 2080
Front wheel tread (mm) 1210
Rear wheel tread (mm) 1160
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame Welded steel framework with sand blasting+paint treatment
Body Fibreglass + Plastic
Hard door Steel
Roof Fibreglass
Windshield Laminated glass
3 point seat belt 4pcs
Large Seats:
     1) backrest and cushion Sponge + artificial leather
     2) armrest Soft expanded plastic
Hand holder for rear passenger 2pcs, fixed in the back of front backrest
Rear storage box Steel
Floor Bamboo + artificial leather
Inner rear view mirror One piece per cart in the middle of the windshield
Side rear view mirror Two pieces per cart
Battery watering system,48V system without water supply tool
Manual Pump water supply tool (other water supply tools are available)
Police light with loud speaker /
Electric system
Lighting system and horn 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Dashboard forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items
Audio System Radio and MP3 receiver
CD player to replace Radio
Microphone Wired
Speaker 2pcs
Reversing alarm
Switch assembly Lights switch, horn switch, wiper switch
Wiper 12V
Charger China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system Four wheel hydraulic drum brake+foot parking brake
Accelerator Stepless speed change
Front suspension Independent suspension, helix spring + shock absorber
Rear suspension rear plate spring + shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Gear ratio12.49:1
Wheel & Tyre 225/55B12 6PR tire, 12X7 aluminum wheel



Color

 4 seats Electric passenger car , CE approved

Packaging & Shipping



Container loading qty Disassembled Assembled
Qty/20' / 1unit
Qty/40' / 3units

 4 seats Electric passenger car , CE approved4 seats Electric passenger car , CE approved

Company Information

 4 seats Electric passenger car , CE approved

Certifications

 4 seats Electric passenger car , CE approved

After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
