Home > Products > Electric Personal carrier > low speed 6 seats Electric people mover car, CE approved

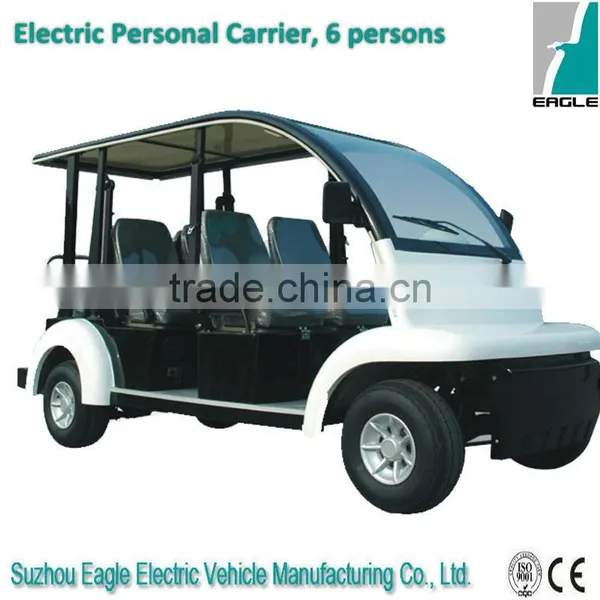

low speed 6 seats Electric people mover car, CE approved
Negotiable
/ Unit
1 Unit(Min.Order)
- 300 Unit / Units per Month
- Shanghai
- T/T
You May Like
- assemble 2WD gasoline 1000cc mini truck with SKD/CKD parts Quality Choice
- assemble 1000cc 2WD mini cargo truck with SKD/CKD parts
- assemble 1000cc single/double cabin cargo truck with SKD/CKD parts
- assemble RWD petrol double cab mini truck with SKD/CKD parts Quality Choice
- assemble RHD/LHD RWD double cabin gasoline mini truck with SKD/CKD parts
- assemble RHD/LHD rear wheel drive mini double cabin truck with SKD/CKD parts
Product Details
Type: | Other, passenger car | Fuel: | Electric | Gear Box: | Automatic |
Made In: | China | Steering: | Left | Drive: | RWD |
Place of Origin: | Jiangsu, China | Model: | EG6062K |
Product Description
low speed 6 seats Electric people mover car, CE approved
Product Description
Model | EG6062K | EG6062K01 | EG6062K02 | EG6062K03 |
System | 48V/4KW Series | 48V/4KW Sepex | 48V/5KW Sepex | 48V/4KW AC system |
Key Components | ||||
Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
Motor | 3.8KW Chinese motor for 60minutes | 3.8KW Chinese motor for 60minutes | 5KW motor for 60minutes | 4KW Chinese motor for 60minutes |
Controller | Curtis 1204 (275A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1244 (400A@2minutes) | Curtis 1236 (350A@2minutes) |
Performance | ||||
Passenger capacity | 6 | 6 | 6 | 6 |
Range (loaded) based on flat road at a speed of 20km/h (km) | >70 | >70 | >70 | >90 |
Max. speed @12.49:1 gear ratio | 30 | 32 | 28 | 40 |
Max. speed @10.25:1 gear ratio | / | 40 | 32 | -- |
Minimum turning radius (m) | 4 | 4 | 4 | 4 |
Max. climbing ability (loaded) @ 12.49:1 gear ratio | 20% | 20% | 25% | 20% |
Max. climbing ability (loaded) @ 10.25:1 gear ratio | 15% | 15% | 20% | -- |
Max. movement after brake | ≤4m | ≤4m | ≤4m | ≤4m |
Max. loading weight | 450kgs | 450kgs | 450kgs | 450kgs |
Net weight | 740kgs | 740kgs | 740kgs | 740kgs |
Dimensions | ||||
Overall dimensions (mm) | 3750X1400X1810 | |||
Min. ground clearance (mm) | 140 | |||
Wheelbase (mm) | 2450 | |||
Front wheel tread (mm) | 1160 | |||
Rear wheel tread (mm) | 1150 | |||
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
Body and Frame | ||||
Frame | Welded steel framework with sand blasting+paint treatment | |||
Body | Fibreglass | |||
Roof | Fibreglass+steel frame | |||
Windshield | Laminated glass | |||
3point seat belt | 6pcs | |||
Large Seats: | ||||
1) backrest and cushion | Sponge + artificial leather | |||
2) armrest | Soft expanded plastic | |||
Floor | Bamboo + artificial leather | |||
Inner rear view mirror | One piece per cart in the middle of the windshield | |||
Side rear view mirror | Two pieces per cart | |||
Rain cover | PVC | |||
Electric system | ||||
Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. | |||
Dashboard | forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items | |||
Audio System | Radio and tape player | |||
CD player to replace tape player | ||||
Microphone | Wired | |||
Speaker | 2pcs | |||
Reversing alarm | ||||
Switch assembly | Lights switch, horn switch, wiper switch | |||
Wiper | 12V | |||
Solar panel | 48V/115W | |||
Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |||
On-board charger, input 85V~265V, 45~65Hz, output 48V/18A | ||||
Steering and Suspension | ||||
Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
Brake system | Four wheel hydraulic drum brake+foot parking brake | |||
Accelerator | Stepless speed change | |||
Front suspension | Independent suspension, helix spring + shock absorber | |||
Rear suspension | rear plate spring + shock absorber | |||
Driving mode | Rear axle two stage deceleration, motor direct driving | |||
Rear axle | Integrated, Gear ratio12.49:1 | |||
Integrated, Gear ratio10.25:1 | ||||
Wheel & Tyre | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap | |||
10X7 Aluminum Wheel |
Color
Packaging & Shipping
Container loading qty | Disassembled | Assembled |
Qty/20' | 2units | 1unit |
Qty/40' | 6units | 3units |
Qty/40'HQ | 6units | 3units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
Our web
/
Contact Us
- Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
- Contact nameKevin Song
- Phone0086-512-65960151
- AddressNo.99, Yin Xin Road Suzhou,Jiangsu
