good cheap double column vertical lathe machine for sale
lathe
DMTG, SMTCL
ISO9001: 2008
Delivery in 30 days
Free spare parts attached
This machine is a kind of heavy duty lathe machine price, the machine has two vertical tool heads. It can be used for rough, finish machining excircle, inner bore, end face and internal and external cone, etc.
No. |
Item |
Unit |
CK5240 |
CK5225 |
CK5231 |
|
1 |
Working table diameter |
mm |
3200 |
2250 |
2800 |
|
2 |
Max. turning diameter |
mm |
4000 |
2500 |
3150 |
|
3 |
Max. job height |
mm |
2000 |
1600 |
1600 |
|
4 |
Max. job weight |
t |
20 |
10 |
10 |
|
5 |
Max. cutting force of tool head |
Right tool head |
kg |
3500 |
3500 |
3500 |
Left tool head |
kg |
3000 |
3000 |
3000 |
||
6 |
Max. total cutting force |
kg |
6300 |
6300 |
6300 |
|
7 |
Max. twisting moment of working table |
Kg/m |
6300 |
6300 |
6300 |
|
8 |
Working table variable speed degrees |
Degree |
16 |
16 |
16 |
|
9 |
Working table variable speed range |
r/min |
2~63 |
2-63 |
2~63 |
|
10 |
Feed amount degrees |
Degree |
18 |
18 |
18 |
|
11 |
Feed speed range |
mm/min |
0.25~90 |
0.25-90 |
0.25~90 |
|
12 |
Beam stroke |
mm |
1650 |
1250 |
1250 |
|
13 |
Tool head stroke |
Horizontal |
mm |
2150 |
1400 |
1730 |
Vertical |
mm |
1250 |
1000 |
1000 |
||
14 |
Beam moving speed |
mm/min |
350 |
350 |
350 |
|
15 |
Tool head quick moving speed |
mm/min |
1560 |
1560 |
1560 |
|
16 |
Max. rotation degree of tool head |
Degree |
+-30o |
+-30o |
+-30o |
|
17 |
Tool size |
mm |
40x50 |
40x50 |
40x50 |
|
18 |
Main motor power |
kw |
55 |
55 |
55 |
|
19 |
Overall dimension |
mm |
6680x5000 x5975 |
5180x4560 x4680 |
5840x5040 x4680 |
|
20 |
Overall weight |
t |
40 |
32 |
36 |
|
|
Note: When the frequency of power supply is 60Hz, all motors speed increased by 20%, namely the working table speed, feed, quick moving and beams speed increased 20%. | ||||||

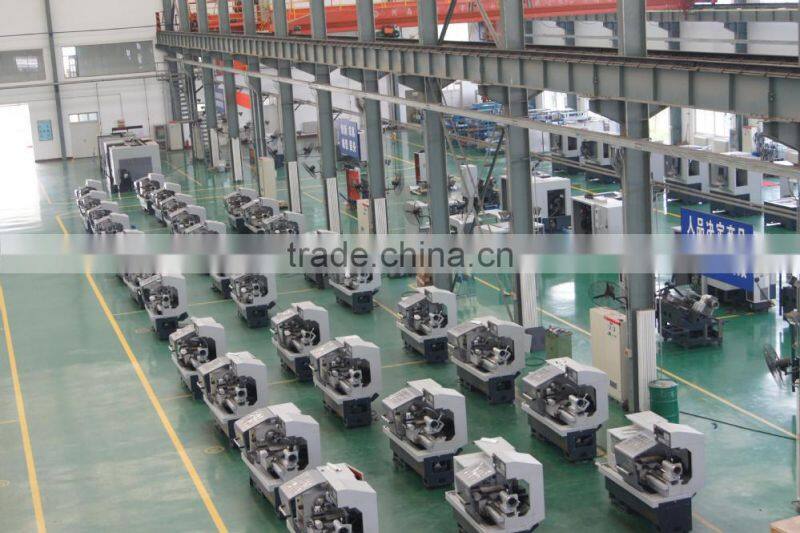

We have 20 years experience in manufacturing vertical lathe, technology origin from Japan, located in Zhuanghe, Dalian, Liaoning Province, Northeast of China.
We sincerely welcome customers from all over the world to visit our fantroy in Dalian! Dalian is near to Beijing and Shanghai, it takes 1 hour from Beijing and 1.5 hours from Shanghai, by air.

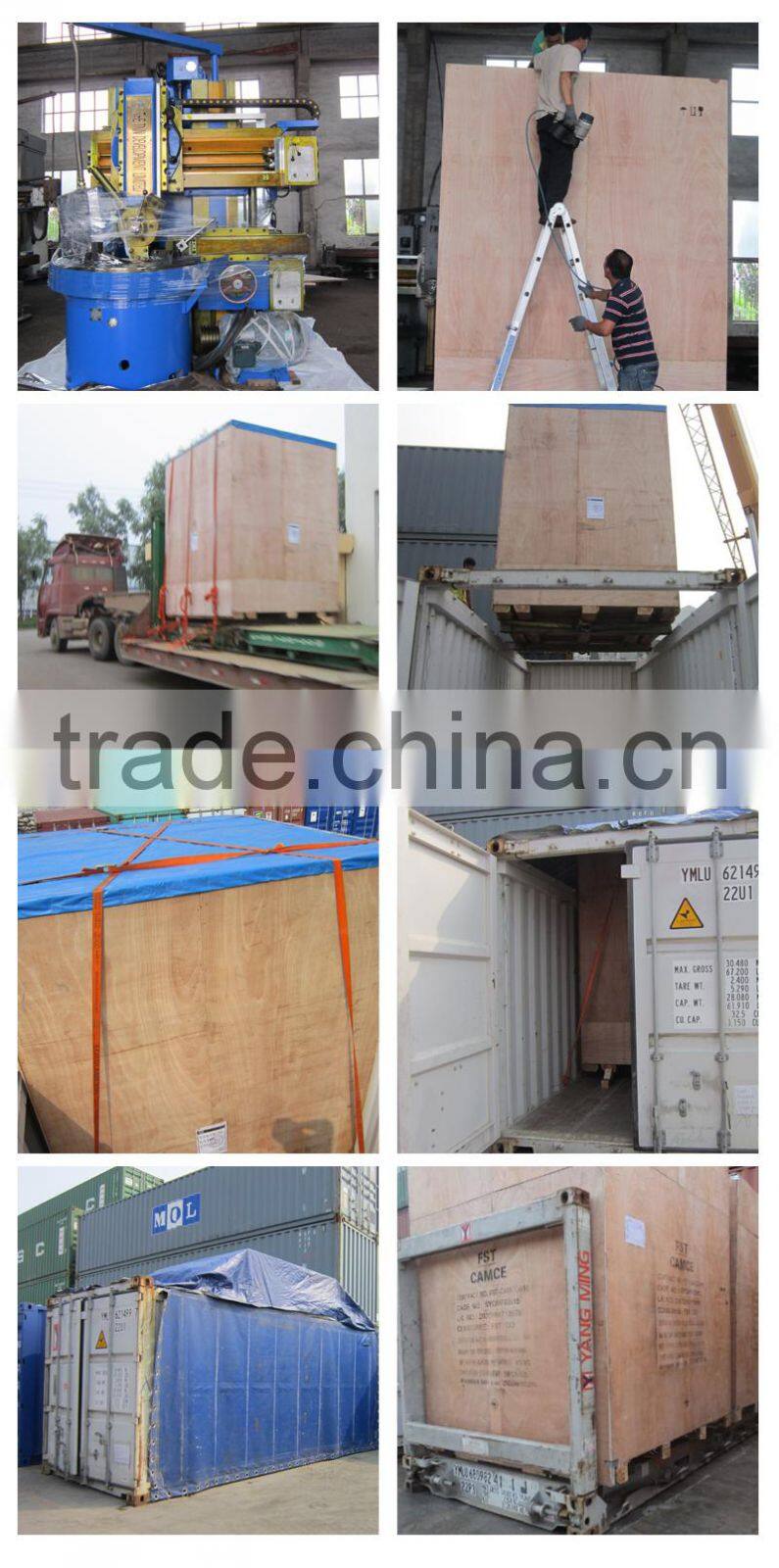

Professional export packaging with wooden case and waterproof protection. We will fix the wooden case strongly and cover it with a big rain cloth in the container.
-Our engineers will guide the installation if customer need. Customer need to pay air tickets, food, hotel and salary.
-During warranty period, if any parts broken under proper operation, we will send new one for free.
-After one year, non-profit spare parts will be send immediately when customer need.
-We provide life-long technical support, providing solutions for customers' technical problems with in 72 hours.

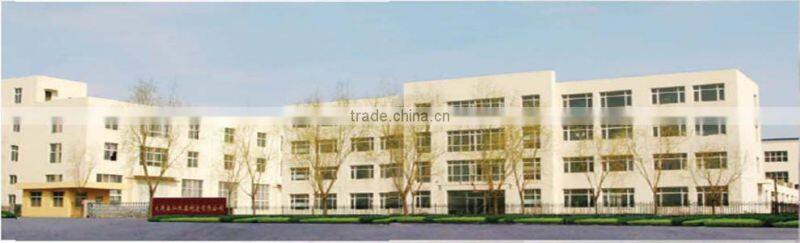

TNN is an ISO9001:2008 certified company, founded in 1998, located in CBD of Dalian city.

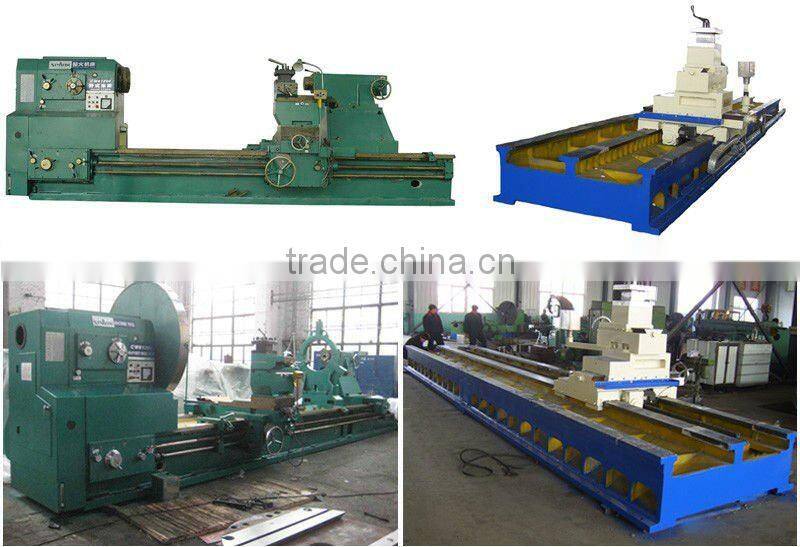

Other products you may interested in
The TNN Development Limited, as the exclusive Oversea Company of Dalian Xin Hong Machinery Co., Ltd., is located in Dalian, Northeast of China. We manufacture both Normal and CNC Vertical Lathe Machine for over 15 years.

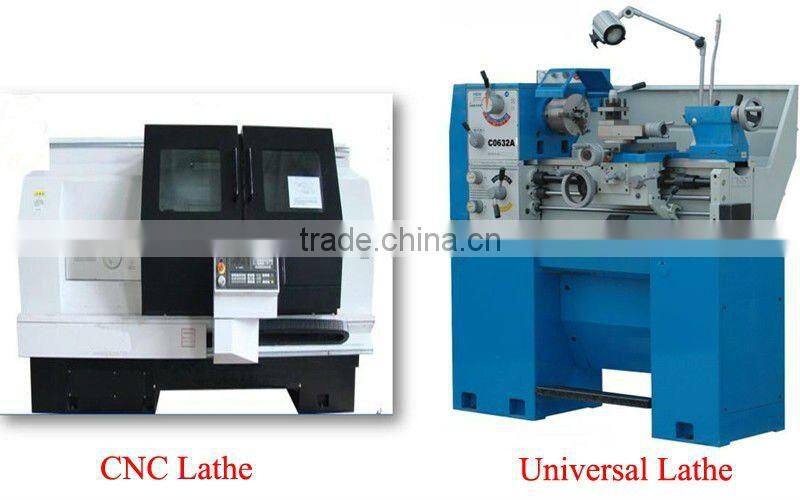

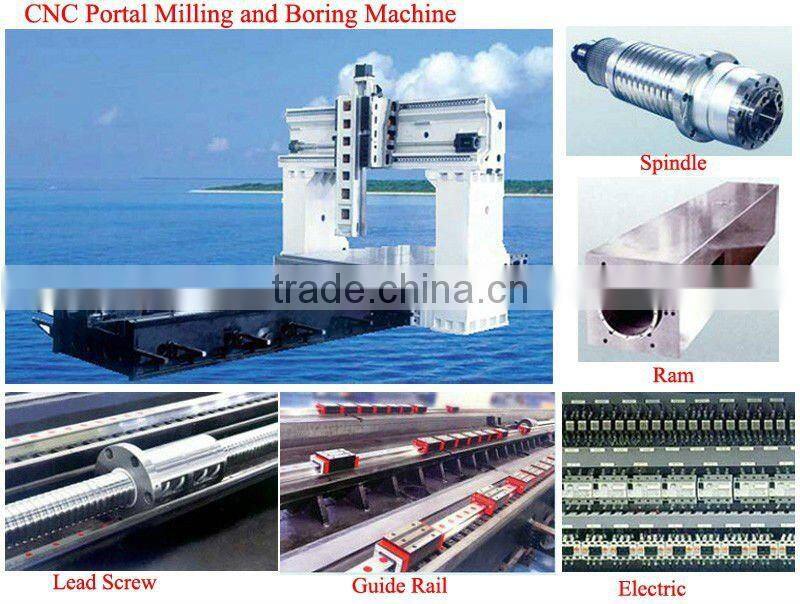

We also supply CNC lathe, Milling and Boring machine, Vertical Machine Center, Truning and Milling Center from SMTCL and DMTG; many kinds of small machine tools from Shandong province.
Welcome all customers from all over the world to visit us in Dalian!
For more information, please feel free to contact with us at any time!
