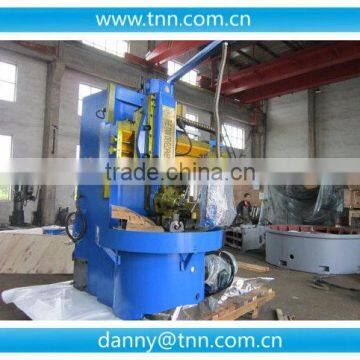

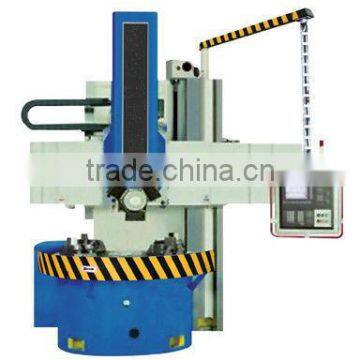

S36-cheapest single column vertical turning machine for sale from Dalian
- 10 Set / Sets per Month
- Dalian
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
S34-CK5112A-CK5125A Series CNC vertical lathe from Dalian
-
S35-good heavy duty double column vertical lathe machine CK5225-CK5280 for sale
-
good cheap universal double column vertical lathe machine
-
8 meters large double column vertical lathe machine
-
CK5225 CNC double column vertical lathe
-
good cheap universal double column vertical turning lathe machine for sale
Product Details
| Condition | New | Type | Vertical | |
| CNC or Not | Normal | Automatic Grade | Automatic | |
| Max. Swing Diameter | 4000mm | Place of Origin | Liaoning, China | |
| Brand Name | TNN | Model Number | C5112A-C5125A | |
| Voltage | 380V, 50Hz, 3 phase | Power(W) | according to model | |
| Dimension(L*W*H) | according to model | Weight | 4-100t | |
| Certification | ISO9001 | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
turning machineDelivery in 30 days
Professional packing, loading and fixing
1 year quality guarantee
ISO 9001:2008 certify

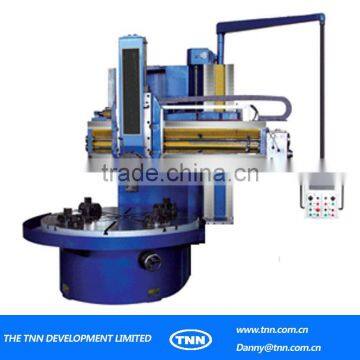

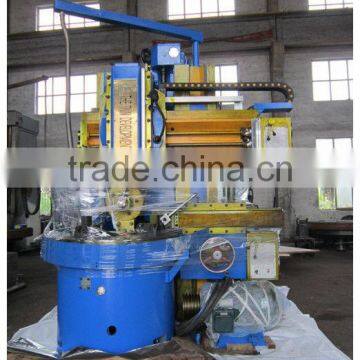

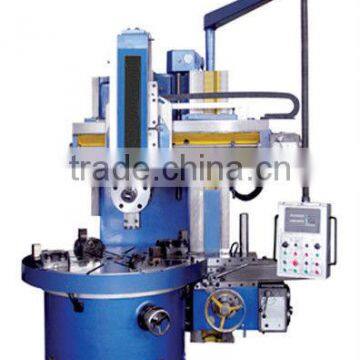

S36-cheapest Single column vertical turning machine for sale from Dalian
turning machine
Delivery in 30 days
Professional packing, loading and fixing
1 year quality guarantee
ISO 9001:2008 certified
Brief Introduction:
This model machine tool is the normal vertical turning machine, have a vertical and lateral knife tool.
For high speed steel tools and hard metal tools processing of black metal, nonferrous metal and some nonmetal materials.
Suitable for following processing:
- Turning inside and outside cylindrical surface and plane.
- Turning inside and outside circular conical surface.
- Grooving and parting off.
- Grilling and chambering hole, reaming.
1. Specifications:
No. | Item | C5112A | C5116A | C5120A | C5123A |
1 | Max. vertical tool head turning diameter: mm | 1250 | 1600 | 2000 | 2300 |
2 | Max. Lateral tool head turning diameter: mm | 1100 | 1400 | 1800 | 2000 |
3 | Working table diameter: mm | 1000 | 1400 | 1800 | 2000 |
4 | Max. job height: mm | 1000 | 1200 | 1250 | 1350 |
5 | Max. job weight: T | 3.2 | 5 | 8 | 10 |
6 | Working table revolving speed range: r/m | 6.3~200 | 5~160 | 3.2~100 | 2.5~80 |
Working table revolving speed degrees | 16 | 16 | 16 | 16 | |
7 | Vertical, Lateral tool head feeding range: mm/min | 0.8~86 | 0.8~86 | 0.8~86 | 0.8~86 |
Vertical, Lateral tool head feeding degrees: | 12 | 12 | 12 | 12 | |
8 | Max. vertical tool head cutting force: N | 20000 | 25000 | 25000 | 25000 |
9 | Max. Lateral tool head cutting force: N | 20000 | 20000 | 20000 | 20000 |
10 | Total cutting force: N | 35000 | 40000 | 40000 | 40000 |
11 | Vertical tool head horizontal stroke: mm | 700 | 915 | 1115 | 1265 |
Vertical tool head vertical stroke: mm | 650 | 800 | 800 | 800 | |
12 | Lateral tool head horizontal stroke: mm | 630 | 630 | 630 | 780 |
Lateral tool head vertical stroke: mm | 900 | 900 | 1150 | 900 | |
13 | Beam stroke: mm | 650 | 650 | 890 | 1000 |
14 | Max. rotation degree of vertical tool head: | 30 | 30 | 30 | 30 |
15 | Vertical, Lateral tool head quick moving speed: m/m | 1.8 | 1.8 | 1.8 | 1.8 |
16 | Beam promotion and demotion speed: m/m | 0.44 | 0.44 | 0.44 | 0.44 |
17 | Main motor power: kw | 18.5 | 22 | 22 | 30 |
18 | Feed motor power: kw | 1.3/1.7 | 1.3/1.7 | 1.3/1.7 | 1.3/1.7 |
19 | Overall dimension: L*W*H | 2300x2277 x3403 | 2660x2660 x3528 | 3135x3070 x3910 |
|
20 | Overall weight: T | 8 | 12 | 17 | 18 |

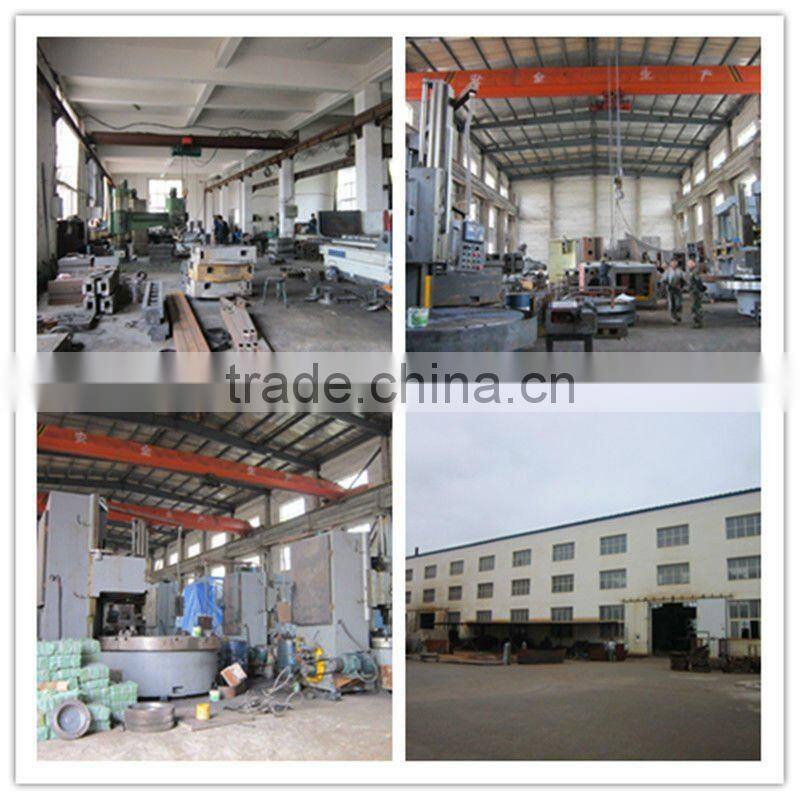

2. Our factory

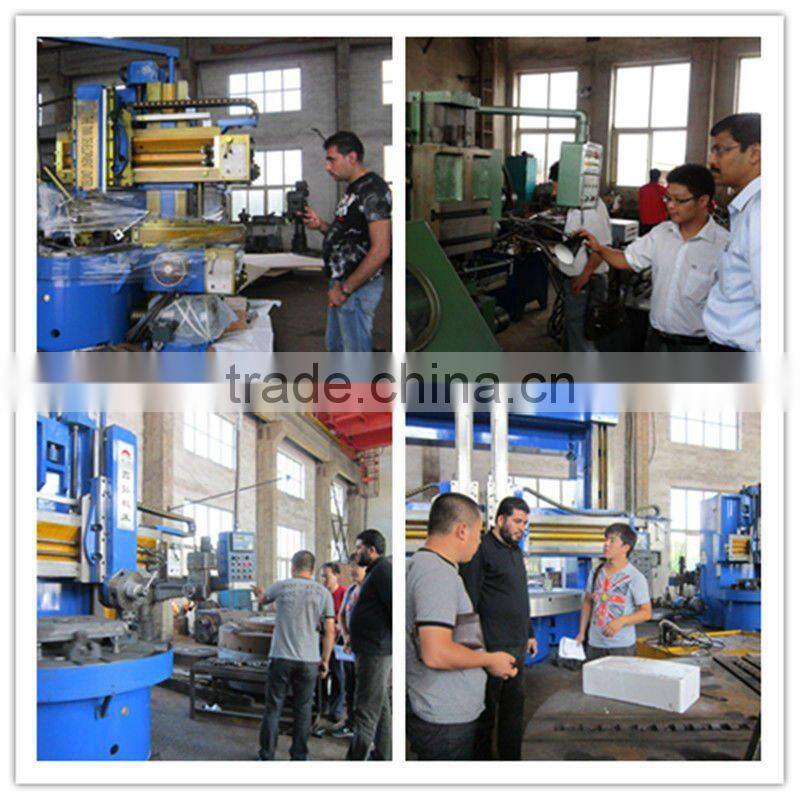

3. Customers visiting

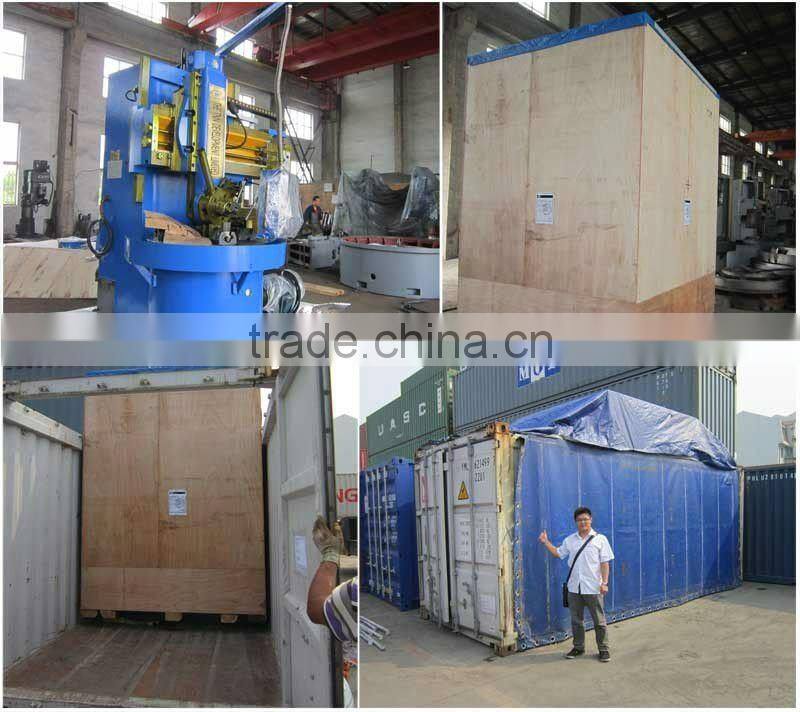

4. Delivery of goods
5. Company activities
6. Certificate

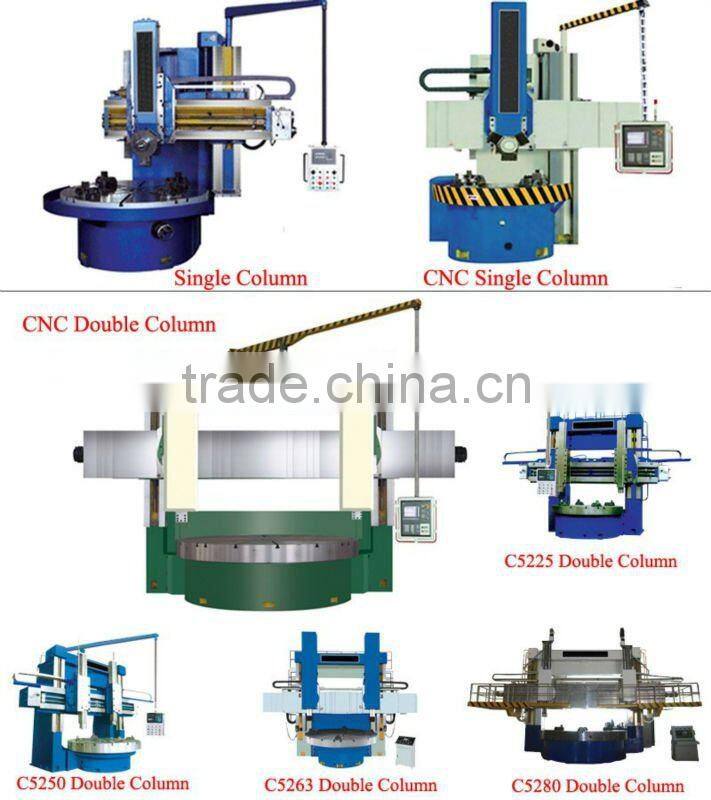

7. Other products you may interested in
TNN Development Ltd. (TNN) is an export-oriented, overseas-funded enterprise established in October, 1998.
TNN has passed ISO 9001: 2008 verification, TNN management and operation has obtained international advanced level.
Our goal is: Make your life better!
***********************************
Contact: Danny Tang
The TNN Development Limited
Tel: 0086 411 82561427
Fax: 0086 411 82561417
