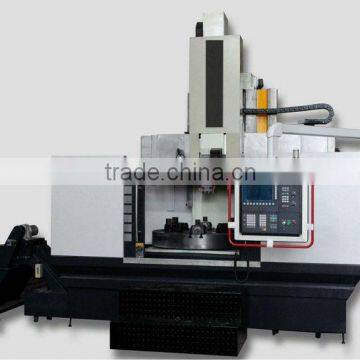

S34-CK5112A-CK5125A Series CNC Vertical Lathe From Dalian

US$ 40,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

Normal

The TNN Development Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not Normal

Automatic Grade Automatic

Max. Swing Diameter 4000mm

Place of Origin Liaoning, China

Brand Name TNN

Model Number C5112A-C5125A

Voltage 380V, 50Hz, 3 phase

Power(W) 20-40KW

Dimension(L*W*H) according to model

Weight according to model

Certification ISO9001

After-sales Service Provided Overseas service center available

S19-Cheapest semi automatic pet bottle blowing machine price for sale

S34-CK5112A-CK5125A Series CNC vertical lathe from Dalian

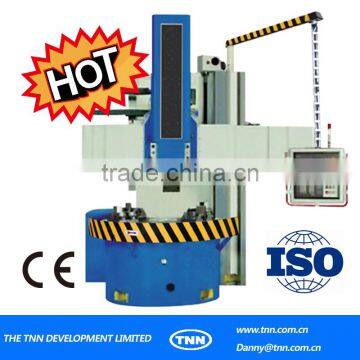

cnc vertical lathe
Delivery in 30 days
Professional packing, loading and fixing
1 year quality guarantee
ISO 9001 certify

Brief Introduction:

This model machine tool is the cnc vertical lathe, have a vertical and lateral knife tool.

For high speed steel tools and hard metal tools processing of black metal, nonferrous metal and some nonmetal materials.

Suitable for following processing:

Product Description

Specification:

No.	Item	CK5112	CK5116	CK5120	CK5123
1	Max. vertical tool head turning diameter: mm	1250	1600	2000	2300
2	Max. Lateral tool head turning diameter: mm	1100	1400	1800	2000
3	Working table diameter: mm	1000	1400	1800	2000
4	Max. job height: mm	1000	1200	1250	1350
5	Max. job weight: T	3.2	5	8	10
6	Working table revolving speed range: r/m	6.3~200	5~160	3.2~100	2.5~80
6	Working table revolving speed degrees	16	16	16	16
7	Vertical, Lateral tool head feeding range: mm/min	0.8~86	0.8~86	0.8~86	0.8~86
7	Vertical, Lateral tool head feeding degrees:	12	12	12	12
8	Max. vertical tool head cutting force: N	20000	25000	25000	25000
9	Max. Lateral tool head cutting force: N	20000	20000	20000	20000
10	Total cutting force: N	35000	40000	40000	40000
11	Vertical tool head horizontal stroke: mm	700	915	1115	1265
11	Vertical tool head vertical stroke: mm	650	800	800	800
12	Lateral tool head horizontal stroke: mm	630	630	630	780
12	Lateral tool head vertical stroke: mm	900	900	1150	900
13	Beam stroke: mm	650	650	890	1000
14	Max. rotation degree of vertical tool head:	30	30	30	30
15	Vertical, Lateral tool head quick moving speed: m/m	1.8	1.8	1.8	1.8
16	Beam promotion and demotion speed: m/m	0.44	0.44	0.44	0.44
17	Main motor power: kw	18.5	22	22	30
18	Feed motor power: kw	1.3/1.7	1.3/1.7	1.3/1.7	1.3/1.7
19	Overall dimension: LWH	2300x2277 x3403	2660x2660 x3528	3135x3070 x3910
20	Overall weight: T	8	12	17	18
