Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > 8 Meters Large Double Column Vertical Lathe Machine

8 Meters Large Double Column Vertical Lathe Machine

US$ 90,000 - 800,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

The TNN Development Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

CNC or Not Normal

Place of Origin Liaoning, China

Brand Name TNN

Model Number C5225-C5280

Specifications

A. large lathe machine
B. 2 vertical tool heads
C. Max. diameter 8000mm
D. cheapest price
E. professional transportation

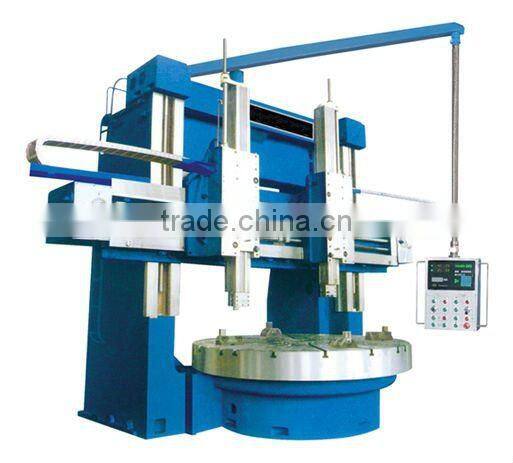

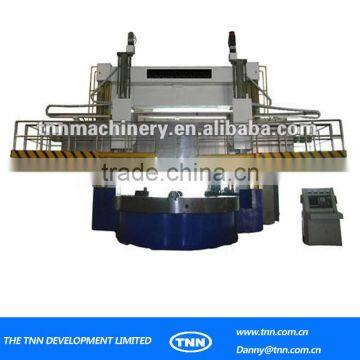

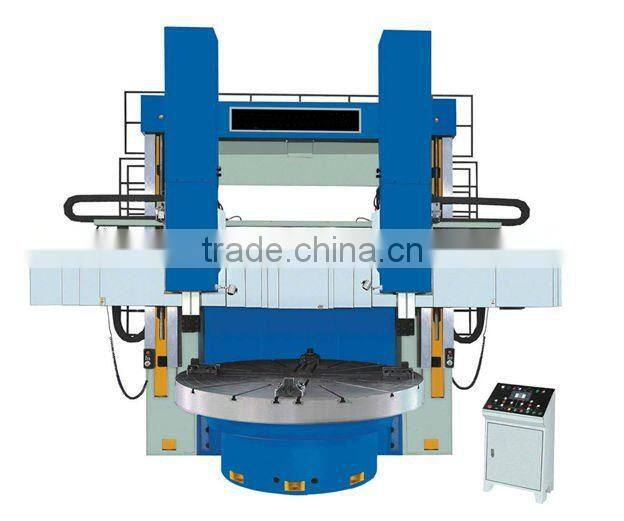

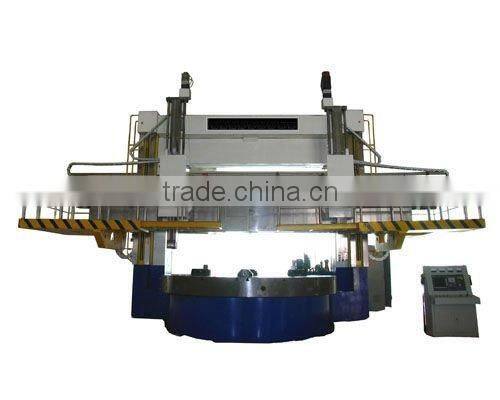

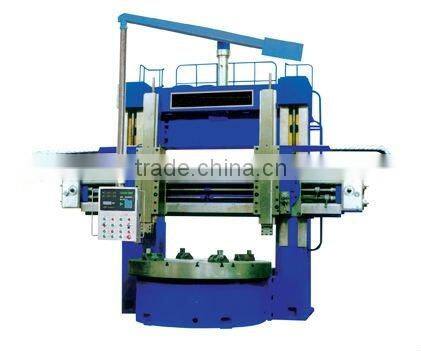

8 meters large double column vertical lathe machine

Brief Introduction:

This machine is a kind of universal double column vertical lathe, the machine has two vertical tool heads. It can be used for rough, finish machining excircle, inner bore, end face and internal and external cone, etc.

Specification:

No.	Item		Unit	C5240	C5225	C5231
1	Working table diameter		mm	3200	2250	2800
2	Max. turning diameter		mm	4000	2500	3150
3	Max. job height		mm	2000	1600	1600
4	Max. job weight		t	20	10	10
5	Max. cutting force of tool head	Right tool head	kg	3500	3500	3500
5	Max. cutting force of tool head	Left tool head	kg	3000	3000	3000
6	Max. total cutting force		kg	6300	6300	6300
7	Max. twisting moment of working table		Kg/m	6300	6300	6300
8	Working table variable speed degrees		Degree	16	16	16
9	Working table variable speed range		r/min	2~63	2-63	2~63
10	Feed amount degrees		Degree	18	18	18
11	Feed speed range		mm/min	0.25~90	0.25-90	0.25~90
12	Beam stroke		mm	1650	1250	1250
13	Tool head stroke	Horizontal	mm	2150	1400	1730
13	Tool head stroke	Vertical	mm	1250	1000	1000
14	Beam moving speed		mm/min	350	350	350
15	Tool head quick moving speed		mm/min	1560	1560	1560
16	Max. rotation degree of tool head		Degree	+-30^o	+-30^o	+-30^o
17	Tool size		mm	40x50	40x50	40x50
18	Main motor power		kw	55	55	55
19	Overall dimension		mm	6680x5000 x5975	5180x4560 x4680	5840x5040 x4680
20	Overall weight		t	40	32	36
Note: When the frequency of power supply is 60Hz, all motors speed increased by 20%, namely the working table speed, feed, quick moving and beams speed increased 20%.
