11mm Fiberglass Push Pull Rod Wire Pulling Duct Rods And Fiberglass Duct Rodders

FOB Price

USD $100 - $333 / Set

2 Sets(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port SHANGHAI
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	XINYA	Model Number:	BCD
Application:	cable push pull	Surface Treatment:	Smooth	Technique:	Pultrusion
Dimensions:	Customizable

Product Description

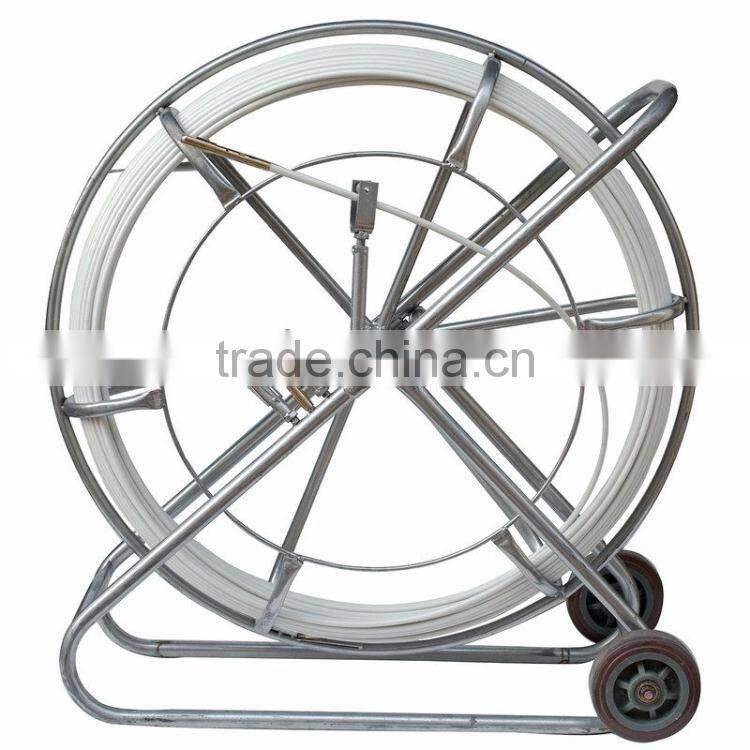

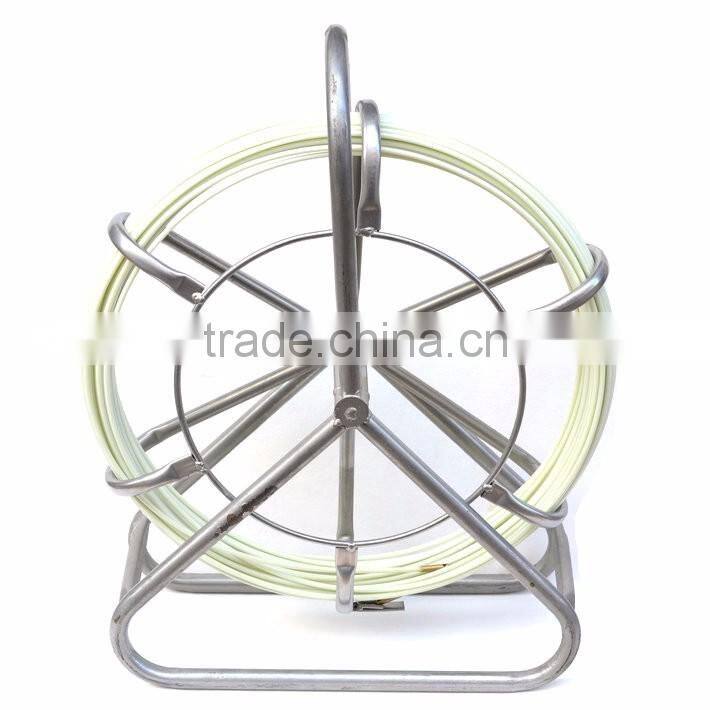

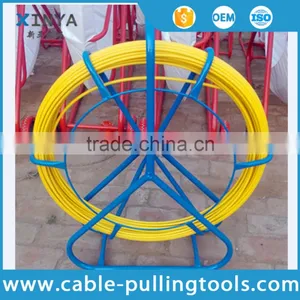

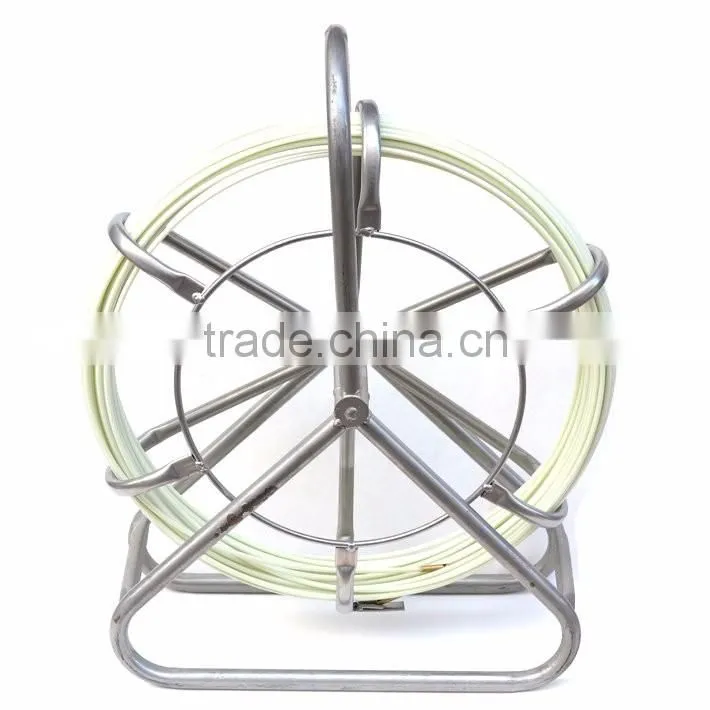

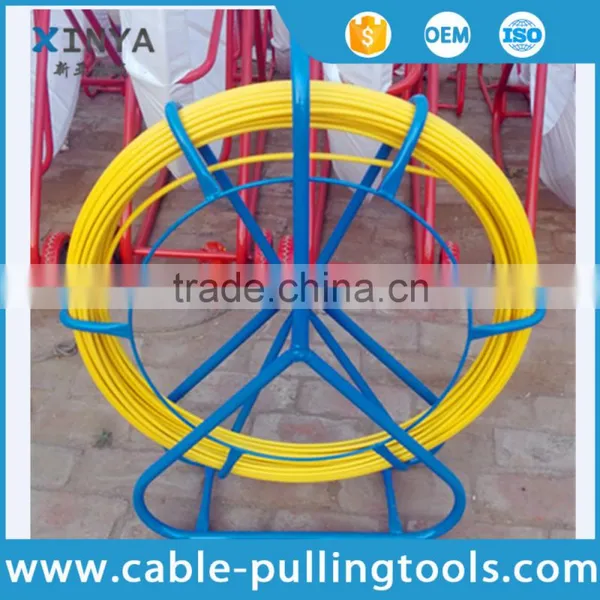

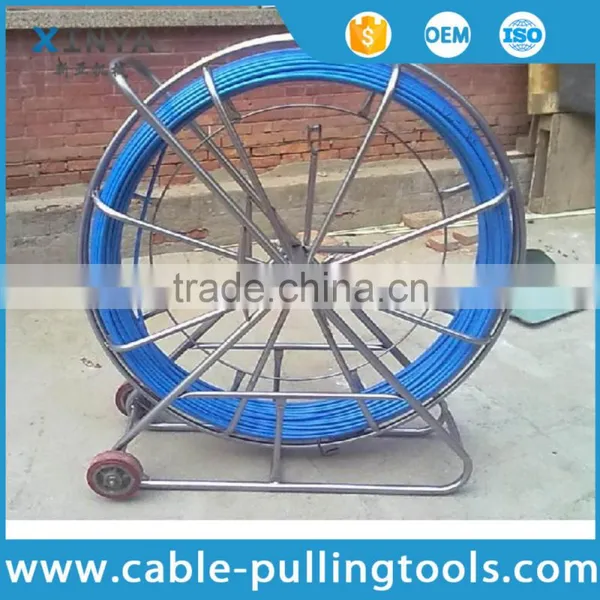

11mm Fiberglass Push Pull Rod Wire Pulling Duct Rods And Fiberglass Duct Rodders

Application

1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2.Fiberglass rod is lightweight and flexible.

3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;

Features

1.Strong non-conductive fiberglass rod construction

2.Stainless steel drawing head

3.For longer conduit runs and underground duct

4.Rugged tubular steel reel with adjustable position.

5.Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod.

6.Duct rods/duct rodders have Many applications, not only pulling the cable but also pulling electric tools, and it repair is very easy, and available.

Technical Data of Solid,Hollow Fiberglass Round Rods/FRP Rod

Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
	Rod Length (m)	30~500
	Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
	Wheel Diameter(mm)	300mm
	Wall thickness of Metal Frame	2.2mm
	Color	blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
	Wheel	rubber
	Brake	Yes
	Drawing head	copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packaging	Inside	plastic woven strip wind around the frame
Packaging	Outside	Wooden pallet and Wooden box
