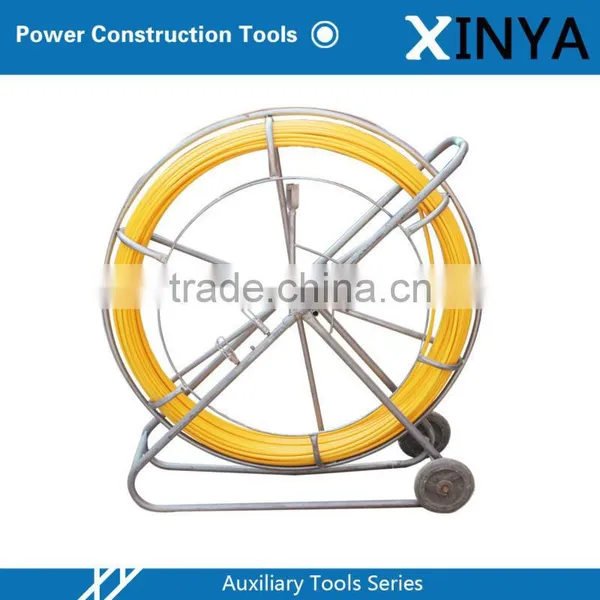

Flexible Fiberglass Cable Duct Rods

Specifications

Flexible Fiberglass Cable Duct Rods
1)Material:FRP
2)High strength
3)Good flexibility









Flexible Fiberglass Cable Duct Rods



Application

1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.

2.Available push pull rodder
3.With cable roller
4.Lightweight and non-conductive



Features of  Flexible fiberglass cable duct rods

1. Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
2. Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
3. There is copper wire inside for tracing easily.
4. Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
5. Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
6. Feed device allows rod to feed out or be back with easy push or pull of rod
7. Rugged tubular steel reel with adjustable positioning
8. Rustproof bull-nose pulling eye for longer conduit run and underground duct
9. Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod



Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.



Our Values

1,Take First-Class Quality as Target and First-class Service.

2,As Responsibility, To Succeed By Scientific Management.

3,Customer in Heart, Quality in Hand, Technology in the Lead.



Technical Data of  Flexible Fiberglass Cable Duct Rods

Specification	Rod Diameter (mm)	Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
	Rod Length (m)	30~500
	Frame Spec.(mm)	1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
	Wheel Diameter(mm)	300mm
	Wall thickness of Metal Frame	2.2mm
	Color	blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Iron Frame	Steel with high-temperature sprayed plastic or Spray coating
	Wheel	rubber
	Brake	Yes
	Drawing head	copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packaging	Inside	plastic woven strip wind around the frame
	Outside	Wooden pallet and Wooden box
