Home > Products > Underground Cable Pulling Tools > Portable Fiberglass Push Pull,Fiber Snake Duct Rodder,Cable Rods
Portable Fiberglass Push Pull,Fiber Snake Duct Rodder,Cable Rods
- 100 Set / Sets per Month
- SHANGHAI
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | XINYA | Model Number: | BCD |
Application: | cable pulling operations, power construction | Surface Treatment: | Smooth | Technique: | Pultrusion |
Dimensions: | Customizable |
Product Description

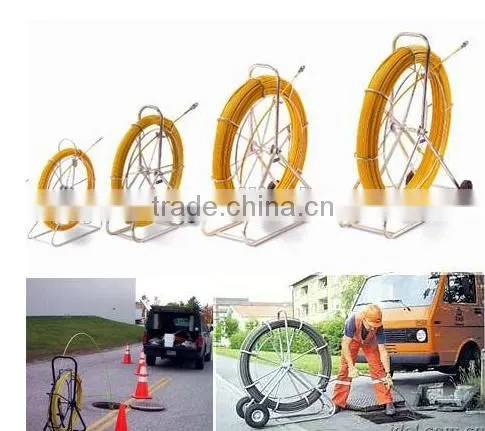

Portable Fiberglass Push Pull,Fiber Snake Duct Rodder,Cable Rods
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Fiberglass rod is lightweight and flexible.
3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;
Features
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
- Assembly: metal frame and rubber wheels, Wheel assembly for easy transportation; Guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.
- There is copper wire inside for tracing easily.
- Polyethylene cover: Medium density polyethylene resin for the insulating and jacketing of cables.
- Rolling bearing cage flotation (reel transport) for mobility should be light and easy to use in the field, including a parking brake for the flexible rod.
- Feed device allows rod to feed out or be back with easy push or pull of rod
- Rugged tubular steel reel with adjustable positioning
- Rustproof bull-nose pulling eye for longer conduit run and underground duct
- Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod
Technial Data
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |

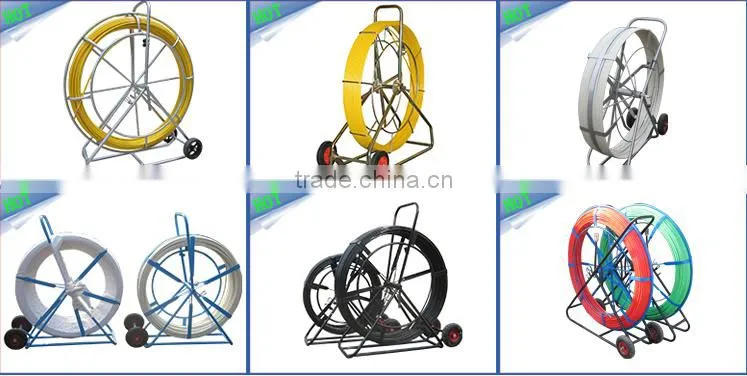

Structure
Application
Please tell us the following information in your enquiry:
1. Dia of duct rod(mm) ?
2. Length of pulling rod(KN) ?
3. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
,
Contact Us
- Changshu Xinya Machinery Manufacturing Co., Ltd.
- Contact nameWendy Jin
- Phone0086-512-52844889
- AddressYongfu Road, Yetang Town Zone, Shanghu Town, Changshu
