11mm 150M Fiberglass Duct Rod For Cable Push Pulling
- 3000 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | XINYA | Model Number: | BCD |
Application: | cable push pull, pull rod | Surface Treatment: | Smooth | Technique: | Pultrusion |
Dimensions: | Customizable |
Product Description

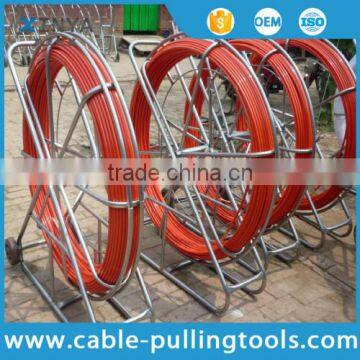

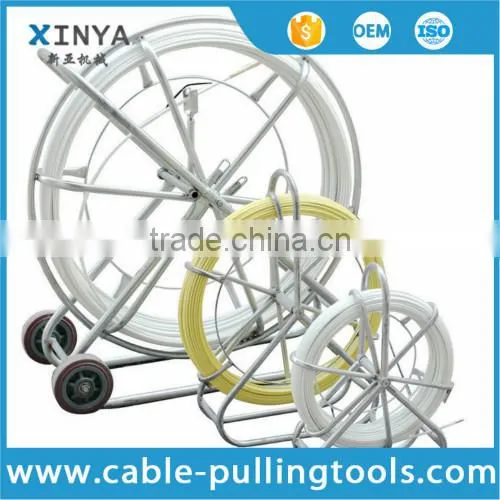

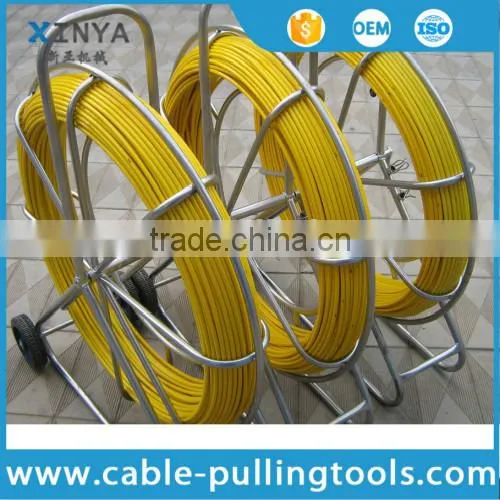

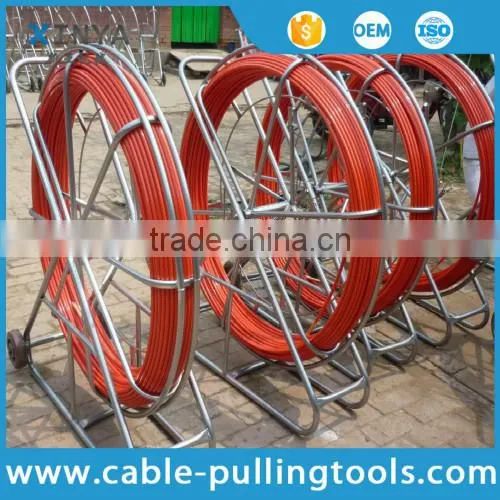

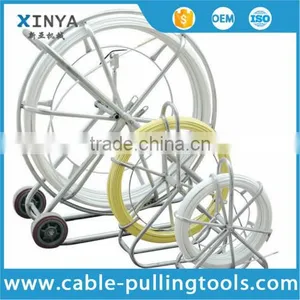

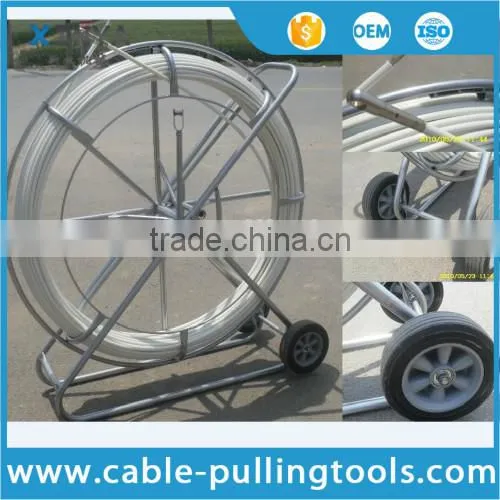

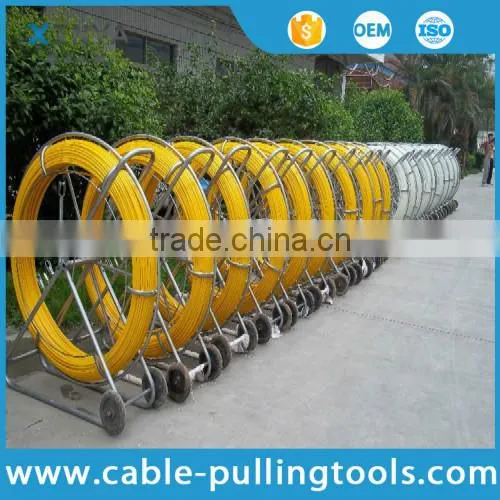

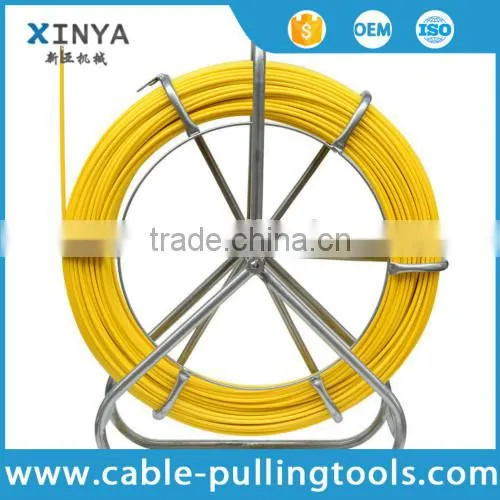

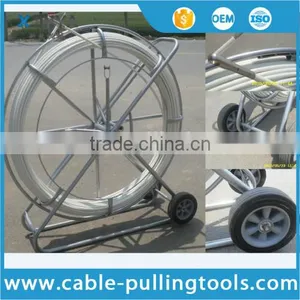

11mm 150M Fiberglass Duct Rod For Cable Push Pulling
Application
1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Fiberglass rod is lightweight and flexible.
3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;
Features
1. Light weight, high tensile strength.
2. Polyethylene coating for good electric insulativity, smooth surface, resistance to acid and corrosion.
3. Elastic body for easy passing through narrow pipes and bending conduits.
4. Copper wire inside for tracing if needed.
5. Good friction and heat resistance allow the rod to travel longer distance in the conduits and to be
operated in harsh environment.
5. Meter marks on the protective layer of the rod for measuring distance, printed by professional printing machine.
6. Waterproof and anti-ultraviolet for durable use.
7. Hand operated brake for controlling payout of the pulling rod. The rotating and stopping of the rod can be easily
controlled by the brake.
8. Some frames are double-barreled reinforcement design for a more sturdy structure.
9. Small bending radius allows the rod itself passing through tight bends in the ducts.
10. Accessory or repair kit is available attached to the frame for greater versatility and easier ducting.
Technical Data
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |

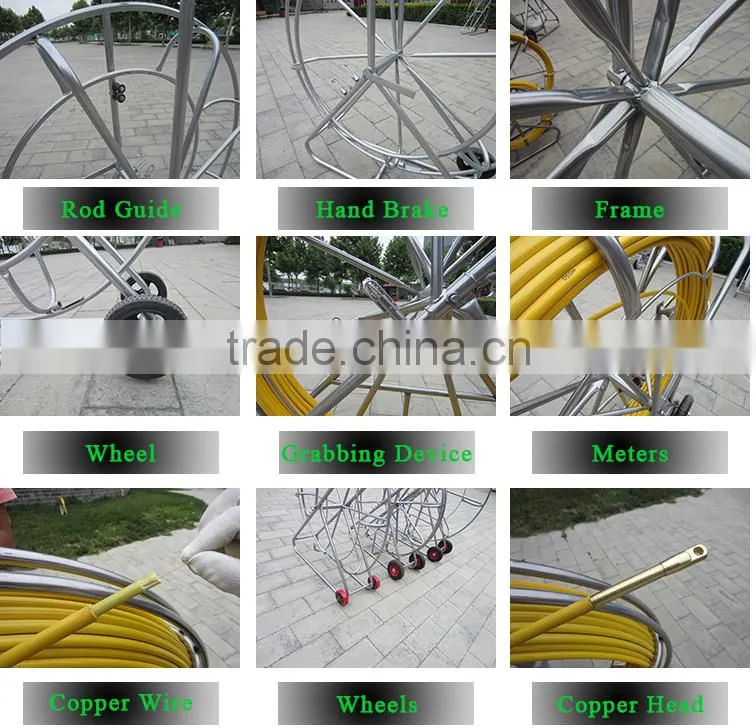

Detailed Images
