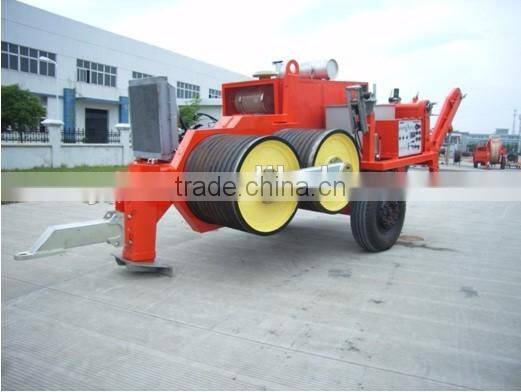

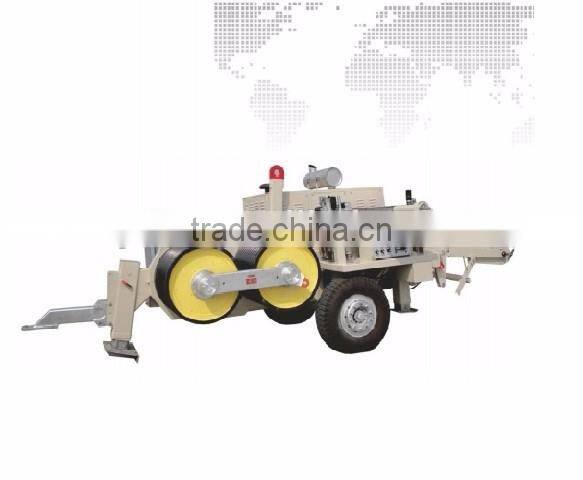

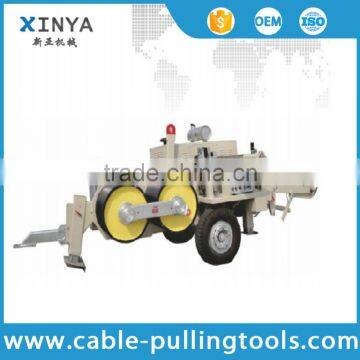

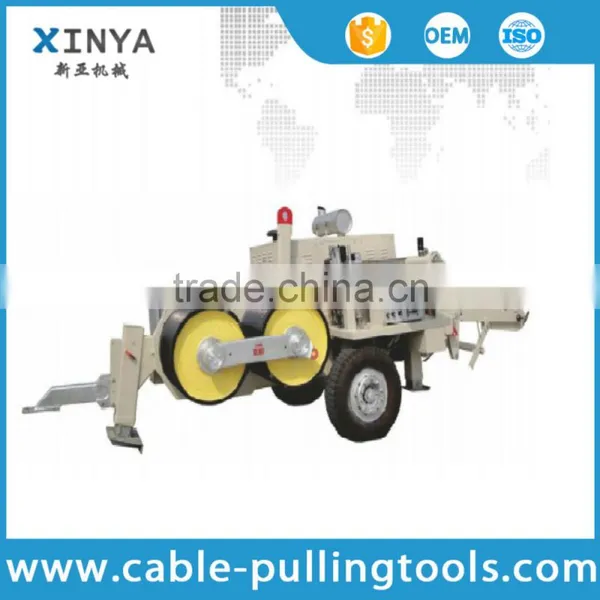

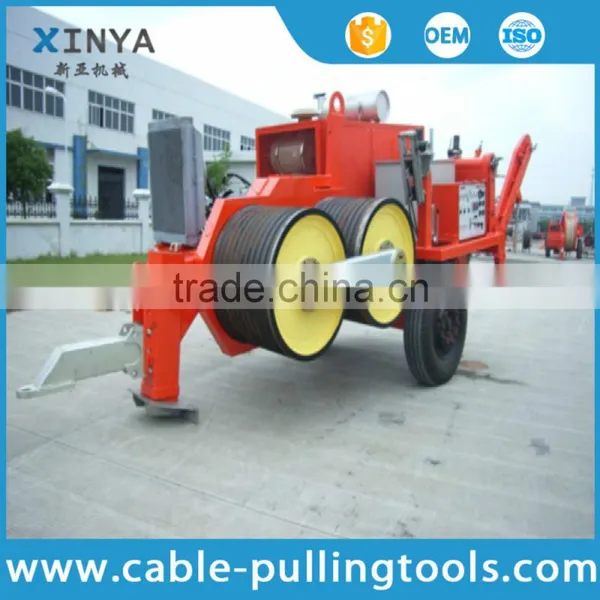

String equipment SA-YQ300 hydraulic capstan winch cable puller
Application
String equipment SA-YQ300 hydraulic capstan winch cable puller is applicable to release wire, ground wire, cable in transmission line project.Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.
Features
1.Infinitely variable speed and line control, the pull in the rope can be read on the line pull gauge.
2.The max pull for conductor-stringing operation can preset,automatic overpull protection system.
3.Spring applied hydraulic release brake acts automatically in case of hydraulic failure ensure to safety.
4.Hydraulic pullrope pinch device.replacing reel conveniently.
5.Attached reel winder with automatically level wind.load and unload conveniently.
Main component
1.Engine:Cummins(USA) water cooled engine
2.Main variable diaplacement pump and main motor:rexroth(BOSCH)
3.Reducer:RR(Italian)
4.Main hydraulic valve:rexroth(BOSCH)
5.Radiator:AKG
6.Hydraulic instrument:WIKA
7.Mating with model GSP1900 drum
Technical Data for String equipment SA-YQ300 hydraulic capstan winch cable puller
| Model | SA-YQ300 |
| Maximum linepull(KN) | 300 |
| Continuous linepull(KN) | 250 |
| Maximum linespeed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ960 |
| Bullwheel grooves number | 10 |
| Maximum suitable steelrope diameter(mm) | Φ38 |
| Maximum through connector diameter(mm) | Φ95 |
| Engine power/speed(kw/rpm) | 298/2100 |
| Dimensions(mm) | 5780*2350*2820 |
| Weight(kg) | 11500 |
