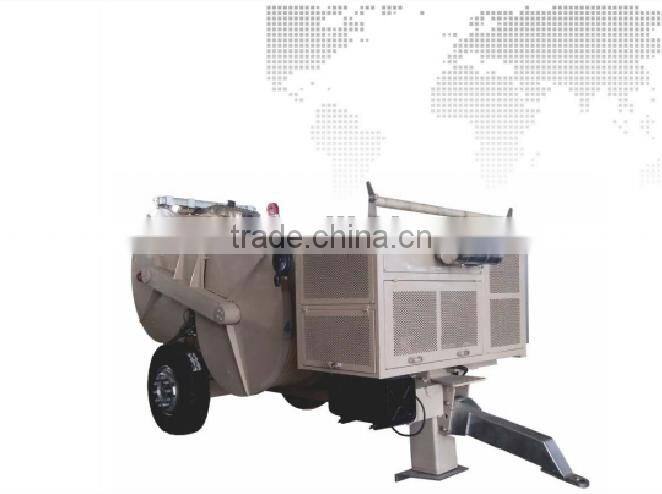

Hydraulic 4*5 grooves cable stringing tensioner for SA-YZ4*45 type
Application
Hydraulic 4*5 grooves cable stringing tensioner for SA-YZ4*45 type is adequate to tension releasing various conducts and earthwires, and it as one pull four or one pull two using.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. Attached four sets of hydraulic power output interface to connect hydraulic conductor reel stand.
Main component
1.Engine :Deutz water-cooled diesel engine .
2.Main pump and main motor : Rexroth(BOSCH)
3.Reducer : RR(Italian)
4.Hydraulic instrument :WIKA
5.Main hydraulic valve:Rexroth(BOSCH)
Technical Data of Hydraulic 4*5 grooves cable stringing tensioner for SA-YZ4*45 type
| Model Type | SA-YZ4*45 |
| Maximum Tension(KN) | 4*45 or 2*90 |
| Continuous Tension(KN) | 4*40 or 2*90 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1500 |
| Number of groove | 4*5 |
| Maximum pullback(KN) | 4*45 or 2*90 |
| Maximum speedback(km/h) | 4*1 |
| Maximum suitable conductor diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 82/2500 |
| Dimensions(mm) | 4700*2350*2800 |
| Weight(kg) | 11500 |
