Double Head Type Temporary Conductor Mesh Sock Joints
US$ 20 - 40
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SLWS-2.5
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR ConductorsUS$ 20 - 40MOQ: 1 Piece -
TG Series Stringing Equipment Wire Grips Conductor Pulling Grip for ConductorsNegotiableMOQ: 10 Pieces
-
Steel Wire Grips Stringing Equipment Conductor Pulling Grip for ConductorsUS$ 8 - 14MOQ: 10 Pieces
-
10KN Working Load 2 Meter Long Cable Mesh Sock For OPGW 10-25mmUS$ 20 - 40MOQ: 1 Piece
-
Cheap Single Eye Galvanized Cable Pulling GripsNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
SLWS-2.5

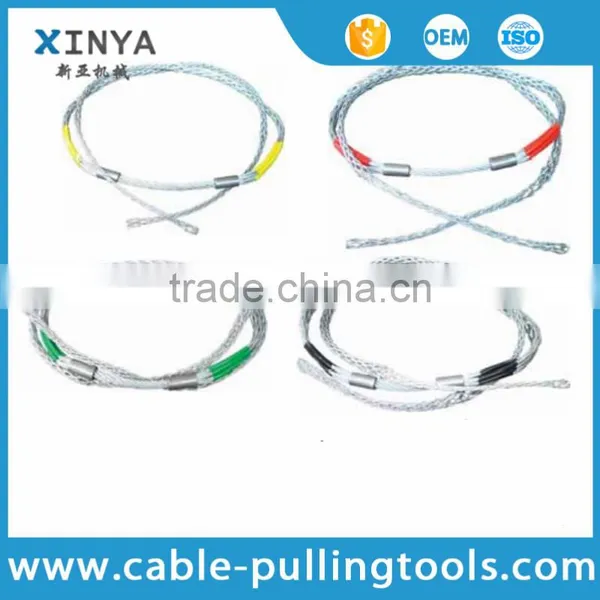

Double Head Type Temporary Conductor Mesh Sock Joints
DOUBLE HEAD TYPE
The double head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.

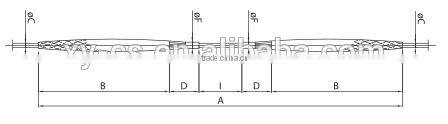

Data Sheet
| Model | Conductor size (mm2) | Rated load (kN) | Breaking load (kN) |
| SLWS-2 | 120~150 | 20 | 40 |
| SLWS-2.5 | 185~240 | 25 | 50 |
| SLWS-3 | 300~400 | 30 | 60 |
| SLWS-4 | 500~630 | 40 | 80 |
| SLWS-5 | 720 | 50 | 125 |
| SLWS-7 | 900 | 70 | 175 |
Description:
1. DOUBLE WEAVE – SINGLE EYE
2. APPROX. BREAKING STRENGTH – 7500kg
3. SIZE RANGE – Approx.---- can do it as your requirements
4. SIZE RANGE – ---- can do it as your requirements
5. INCLUDES – heavy duty swivel connector
6. APPROX MESH LENGTH – --- can do it as your requirements
7. MATERIAL – Galvanized or stainless steel
Different Types of Cable Socks
