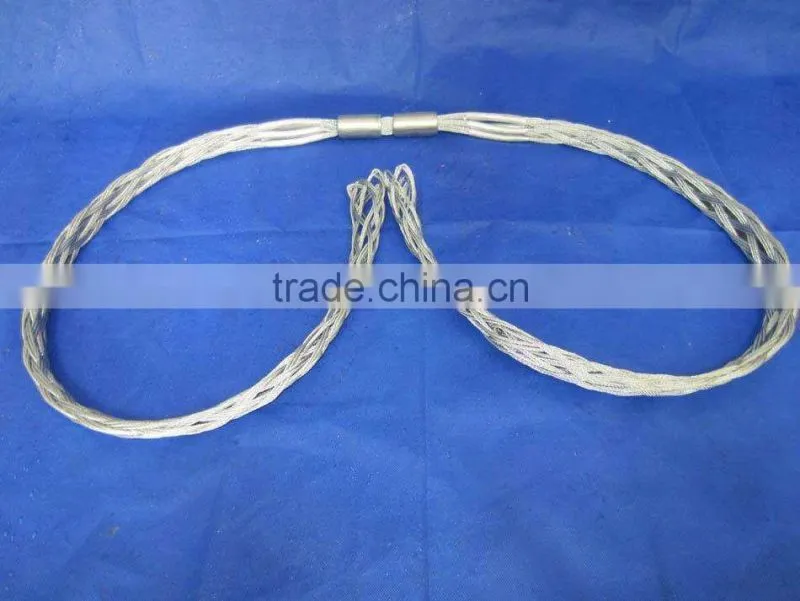

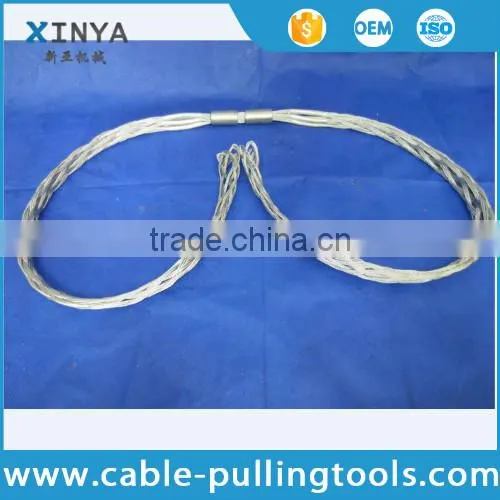

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors thumbnail-1
SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors thumbnail-2
SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors photo-1
SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors photo-2
US$ 20 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
SLWS-2.5
Contact Supplier Request Quote Chat Now
Changshu Xinya Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name XINYA
Model Number SLWS-2.5

 SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip For Gripping ACSR Conductors 185-240mm2



Quick Information

1. Apply for AL, Steel or Cu Conductor
2. Conductor size: 70~1120mm2
3. Rated load: 15~80kN
4. Breaking load: 30~200kN



DOUBLE HEAD TYPE

The double head type temporary mesh sock joints are specifically designed to temporarily connect the aluminum, steel, or copper conductor to the pulling rope. They consist of variable pitch steel wires, which effectively distribute the gripping effect on the conductor.



Data Sheet
Model Conductor size (mm2) Rated load (kN) Breaking load (kN)
SLWS-2 120~150 20 40
SLWS-2.5 185~240 25 50
SLWS-3 300~400 30 60
SLWS-4 500~630 40 80
SLWS-5 720 50 125
SLWS-7 900 70 175

Description:

1. DOUBLE WEAVE – SINGLE EYE

2. APPROX. BREAKING STRENGTH – 7500kg

3. SIZE RANGE – Approx.---- can do it as your requirements

4. SIZE RANGE – ---- can do it as your requirements

5. INCLUDES – heavy duty swivel connector

6. APPROX MESH LENGTH – --- can do it as your requirements

7. MATERIAL – Galvanized or stainless steel



Advantages

Superior quality

Competitive price

Excellent service

Short lead time

Most of the items stock are available

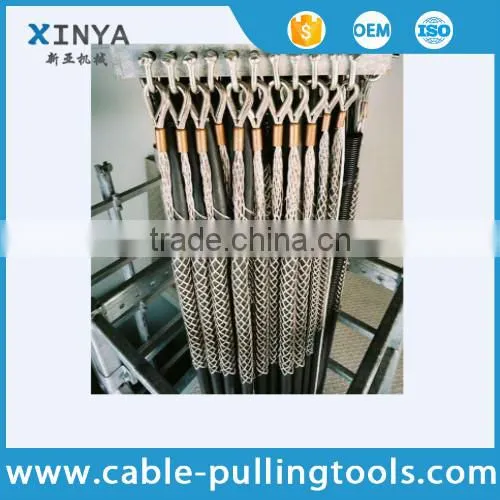

Different Types of Cable Socks

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors



SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors



SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors





SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR ConductorsSLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors

SLWS-2.5 Double Head Socket Pulling Grip Cabel Mesh Sock For Gripping ACSR Conductors
