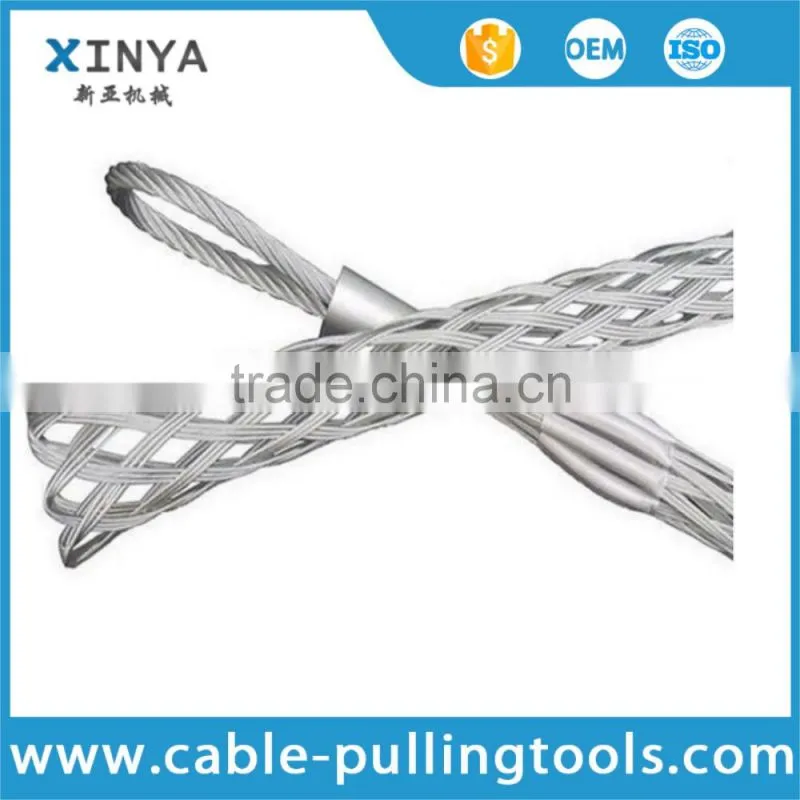

TG Series Stringing Equipment Wire Grips Conductor Pulling Grip for Conductors
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
XINYA
Model Number:
TG
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Wire Grips Stringing Equipment Conductor Pulling Grip for ConductorsUS$ 8 - 14MOQ: 10 Pieces -
10KN Working Load 2 Meter Long Cable Mesh Sock For OPGW 10-25mmUS$ 20 - 40MOQ: 1 Piece
-
Cheap Single Eye Galvanized Cable Pulling GripsNegotiableMOQ: 1 Piece
-
High Quality Galvanized Steel Cable Pulling GripsUS$ 10 - 50MOQ: 1 Piece
-
Different Size of Galvanized Steel Cable Pulling Grips Cable SocksUS$ 10 - 50MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
XINYA
Model Number
TG
Type
Other
Application
Other, Power construction
Gender
Other
TG Series Stringing Equipment Wire Grips Conductor Pulling Grip for Conductors
Application
It is applied to bury the electrical cable which in the ground .It also can be used to pipeline's traction.
Characteristic
It is knitted by joint capital steel wire .It has good softness.It is easy to extend and contract.
Technical Data
| Medium Length | |||||
| Order Number | Model | Cable Diameter(mm) | Breaking Load()kg | E(mm) | M(mm) |
| 10983 | TG-050-24 | 10-15 | 2040 | 200 | 300 |
| 10984 | TG-062-24 | 15-18 | 2540 | 200 | 500 |
| 10985 | TG-075-24 | 18-25 | 3080 | 230 | 550 |
| 10986 | TG-100-24 | 25-37 | 4350 | 230 | 600 |
| 10987 | TG-150-24 | 37-50 | 7440 | 280 | 650 |
| 10988 | TG-200-24 | 50-63 | 8390 | 300 | 700 |
| 10989 | TG-250-24 | 63-75 | 11110 | 300 | 750 |
| 10990 | TG-300-24 | 75-88 | 11110 | 350 | 800 |
| Medium Length | |||||
| Order Number | Model | Cable Diameter(mm) | Breaking Load()kg | E(mm) | M(mm) |
| 10991 | TG-100-36 | 25-37 | 4350 | 230 | 850 |
| 10992 | TG-150-36 | 37-50 | 7440 | 280 | 900 |
| 10993 | TG-200-36 | 50-63 | 8390 | 300 | 900 |
| 10994 | TG-250-36 | 63-75 | 11110 | 300 | 950 |
| 10995 | TG-300-36 | 75-88 | 11110 | 350 | 1000 |
| 10996 | TG-350-36 | 88-101 | 14060 | 350 | 1050 |
| 10997 | TG-400-36 | 101-114 | 14510 | 380 | 1100 |
| 10998 | TG-450-36 | 114-127 | 15420 | 400 | 1200 |
| 10999 | TG-500-36 | 127-152 | 16330 | 430 | 1500 |
| 11000 | TG-600-36 | 152-177 | 17240 | 460 | 1650 |
