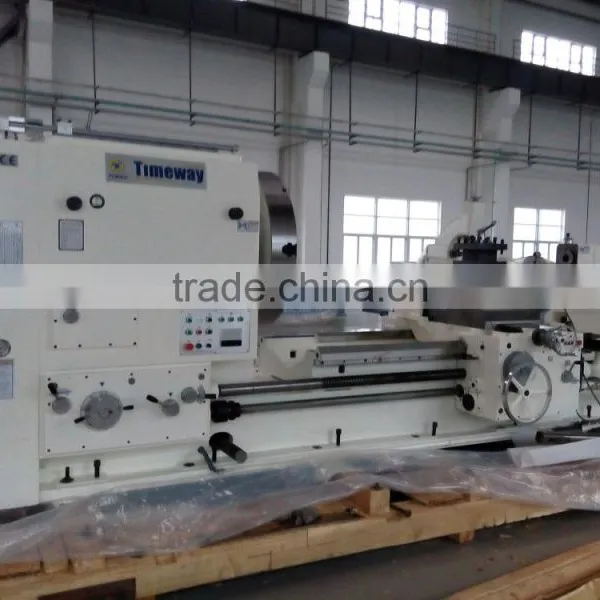

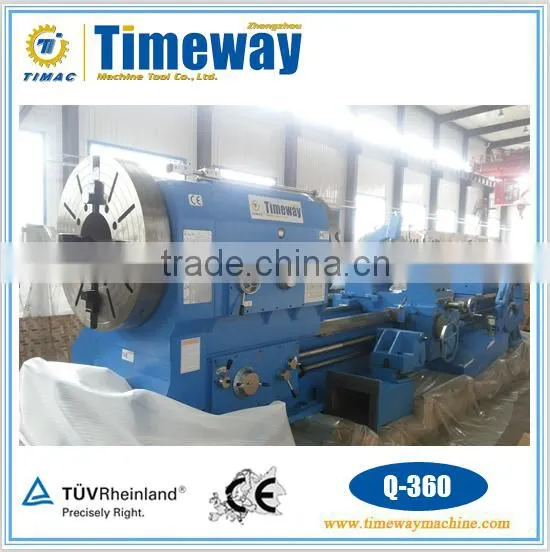

14" Large Spindle Bore Pipe Thread Lathe (Oil Country Lathe)

Pipe Thread Turning Lathe (Oil Country Lathe)

1. The Pipe Thread Turning Lathe (Oil Country Lathe) machine is equipped with a tapering unit which can work out a ±1:4 taper

2. The machine is able to cut both metric and with threads without changing the translating gear.

3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.

4. The guide way is hardened and finely finished.

5. The great power of the machine is competent at heavy load and power cutting

6. The floor center rest can be moved freely as required by the user. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.

7. The 4-jaw head stock offers free clamp of both short and long pipes.

Standard accessories:

4-jaw manual chuck with steel body, dia. of 1000mm, 2 sets;

Steady rest (fixed steady), range 50 to 590mm with bearing type, 1 set;

Follow rest (traveling steady with tips), range 50 to 220mm 1 set;

Cooling system, 1 set;   Lighting device, 1 set;

Taper turning device, length 300mm, 1 set;

Living center, 1 set;      Dead center, 1 piece;

Center sleeve, 1piece;  Set of machine operating tools;

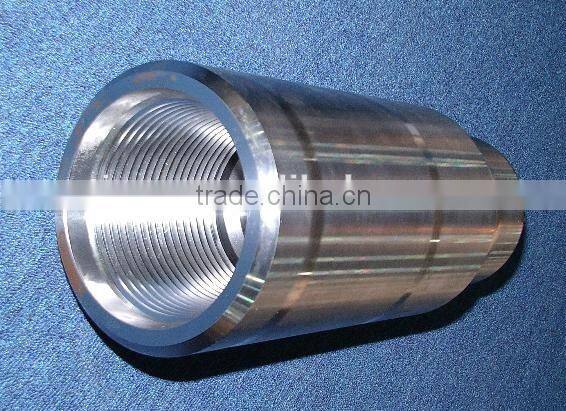

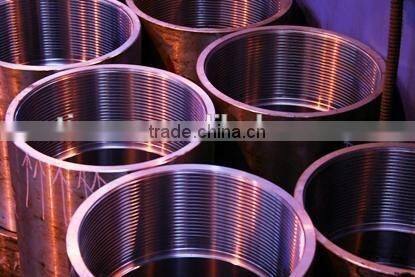

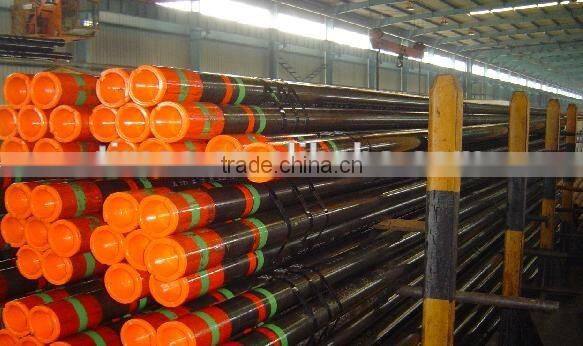

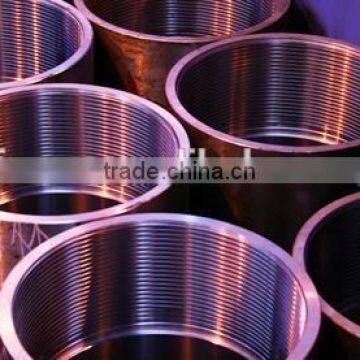

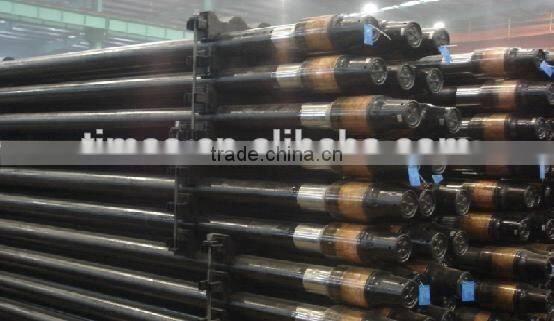

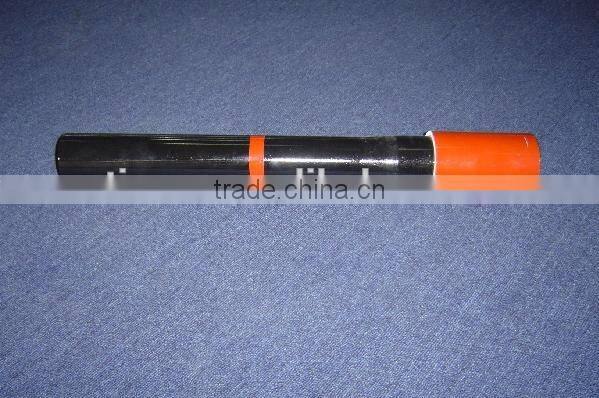

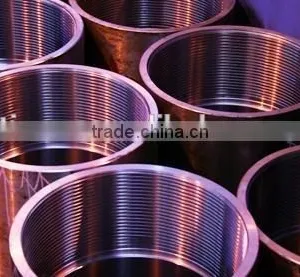

Mainly used in oilfield industry for making and repairing the threads of drill tools like drill pipe, drill collar, tubing, casing, coupling, sub, etc.
