Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC Roll Turning Lathe

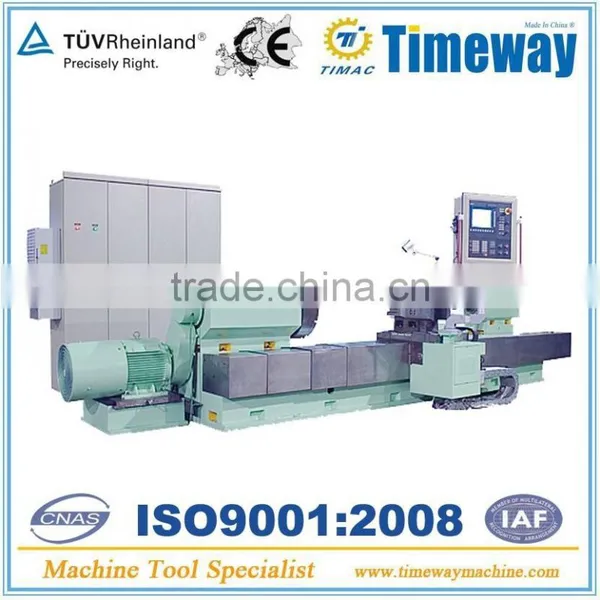

CNC Roll Turning Lathe

Name: CNC Roll Turning Lathe
Brand: Timac
SKU: 140798192
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 500

Place of Origin Henan, China

Brand Name Timac

Model Number RLK-500, RLK-650, RLK-800

Voltage as requirement

Power(W) 22kw, 37kw, 55kw

Dimension(L*W*H) 6600x2100x1400mm, 7600x1715x1600mm, 9600x2450x2000mm

Weight 11000kg, 15000kg, 30000kg

Certification ISO9001:2008, CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

CNC Roll Turning Lathe
Roll diameter: 500mm, 650mm, 800mm
Roll length: as requirement
CNC system: Siemens SINUMERIK 828Dsl

Features:

This CNC roll lathes are mainly used in the semi finishing and finishing turning processing work for cast iron, steel and Non-ferrous metal rolls. The machines adopt high speed iron steel, tungsten-carbide or other kind of material cutters. These kinds of designs support the machines to do turning and repairing processing work for the rolls’ ex circle, head face, all kinds of complex groove face and curved surface. They can also process the similar cast iron, steel and non-ferrous metal shafts as rolls in same weight range for semi finishing and finishing work on ex circle, head face, and all kinds of complex groove face.

The machine adopts four guide way or four in one guide way. The longitudinal and cross movement adopt high rigid rectangular guide way .With the combination frame blade holder of high rigid cutter row on the rectangular, the machines have improved the rigidity and stability. We adopt high accuracy and radial clearance of the double row short cylindrical roller bearings as machine’s spindle bearings to ensure the machine’s high rigidity, stability and high accuracy. All the designs make sure the machines in integrated processing precision. And the work pieces will be processed in high accuracy.

Machines adopt paste hardened plastic guide way and centralized lubrication systems for every guide ways’ lubrication. It uses fixed-point quantitative oil supply principle. This ensures that the dynamic response of the system and the long using life for the machine’s guide ways’ lubrication. Machines adopt full stainless steel covers for guide way. This kind of design will keep the machine’s accuracy.

Main parameter:

Specification	RLK-500	RLK-650	RLK-800
Max. Workpiece diameter	φ500mm	φ650mm	φ800mm
Max. Workpiece length	2500mm	3500mm	5000mm
Center hight	400mm	470mm	550mm
max. load between centers points	3500Kg	6000Kg	12000Kg
Max. Cutting capacity	25KN	40KN	50KN
Max. work holding chuck torque	6000N·m	12000N·m	16000N·m
Main spindle rotation	2~400r/min	1.5~300r/min	1.25~250r/min
Spindle speed grade	stepless	stepless	stepless
Spindle speed mode	hydraulic auto	hydrualic auto	hydraulic auto
work holding chuck diameter	φ500mm	φ650mm	φ800mm
Taper of spindle hole size	NO.120	NO.120	φ100 1:7
Feed movement grade	stepless	stepless	stepless
Longitudinal(Z axis) movement speed	0.1~1000mm/min	0.1~1000mm/min	0.1~1000mm/min
Rapid longitudinal movement speed	4000mm/min	4000mm/min	4000mm/min
Cross (X axis) movement speed	0.1~1000mm/min	0.1~1000mm/min	0.1~1000mm/min
Rapid cross movement speed	2000mm/min	2000mm/min	2000mm/min
Tailstock sleeve of mobile content	250mm	200mm	300mm

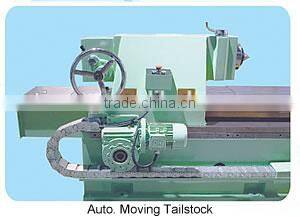

Rapid speed of tailstock	3000mm/min	3000mm/min	3000mm/min
Tailstock moving mode	motor drive	motor drive	motor drive
The tailstock spindle taper hole size	Morse 5#	φ60 1:7	φ80 1:7
Tailstock sleeve diameter	φ180mm	φ200mm	φ280mm
Variable frequency AC motor power	22KW	37KW	55KW
Variable frequency AC motor for longitudinal feeding(Z axis) torque	27N·m	27N·m	36N·m
Variable frequency AC motor for cross feeding(X axis) torque	18N·m	18N·m	27N·m
CNC automatic indexing tool post (Optional)	Vertical: 4 station	Vertical: 4 station	Vertical: 4 station
	Horizontal: 8 or 12 station	Horizontal: 8 or 12 station	Horizontal: 8 or 12 station
	Cutter positioning accuracy repeatability: 0.005mm	Cutter positioning accuracy repeatability: 0.005mm	Cutter positioning accuracy repeatability: 0.005mm
Protective mode for the bed guideway	stainless cover	stainless cover	stainless cover
Overall size (LX W X H)	6600×2100×1400mm	7600×1715×1600mm	9600×2450×2000mm
Gross weight	11000Kg	15000Kg	30000Kg
