Vertical Internal Pull Broaching Machine

Name: Vertical Internal Pull Broaching Machine
Brand: TIMAC
SKU: 140797954
Availability: InStock

US$ 5,000 - 70,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

L5710C

Condition:

New

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number L5710C

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Vertical Internal Pull Broaching Machine

L5710C L5720C

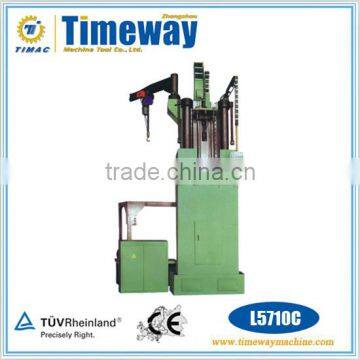

Main Outlook

Product Description

Machine Applications

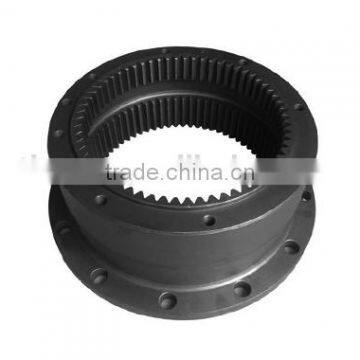

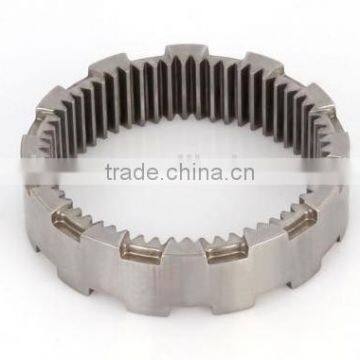

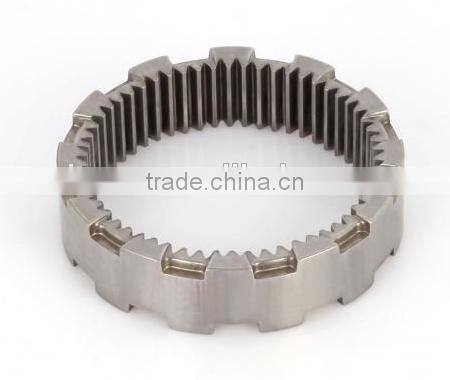

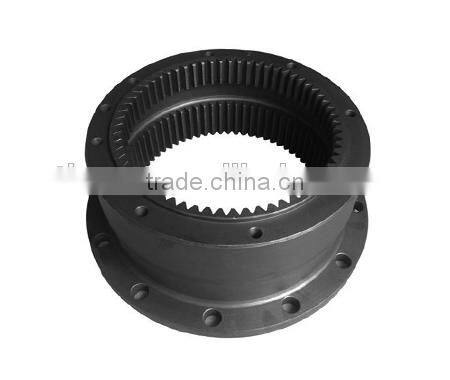

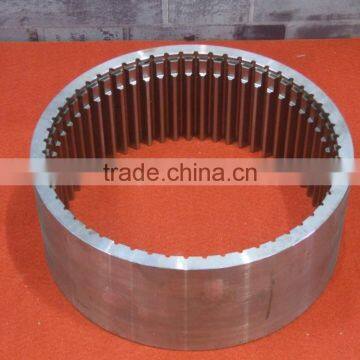

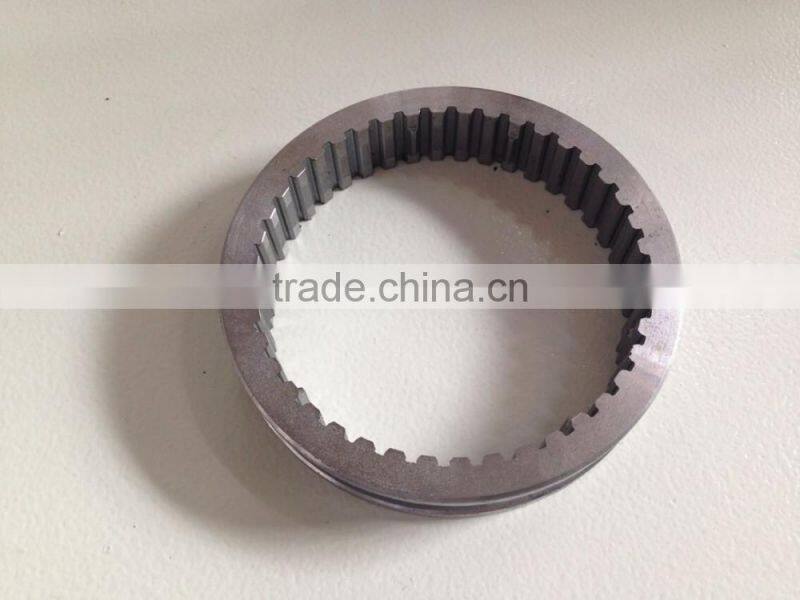

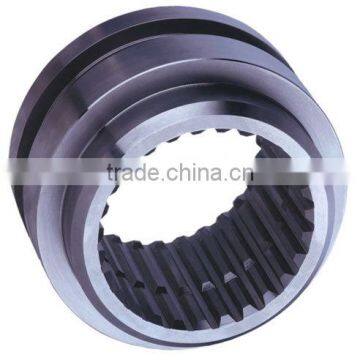

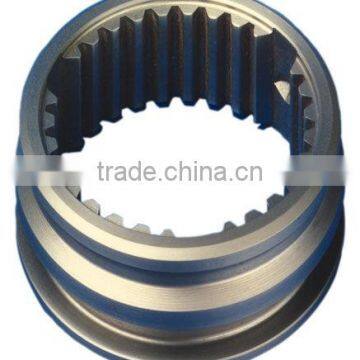

The machine is applicable to machining various inner holes, such as splined hole gear ring, outer slots of gear ring.

Performance and Features

Driven by hydraulic power, the machine works steadily and enables stepless speed change.
The machine is equipped with an overload safety device.
With the adoption of PLC program and touch panel, the machine has three opertation modes: automatic cycling, semi-automatic cycling, and segmented cycling.
The machine is operated easily on the main button control station.

Specifications List

Technical Parameters

Specifications	Units	L5710C	L5720C
Number of broaching stations		1	1
Rated pulling force	KN	100	200
Max. stroke length	mm	1250	1600
Length range of broaching tool	mm	600-1300	600-1650
Hole diameter of worktable	mm	Φ140	Φ170
Max. outer diameter of workpiece	mm	Φ230	Φ300
Working speed	m/min	2-8	2-8
Returning speed	m/min	2-15	2-16
Machine total power	Kw	18	30
Machine floor space	mm	327527373940	327530104367
Machine net weight	kg	11000	15000
Standard workpiece verticality of hole centerline and base after broaching	mm	≤0.06/200	≤0.06/200
