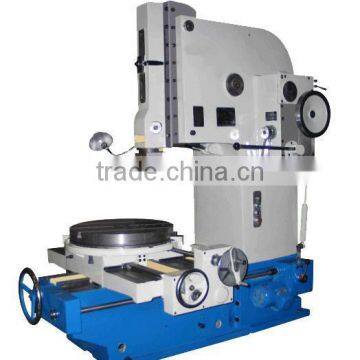

1. Being designed for slotting various plane, formed surface ( include cambered surface) and key way of workpiece, the machine is suitable for single piece or small batch production.
2. The start and stop of the machine are carried out by a multiple-disk clutch and the reciprocation of the ram is achived by a crankconnecting link.
3. An automatic mechanism for vertical, horizontal and rotary feeding together with its safety device is provided on the table.
4. It has a rapid motion device for vertical, horizontal and rotary motion of the table which equipped with an indexing gear for rotary motion.
Specifications | Unit | B-200E | B-320E | B-400E |
Max. slotting length | mm | 200 | 320 | 400 |
Number of ram reciprocation per minute | mm | 32, 50, 80, 125 | 20, 32, 50, 80 | 20, 32, 50, 80 |
Inclination of ram | mm | 0-8 | 0-8 | 0-8 |
Diameter of worktable | mm | φ460 | φ630 | φ630 |
Adjusting vertical distance of slide block | m/min | 200 | 315 | 315 |
Distance from tool holding surface to column front | m/min | 480 | 600 | 600 |
Distance from worktable surface to underside of slide rack | 320 | 455 | 615 | |
Max. longitudinal travel of worktable | mm | 420 | 560 | 560 |
Max. transverse travel of worktable | mm | 420 | 535 | 535 |
Max. rotary angle of worktable | mm | 360 | 360 | 360 |
Feed range of worktable in longitudinal & transverse direction | mm | 0.054-1.24 | 0.054-1.24 | 0.054-1.24 |
Rotary feed range of worktable | ° | 0.035-0.85 | 0.035-0.805 | 0.035-0.805 |
Max. size of slotting tool (LxW) | mm | 25x40 | 25x40 | 25x40 |
Max. slotting force | 5 | 8 | 8 | |
Max. loading weight on worktable | kg | 400 | 500 | 500 |
T-slot width in the center of worktable | mm | 18H8 | 18H8 | 18H8 |
Power supply of main electric motor | kw | 3 | 3 | 3 |
Speed of main motor | 1420 | 960 | 960 | |
Power of motor for rapid transverse | kw | 0.75 | 0.75 | 0.75 |
Speed of motor for rapid traverse | 1390 | 1390 | 1390 | |
Net weight (approx) | kg | 2200 | 2500 | 2900 |
Dimensions of machine tool (LxWxH) | mm | 1717x1221x1885 | 1930x1365x2270 | 1970x1365x2310 |
Flatness of machined surface | mm | 0.015 | 0.015 | 0.015 |
Verticality of machined surface | mm | 0.025 | 0.025 | 0.025 |
Surface roughness | 6.3 | 6.3 | 6.3 | |
Verticality of machined side surface against base | mm | 0.02 | 0.02 | 0.02 |
