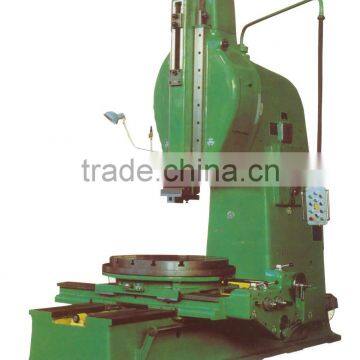

SLOTTING MACHINE
- 300 Set / Sets per Month
- China Port
- T/T Credit Card PayPal
- Hydraulic Guillotine Type Metal Shear Used in Scrap Metal Recycling Industry
- Best price cnc table plasma cutting machine with water table
- High-power cnc plasma cutting machine 1530
- REBOUND CNC table plasma cutting machine for metal 1.5x3m
- REBOUND CNC new automatic plasma cutting machine with good price
- table cnc best price modern plasma cutting machine for stainless
Product Details
Condition: | New | Brand Name: | TIMEWAY | Model Number: | B-500A |
Dimension(L*W*H): | 3480x2085x3307mm | Weight: | 10.3t | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The machine runs smoothly owing to it adopts double crank mechanism.
It operates easily because the worktable motion is driven by electric motor.
It has a pump for lubrication and cooling cutting tool and the workpiece.
Specification | B-500A |
Max. slotting length | 500mm |
Table diameter | 1000mm |
Cross traverse of worktable | 660mm |
Longitudinal traverse of table | 1000mm |
Max. weight of worktable | 2000 kg |
Distance between tool holding surface and column front | 990mm |
Range of ram adjustment | 430mm |
Distance between worktable and the lower side of slide | 740mm |
Inclination of ram head (left or right direction) | ±10 degree |
Number of ram strokes (per min.) | 9, 12, 5, 18, 25, 36, 50 |
Longitudinal and cross feeds of worktable (mm per ram stroke) | 0.1,0.2,0.3,0.4,0.6,1.2mm |
Rotary feeds of table (min per ram stroke) | 3',6',9',12',18',36'dr/per |
Max. cutting force | 16000N |
Rapid traverse motor | 1.5 KW, 1440 r.p.m |
Main motor power | 7.5 KW, 1440 r.p.m |
Coolant pump motor | 0.125 KW, 2800 r.p.m |
Net weight of machine (approx.) | 10.3t |
Overall machine dimensions (L×W×H) | 3480×2085×3307mm |
