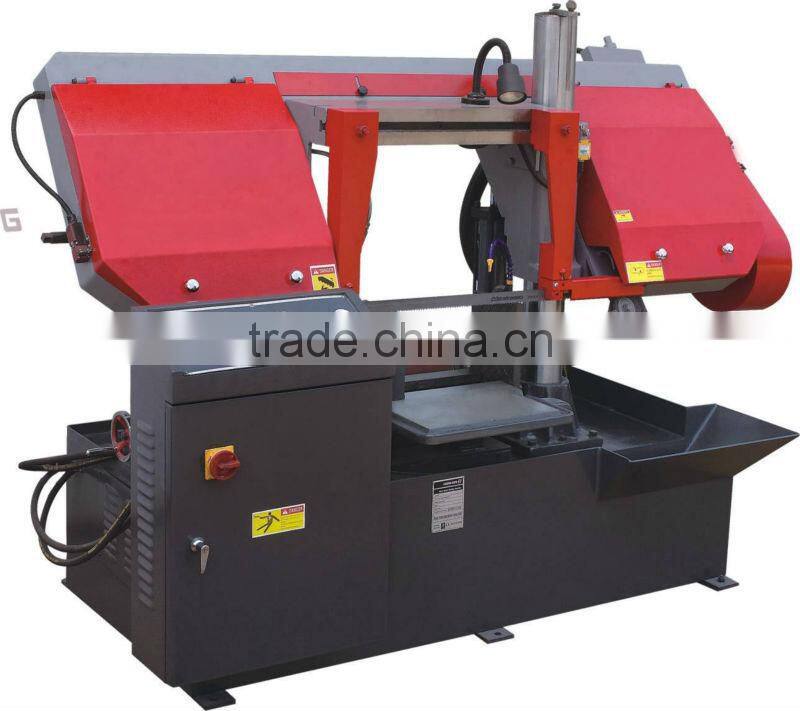

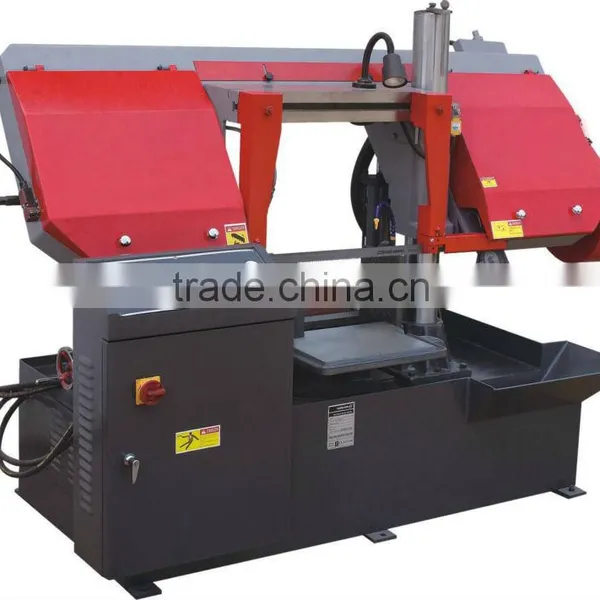

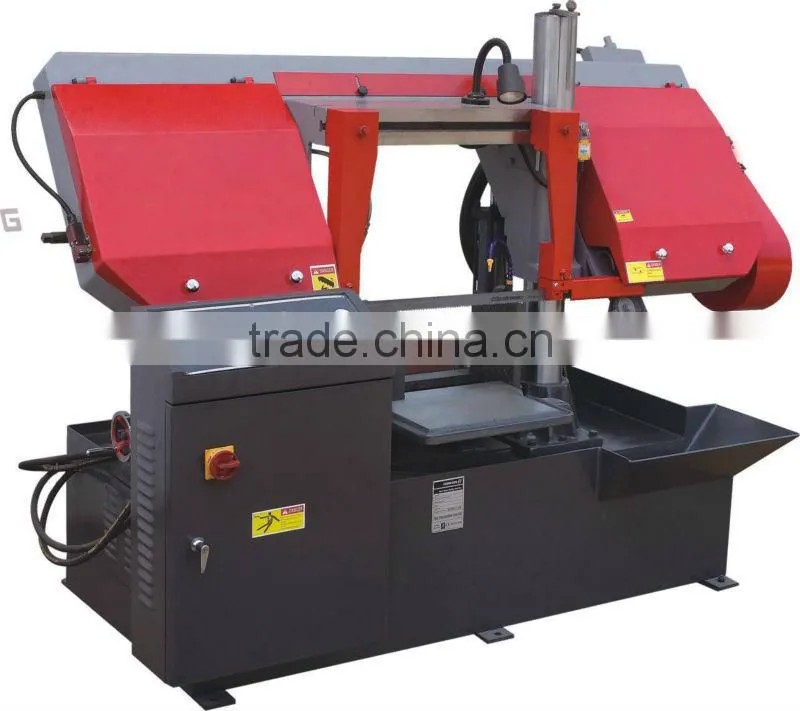

400mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-400/50

Name: 400mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-400/50
Brand: TIMAC
SKU: 140797768
Availability: InStock

US$ 4,350 - 4,850 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

CH-400/50

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number CH-400/50

Voltage As per request

Rated Power 3 kw

Dimension(L*W*H) 2350x1200x1710

Weight 1526kg

Certification CE norms; OHSAS18001

Warranty One year after deliery

Specifications

Horizontal Metal Band Sawing Machine
1. Max.cutting (Round): 400mm;
2.Max.cutting (Quadrate): 400 x 500/600/700mm
3.CE norms

400mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-400/50

Parameter:

Specification		CH-400/50	CH-400/60	CH-400/70
Max.cutting	Round	400mm	400mm	400mm
capacity	Quadrate	400×400mm, 400×500mm	400×500mm, 400×600mm	400×500mm,400×700mm
Saw blade	Speed	26/38/52/70/90	26/38/52/70/90	24/32/43/54/65
	Size	34×1.1×4650	41×1.25×4870	41×1.25×5000
	Guides	Carbide and bearing blade guides	Carbide and bearing blade guides	Carbide and bearing blade guides
	Cleaning	wire brush & flood coolant	wire brush & flood coolant	wire brush & flood coolant
	Tension	Manual	Manual	Manual
Motor output	Blade	3.0kw	4.0kw	4.0kw
	Hydraulic	1.1kw	1.1kw	1.1kw
	Coolant	0.075kw	0.075kw	0.075kw
Work feeding		Manual	Manual	Manual
Work Vice		Hydraulic	Hydraulic	Hydraulic
Machine Weight		1420kg	1526kg	1526kg
Packing Size(L×W×H)		2350×1200×1710	2545×1230×1740	2800×1240×1740
Container Loads		4SETS/20", 9SETS/40"	2SETS/20", 4SETS/40"	2SETS/20", 4SETS/40"

*** Standard Equipment:			*** Optional Equipment:
1. blade cleaning brush.			1. Variable vice pressure.
2. working light			2. Power roller table 2M long
3.Saw frame height selector gauge			3. Laser projector
4.Out feed with auxiliary plate table			4. Hydraulic blade tension
5.One piece of bi-metal saw blade.			5. Roller table 2M long
6.One set of tools with tool box			6. Inverter blade speed
7.Roller table 1M long
