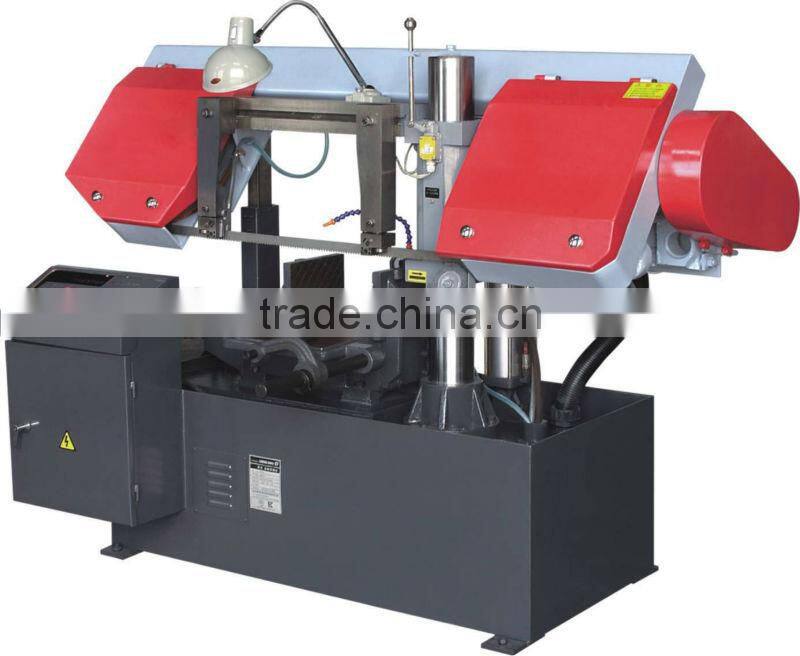

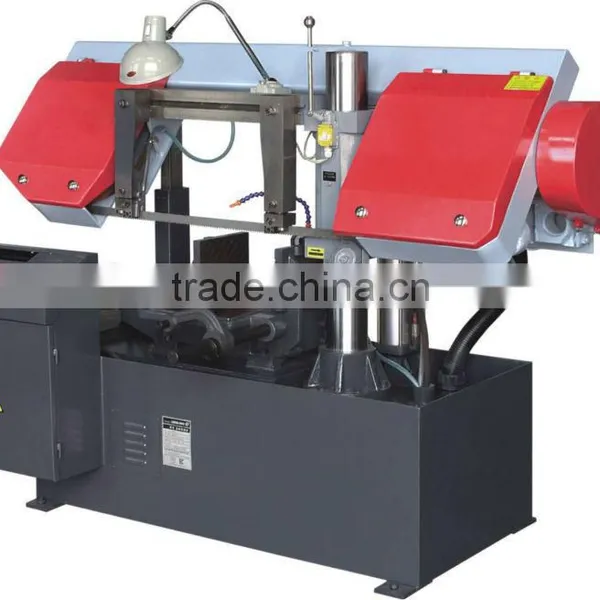

280mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-280
US$ 2,950 - 3,550
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
CH-280
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semi-Auto. Horizontal Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets -
11" Semi-Auto. Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets
-
280mm Semi-Auto. Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets
-
Double Column Horizontal Metal Band Sawing MachineUS$ 3,500 - 15,000MOQ: 1 Set
-
Horizontal Metal Band Sawing MachineUS$ 2,300 - 7,200MOQ: 1 Set
Condition
New
Brand Name
TIMAC
Model Number
CH-280
Voltage
As per request
Rated Power
3 kw
Dimension(L*W*H)
1910x1220x1440mm
Weight
980kg
Certification
CE norms; OHSAS18001
Warranty
One year after deliery
Specifications
Horizontal Metal Band Sawing Machine1. Max.cutting (Round): 280mm;
2.Max.cutting (Quadrate): 400x280mm
3.CE norms
280mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-280
Parameter:
| Specification | CH-280 | ||
| Max.cutting | Round | 280mm | |
| capacity | Quadrate | 400×280mm, | |
| Saw blade | Speed | 25/36/47/58/80 | |
| Size | 27×0.9×3620 | ||
| Guides | Carbide and bearing blade guides | ||
| Cleaning | wire brush & flood coolant | ||
| Tension | Manual | ||
| Motor output | Blade | 3.0kw | |
| Hydraulic | 0.75kw | ||
| Coolant | 0.075kw | ||
| Work feeding | Manual | ||
| Work Vice | Hydraulic | ||
| Machine Weight | 980kg | ||
| Packing Size(L×W×H) | 1910×1220×1440 | ||
| Container Loads | 4SETS/20", 9SETS/40" | ||
| *** Standard Equipment: | *** Optional Equipment: | ||
| 1. blade cleaning brush. | 1. Variable vice pressure. | ||
| 2. working light | 2. Power roller table 2M long | ||
| 3.Saw frame height selector gauge | 3. Laser projector | ||
| 4.Out feed with auxiliary plate table | 4. Hydraulic blade tension | ||
| 5.One piece of bi-metal saw blade. | 5. Roller table 2M long | ||
| 6.One set of tools with tool box | 6. Inverter blade speed | ||
| 7.Roller table 1M long | |||
