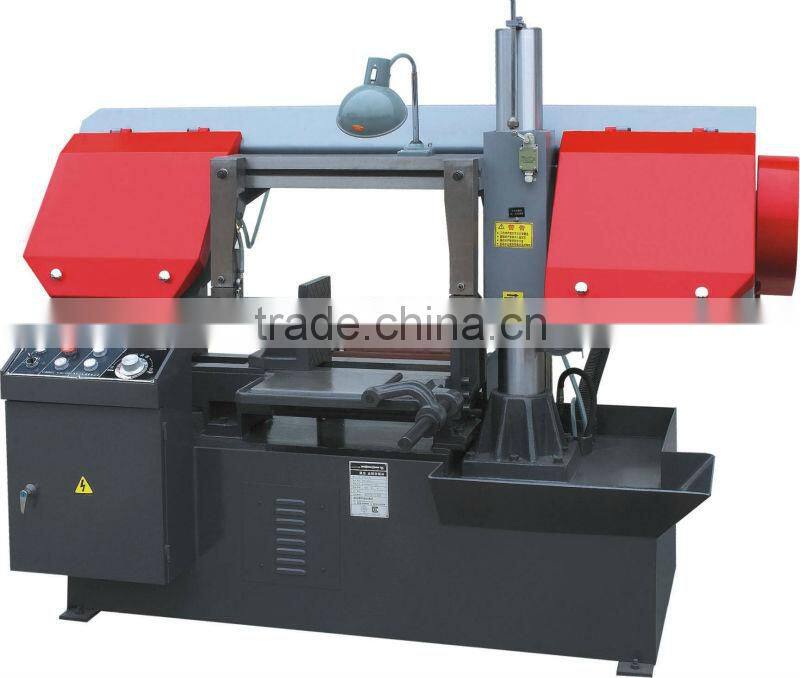

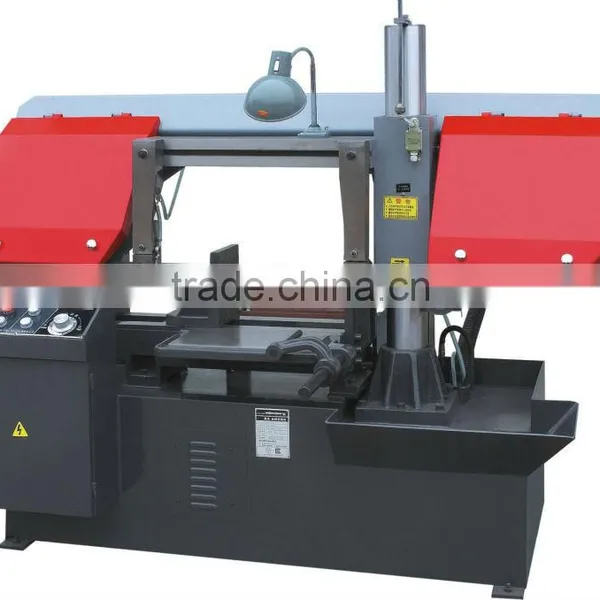

300mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-300
US$ 3,500 - 4,350
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
CH-300
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
350mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-350US$ 3,850 - 4,350MOQ: 1 Set -
280mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-280US$ 2,950 - 3,550MOQ: 2 Sets
-
Semi-Auto. Horizontal Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets
-
11" Semi-Auto. Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets
-
280mm Semi-Auto. Metal Band Sawing Machine -- CS-280IUS$ 2,950 - 3,550MOQ: 2 Sets
Condition
New
Brand Name
TIMAC
Model Number
CH-300
Voltage
As per request
Rated Power
3 kw
Dimension(L*W*H)
2300x1230x1750
Weight
1350kg
Certification
CE norms; OHSAS18001
Warranty
One year after deliery
Specifications
Horizontal Metal Band Sawing Machine1. Max.cutting (Round): 300mm;
2.Max.cutting (Quadrate): 300 x 500/600/700mm
3.CE norms
300mm Semi-Auto. Double-Column Metal Band Sawing Machine -- CH-300
Parameter:
| Specification | CH-300/50 | CH-300/60 | CH-300/70 | ||
| Max.cutting | Round | 300mm | 300mm | 300mm | |
| capacity | Quadrate | 300×300mm, 300×500mm | 300×300mm, 300×600mm | 300×300mm, 300×700mm | |
| Saw blade | Speed | 30/50/75/95 | 30/50/75/95 | 30/50/75/95 | |
| Size | 34×1.1×4180 | 34×1.1×4400 | 34×1.1×4280 | ||
| Guides | Carbide and bearing blade guides | Carbide and bearing blade guides | Carbide and bearing blade guides | ||
| Cleaning | wire brush & flood coolant | wire brush & flood coolant | wire brush & flood coolant | ||
| Tension | Manual | Manual | Manual | ||
| Motor output | Blade | 3.0kw | 3.0kw | 3.0kw | |
| Hydraulic | 0.75kw | 0.75kw | 0.75kw | ||
| Coolant | 0.075kw | 0.075kw | 0.075kw | ||
| Work feeding | Manual | Manual | Manual | ||
| Work Vice | Hydraulic | Hydraulic | Hydraulic | ||
| Machine Weight | 1350kg | 1250kg | 1250kg | ||
| Packing Size(L×W×H) | 2015×1230×1510 | 2300×1230×1750 | 2300×1230×1750 | ||
| Container Loads | 4SETS/20", 9SETS/40" | 4SETS/20", 9SETS/40" | 4SETS/20", 9SETS/40" | ||
| *** Standard Equipment: | *** Optional Equipment: | ||
| 1. blade cleaning brush. | 1. Variable vice pressure. | ||
| 2. working light | 2. Power roller table 2M long | ||
| 3.Saw frame height selector gauge | 3. Laser projector | ||
| 4.Out feed with auxiliary plate table | 4. Hydraulic blade tension | ||
| 5.One piece of bi-metal saw blade. | 5. Roller table 2M long | ||
| 6.One set of tools with tool box | 6. Inverter blade speed | ||
| 7.Roller table 1M long | |||
