Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Forging Machinery > Pneumatic Hammer

Pneumatic Hammer

Name: Pneumatic Hammer
Brand: TIMAC
SKU: 140797704
Availability: InStock

US$ 900 - 19,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

TIMAC

Model Number:

AH-150, AH-250, AH-400, AH-560, AH-750, AH-1000, AH-2000

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TIMAC

Model Number AH-150, AH-250, AH-400, AH-560, AH-750, AH-1000, AH-2000

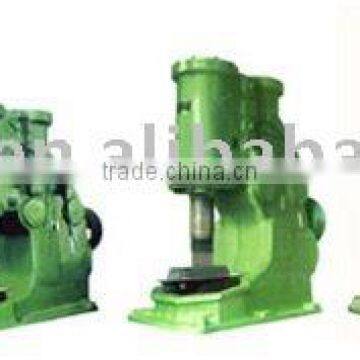

Two Piece Pneumatic Forging Hammer

Applications:

This pneumatic forging hammer is widely used for general Forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forging in bolster dies.

Features:

*Ready operation: economic and convenient

*Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions—idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired

*A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.

The main technical parameter two pieces pneumatic forging hammer:

Model		AH-150	AH-250	AH-400	AH-560	AH-750	AH-1000	AH-2000
Weight of falling parts (kg) )		150	250	400	560	750	1000	2000
Maximum hit energy(kj)		2.5	5.6	9.5	13.7	19	27	54
Hit number(min-1)		180	140	120	115	105	95	80
Heigh of working area (mm)		370	450	530	600	670	800	1000
Tup axis to frame front (mm)		350	420	520	550	750	770	950
Dimension of top die surface(L x W) (mm)		200x85	220x100	250x120	300x140	330x160	365x180	400x300
Dimension of bottom die surface(L x W) (mm)		200x85	220x100	250x120	300x140	330x160	365x180	400x300
Forges	Square(mmxmm)	130x130	145x145	220x220	270x270	270x270	290x290	350x350
Forges	Round(mm)	Φ145	Φ175	Φ240	Φ280	Φ300	Φ320	Φ400
Motor	Type	Y180M-4-B3	Y180L-4-B3	Y200L-4-B3	Y280S-6-B3	Y280M-6-B3	Y315S-6-B3	Y315L2-6-B3
Motor	Power(kw)	18.5	22	30	45	55	75	132
Weight	Hammer(kg)	3260	5000	8000	9800	17000	20000	48000
Weight	Anvil block(kg)	1500	2500	4800	6720	9000	13000	24000
Outside Size		2390x1085x2150	2639x1155x2540	2785x1400x2884	3464x1500x3157	3905x1370x3175	4125x1500x3770	4200x2300x4390
