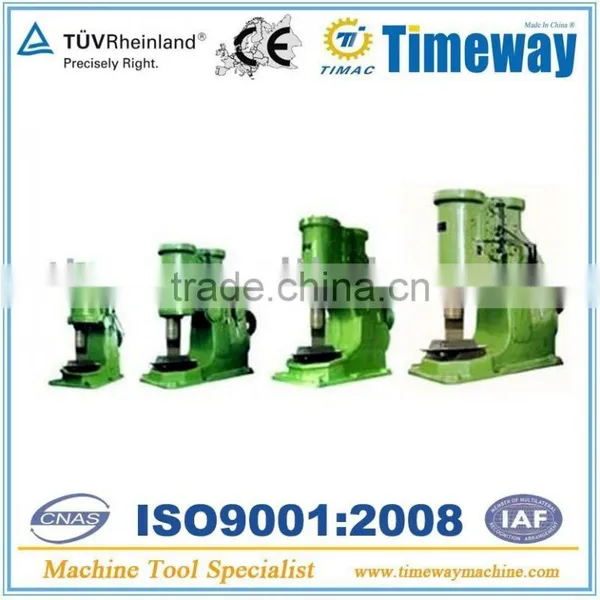

Pneumatic Forging Hammer / Air Hammer
- 100 Set / Sets per Month
- China port
- T/T
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Brand Name: | TIMAC | Model Number: | AH-250 AH-400 AH-560 AH-750 AH-1000 AH-2000 |
Voltage: | as customer's request | Power(W): | 22kw | Dimension(L*W*H): | 2639*1155 *2540mm |
Weight: | depends on different models | Certification: | CE & ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pneumatic Forging Hammer / Air Hammer
Application:
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features :
1. Ready operation is economic and convenient.
2. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions idle run, top setting,
pressing down, single blow, light or full series blow can be obtained as desired.
3. A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the
pump to get the cylinders being lubricated beforehand.
Parameter :
Specification | AH-250 | AH-400 | AH-560 | AH-750 | AH-1000 | AH-2000 | |
Weight of falling parts (kg) ) | 250 | 400 | 560 | 750 | 1000 | 2000 | |
Maximum hit energy(kj) | 5.6 | 9.5 | 13.7 | 19 | 27 | 54 | |
Hit number(min-1) | 140 | 120 | 115 | 105 | 95 | 80 | |
Heigh of working area (mm) | 450 | 530 | 600 | 670 | 800 | 1000 | |
Tup axis to frame front (mm) | 420 | 520 | 550 | 750 | 770 | 950 | |
Dimension of top die surface(L×W) (mm) | 220×100 | 250×120 | 300×140 | 330×160 | 365×180 | 400×300 | |
Dimension of bottom die surface(L×W) (mm) | 220×100 | 250×120 | 300×140 | 330×160 | 365×180 | 400×300 | |
Forges | Square(mmxmm) | 145×145 | 220×220 | 270×270 | 270×270 | 290×290 | 350×350 |
Round(mm) | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | Φ400 | |
Motor | Type | Y180L-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 | Y315L2-6-B3 |
Power(kw) | 22 | 30 | 45 | 55 | 75 | 132 | |
Weight | Hammer(kg) | 5000 | 8000 | 9800 | 17000 | 20000 | 48000 |
Anvil block(kg) | 2500 | 4800 | 6720 | 9000 | 13000 | 24000 | |
Outside Size(mm) | 2639×1155 ×2540 | 2785×1400 ×2884 | 3464×1500 ×3157 | 3905×1370 ×3175 | 4125×1500 ×3770 | 4200×2300 ×4390 |
