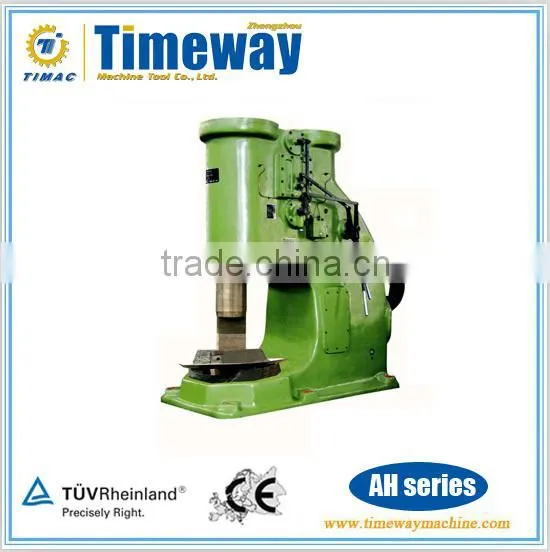

Pneumatic Forging Hammer / Small Air Hammer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Numberical Control Electric Screw Press for Dies or MouldsUS$ 10,000 - 100,000MOQ: 1 Set -
Friction Screw Press(Manual Double Disc Forging Press)US$ 8,000 - 20,000MOQ: 1 Set
-
Pneumatic Friction Screw Forging PressUS$ 8,000 - 50,000MOQ: 1 Set
-
HYDRAULIC PRESSNegotiableMOQ: 1 Set
-
Hydraulic Press TY-06 for FabricationNegotiableMOQ: 3 Sets
Condition
New
Type
Horizontal
CNC or Not
Normal
Automatic Grade
Manual
Brand Name
TIMAC
Model Number
AH-15,AH-25,AH-40,AH-55,AH-75,AH-150
Voltage
as customer's request
Dimension(L*W*H)
700x450x980mm
Weight
depends on different models
Certification
CE & ISO
After-sales Service Provided
Engineers available to service machinery overseas
Pneumatic Forging Hammer / Small Air Hammer
Product Description
Application:
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features :
1. Ready operation is economic and convenient.
2. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions idle run, top setting,
pressing down, single blow, light or full series blow can be obtained as desired.
3. A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the
pump to get the cylinders being lubricated beforehand.
Parameter :
| Specification | AH-15 | AH-25 | AH-40 | AH-55 | AH-75 | AH-150 | |
| Weight of falling parts (kg) | 15 | 25 | 40 | 55 | 75 | 150 | |
| Maximum hit energy(kj) | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 2.5 | |
| Hit number(min-1) | 245 | 250 | 245 | 230 | 210 | 180 | |
| Heigh of working area (mm) | 160 | 240 | 245 | 270 | 297 | 370 | |
| Tup axis to frame front (mm) | 140 | 200 | 235 | 270 | 280 | 350 | |
| Forges | Square(mmxmm) | 30×30 | 40×40 | 52×52 | 60×60 | 65×65 | 130×130 |
| Round (mm) | Φ35 | Φ48 | Φ68 | Φ75 | Φ85 | Φ145 | |
| Motor | Type | Y100L1-4-B3 | Y132S1-6-B3 | Y132M1-6-B3 | Y132M2-6-B3 | Y160M-6-B3 | Y180M-4-B3 |
| Power(kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 18.5 | |
| Weight | Hammer(kg) | 270 | 720 | 710 | 1150 | 2300 | 3260 |
| Anvil block(kg) | 420 | 600 | 950 | 1500 | |||
| Overall Dimension(mm) |
700×450 ×980 |
1100×500 ×1300 |
1200×600 ×1500 |
1300×700 ×1600 |
1480×800 ×1853 |
2390×1085 ×2150 |
|
