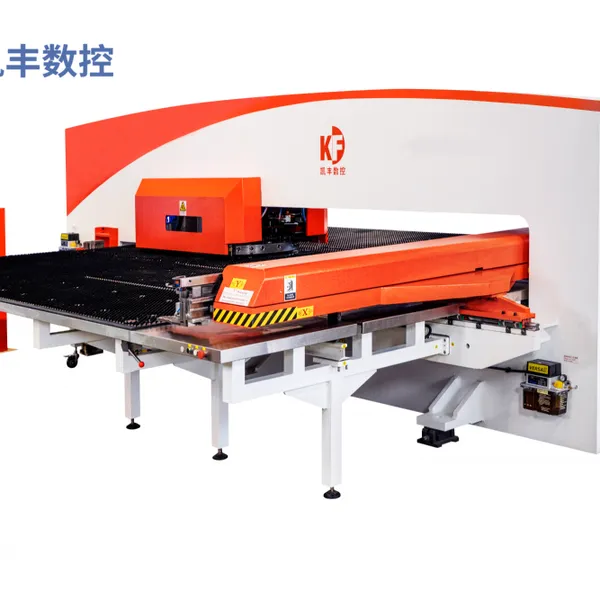

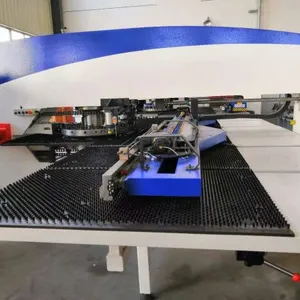

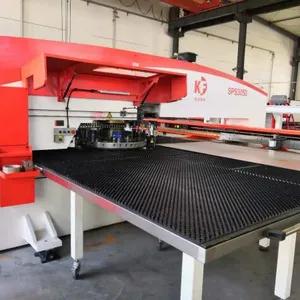

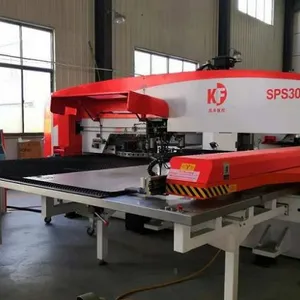

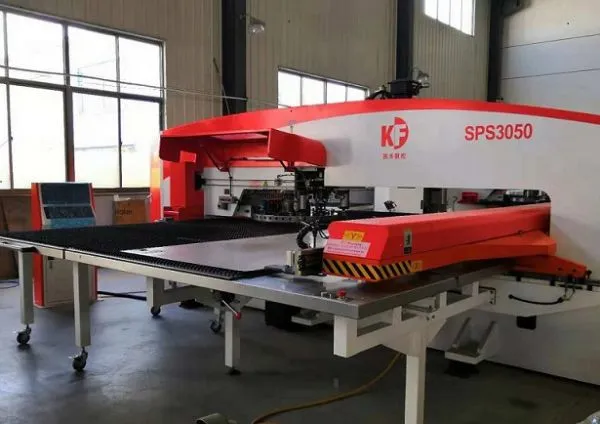

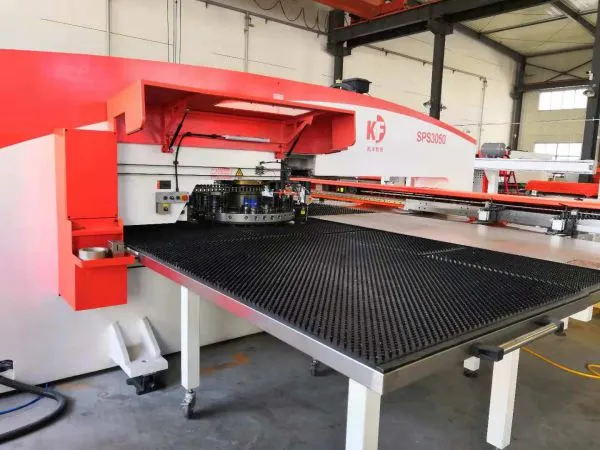

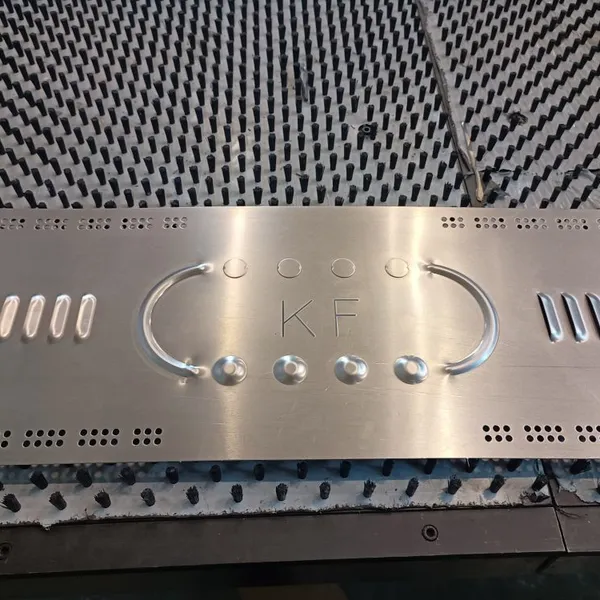

SP CNC Double Servo Turret Punch Press

Name: SP CNC Double Servo Turret Punch Press
Brand: Kaifeng
SKU: 159447901
Availability: InStock

US$ 58000 - 110000 MOQ: 1 Set

Key Specifications

Brand Name:

Kaifeng

Place of Origin:

China

Model Number:

32 52

Jinan Kaifeng CNC Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Kaifeng

Place of Origin China

Model Number 32 52

After-sales Service Provided Engineers available to service machinery overseas

Warranty 1year

Weight 14-18 Tons

Dimension(L*W*H) 4995*2736*2250(mm) 6000*5260*2500(mm)

Voltage 35KVA 30KVA 28KVA

1. Specification

No.	Specification		Unit	Value
				SPS3050	SPS5050
1.	Nominal force		KN	300	500
2.	Servo motor		Set	1	2
3.	Max. punch size		mm	F88.9
4.	Max. sheet size (one reposition)		mm	1500×5000
5.	Sheet thickness		mm	Max. sheet thickness 6mm, Carbon steel
6.	Max. sheet weight		Kg	150
7.	Punching accuracy		mm	±0.1
8.	Ram stroke		mm	32
9.	X/Y Stroke length		mm	2500/1500
10.	Punching frequency	Max. punching frequency（marking press）	min^-1	1500
11.		1mm step, 5mm punching stroke	min^-1	X600, Y550
12.		25mm step, 5mm punching stroke	min^-1	X340, Y300
13.	Max. positioning speed		m/min	X=80, Y=64
14.	Throat depth		mm	1520
15.	Turret rotation speed		r/min	30
16.	Number of tool stations		Set	32 (A16/B10/C2/D2 Index tool IT 2)
17.	Structure of tool			Internationally common long guiding tool
18.	Number of floating clamps		Set	3
19.	Re-position device			√

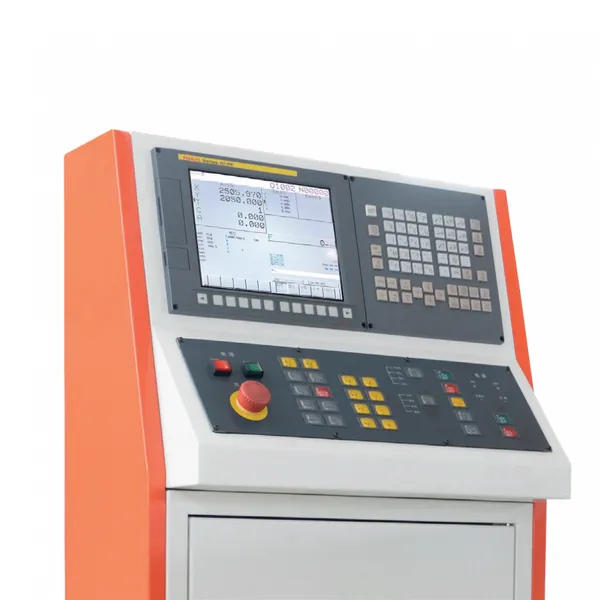

20.	CNC system			Japan FANUC company 0-i system，5-axis
21.	System configuration			32 microprocessor, internal storage 512k
22.	Communication interface			RS232C/network interface
23.	Monitor			10.4 inches color monitor
24.	Electrical energy (AC 3 phrase 380V)		KVA	35	60
25.	Air consumption		m³/min	0.02
26.	Air pressure		MPa	≥0.5
27.	Machine dimensions(approx)		mm	5000×5260×2250	5000×5260×2450
28.	Machine weight（approx）		Tons	16	18

2. List of configuration

No.	Name	Quantity	Supplier
No.	Name	Quantity	SPS3050		SPS5050
1	CNC system FANUC 0-i (Only for punch press)	1 Set	Japan FANUC company
2	AC digital servo amplifier	4 Set	Japan FANUC company
3	AC digital servo motor	4 Set	Japan FANUC company
4	Servo motor, driver	1 or 2 Set	ESTUN / Dengqi+Phase
5	Precision ball screw	2 Set	Germany Rexroth / HIWIN
6	Precision screw bearing	4 Set	Japan NSK company
7	Precision linear rolling guide rail	3 Set	HIWIN/Japan THK
8	Electronic pneumatic valve	6 Set	Japan SMC company
9	Lubrication device	1 Set	Nanjing BIJUR China
10	Cylinder	12 Set	SMC//Professional factory in China
11	Pneumatic FRL	1 Set	Taijing/ Japan SMC company
12	Approach switches	12 Set	Germany TURCK/Balluff company
13	Main electrical element	1set	Import brand
14	Main motor chiller	1 Set	Kaifeng	Tongfei, China
15	Automatic programming software	1 Set	England RADAN
